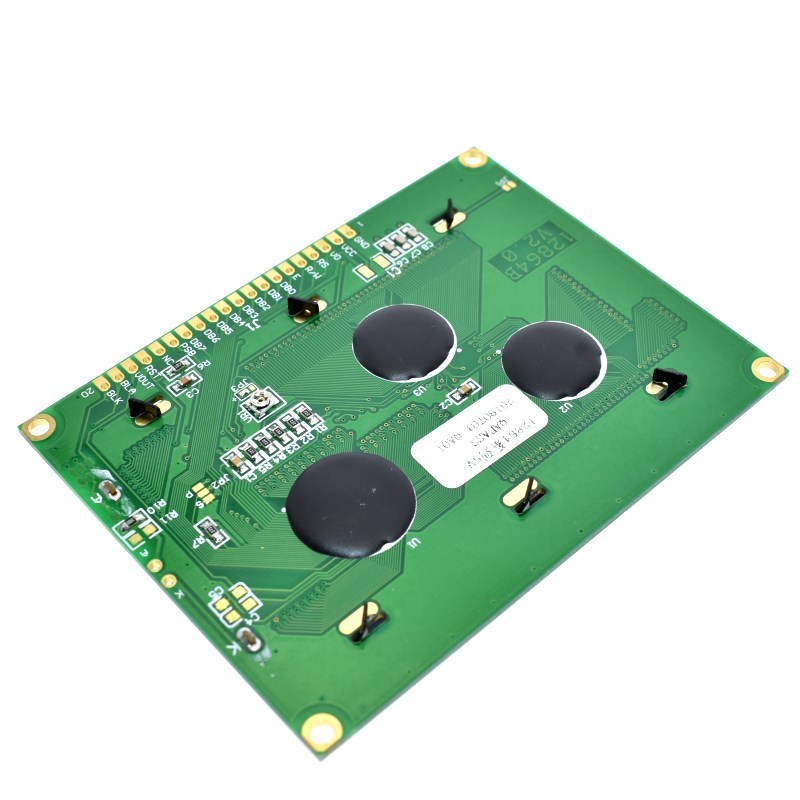

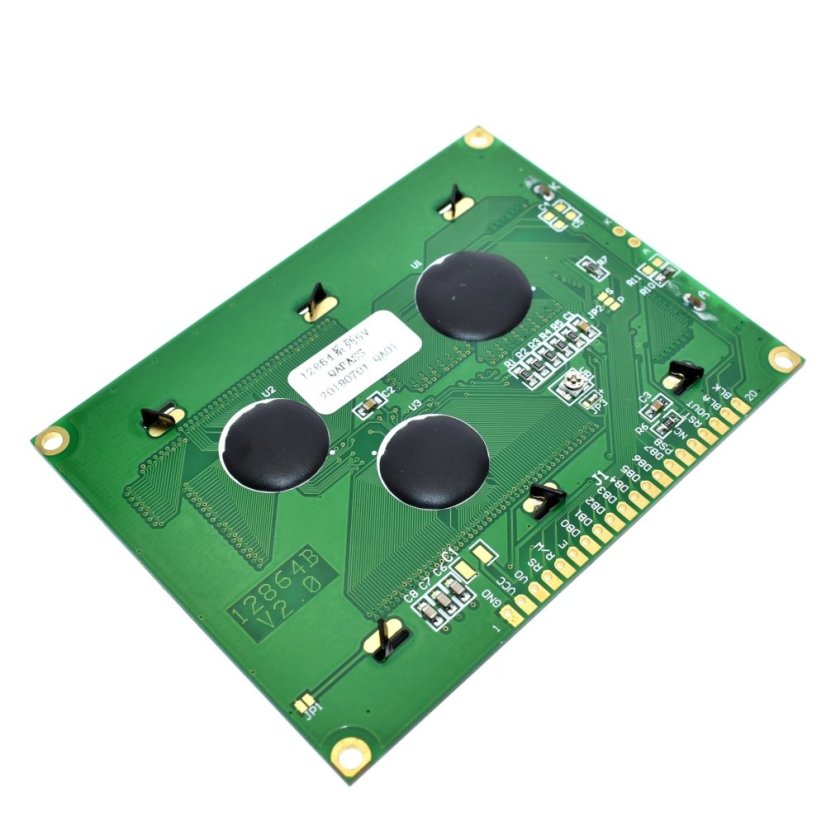

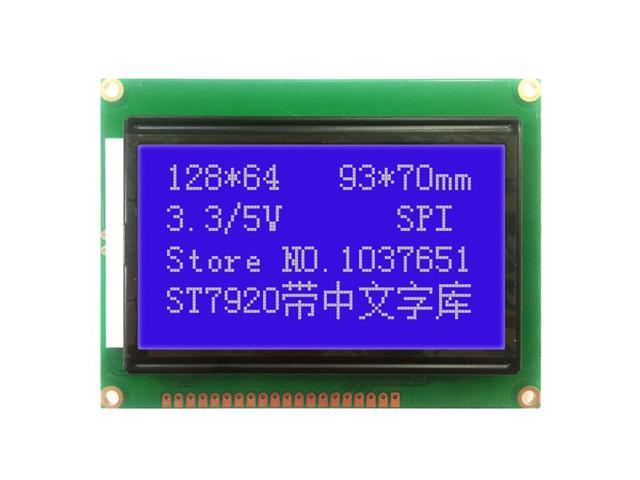

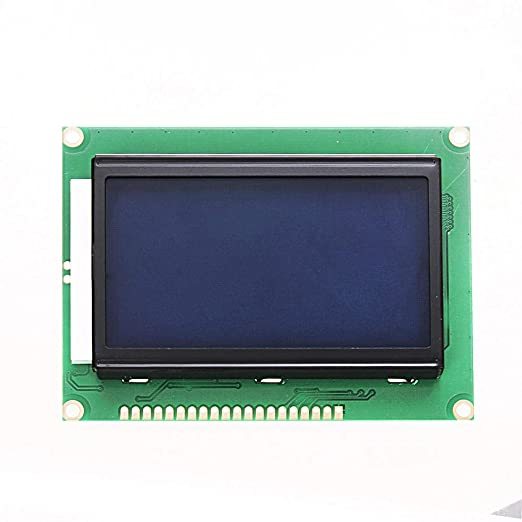

12864B 128x64 LCD Module with Blue-White Backlight
12864B 128x64 LCD Module with Blue-White Backlight
128x64 pixel LCD display with blue backlight and white lettering. This module uses the ST7920 controller with a parallel interface.
Specifications:
- Model: 12864B
- Resolution: 128x64
- Power Supply: 5V
- Logic Level: 5V
- Interface: Parallel

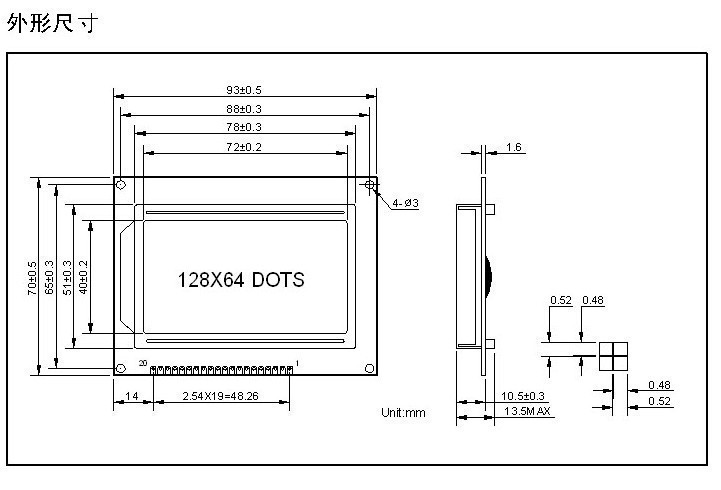

- Module Dimensions: 98x70x12mm (3.86x2.76x0.47 inches)
- Driver IC: ST7920
Package Contents:
- 1 pcs 128x64 blue LCD display
