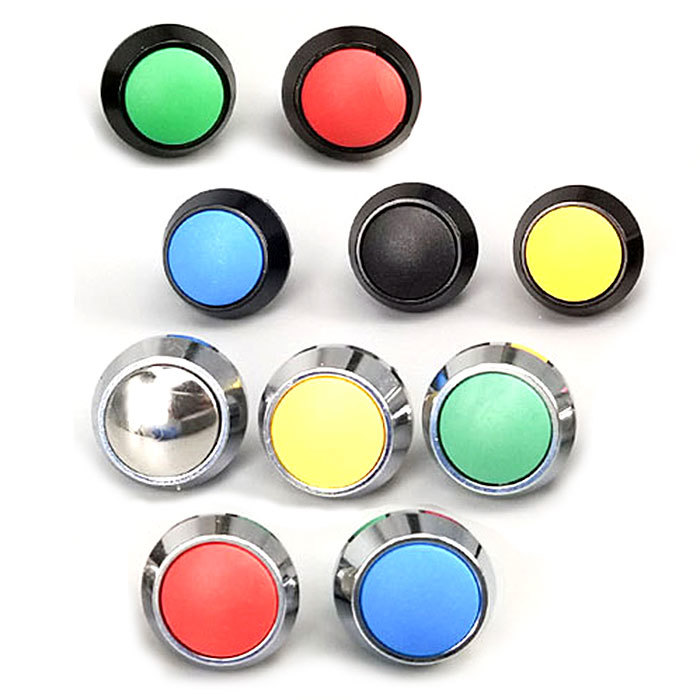

12mm, 3A, IP66, button switch – soldering - Color: RedMaterial: Aluminum

12mm, 3A, IP66, button switch – soldering - Color: RedMaterial: Aluminum


A durable 12mm button switch with 3A rating and IP66 protection, ideal for various applications. More
Manufacturer: NEVEN Product code: 13821 shipping-link
1,50 EUR incl. VAT
Specify product selection
Variant does not exist

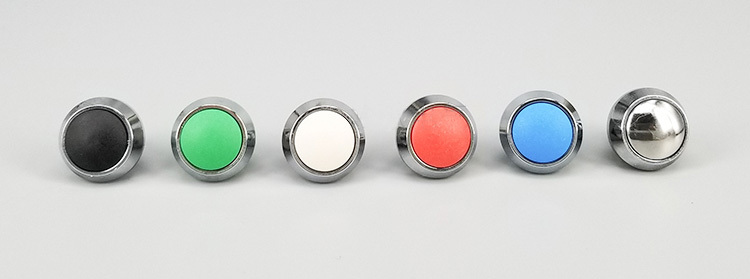

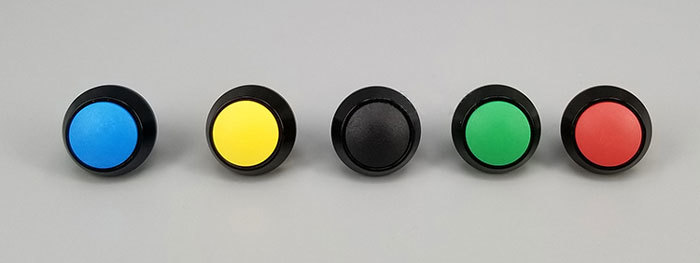

Green Red Yellow
>= 5 pieces in Stock (5 ks)
A durable 12mm button switch with 3A rating and IP66 protection, ideal for various applications. More
Manufacturer: NEVEN Product code: 13821 shipping-link

12mm, 3A, IP66 Button Switch

Specifications:

  • Name: 12mm, 2 contacts, no LED
  • Mounting Hole Diameter: 12mm
  • Control Type: Non-locking
  • Contact Type: 1 Normally Open (NO)
  • Button Material: Plastic/Stainless Steel
  • Button Body Material: Nickel-plated Brass (Silver)/Alumina (Black)
  • Contact Material: Silver Alloy

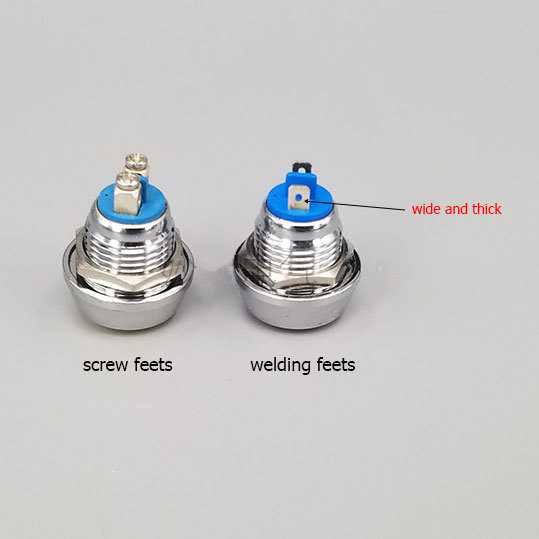

  • Connection Method: Solder contacts/Screws
  • Protection Degree: IP66 IK09
  • Operating Voltage: 3~220V
  • Max Current: 2A
  • Operating Temperature: -30℃~55℃
  • Contact Resistance: ≤50Ω
  • Insulation Resistance: ≥1000ΜΩ

12mm, 3A, IP66 Button Switch12mm, 3A, IP66 Button Switch

12mm, 3A, IP66 Button Switch

12mm, 3A, IP66 Button Switch

12mm, 3A, IP66 Button Switch
