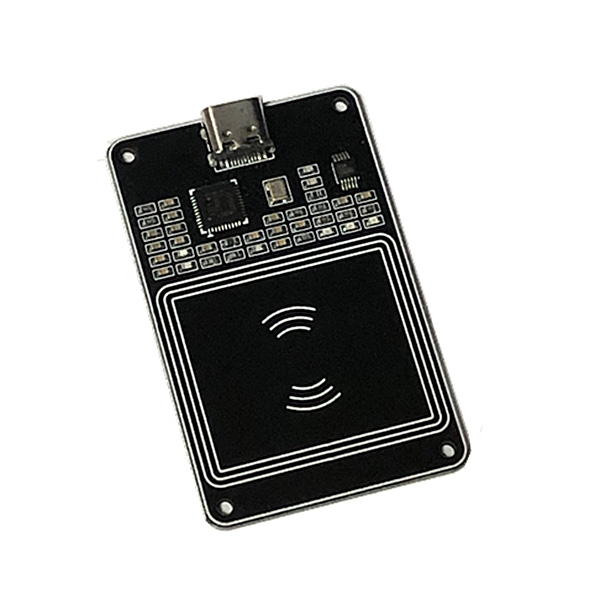

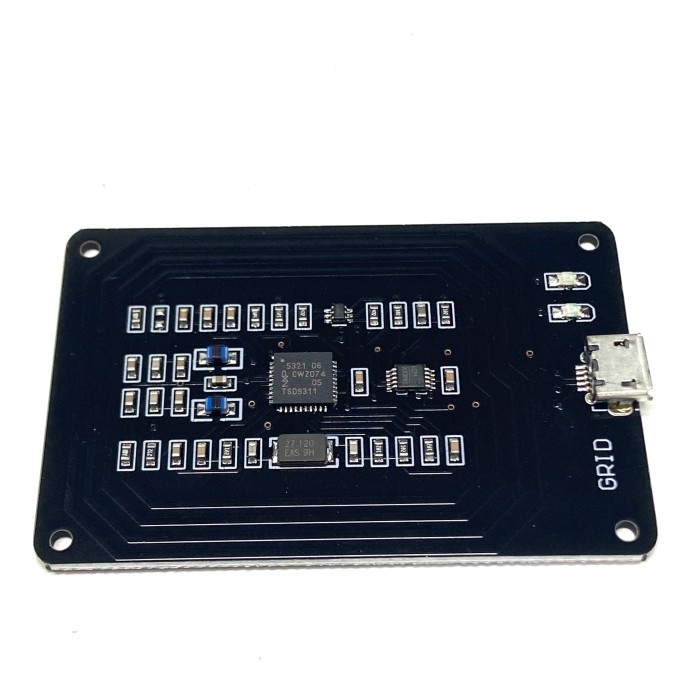

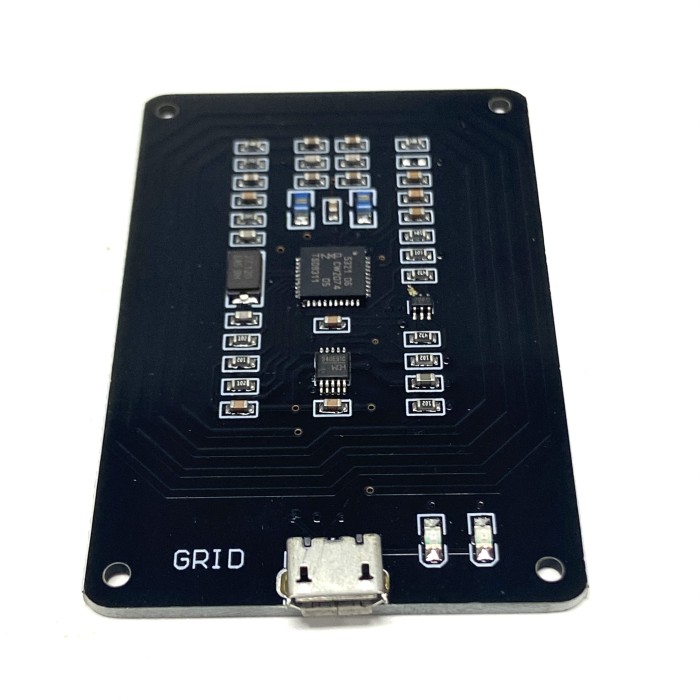

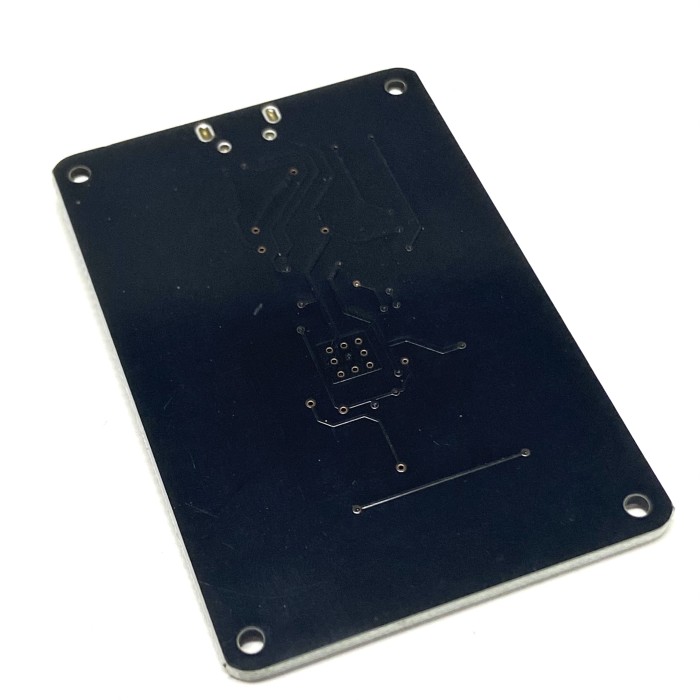

RFID/NFC Mini PN532 Serial Port Module – CUID Tag & Card

The RFID/NFC Mini PN532 Serial Port Module is designed to enhance your RFID functionality for copying, accessing, and replicating different card types. The included CUID Tag and Card with this module are rewritable, allowing you to reuse them continuously. The Mini PN532 Serial Port Module supports a wide range of card types, including M1 cards, UID cards, CUID cards, FUID cards, and UFUID cards. No drivers are needed thanks to the CH340 serial-to-USB chip. Once connected to USB, the board appears as virtual COM port to which your software can connect.

Including an RFID tag and card, this Mini PN532 Serial Port Module kit gives you the chance to explore the world of RFID and NFC. Track your inventory and manage all the raw data with a microcontroller. Create interactive exhibits or use an RFID card to open your gate. The endless possibilities are ready for you.

Specification:

• Model: Mini PN532 (GRID) black
• Chip: PN352+CH340
• Model Type: RFID/NFC Serial Port Module
• Connector: micro USB / USB-C
• Interface: virtual COM port
• Platform Compatibility: Raspberry Pi, Windows, Linux
• Supported Cards: M1 | UID | CUID | FUID | UFUID
• Frequency: 13.56MHz
• Power Supply Voltage" 3.3V to 5.5V
• Operating Current
  – Write Mode: 120mA
  – Reading Mode: 120mA
• Dimenssions: 40x60mm

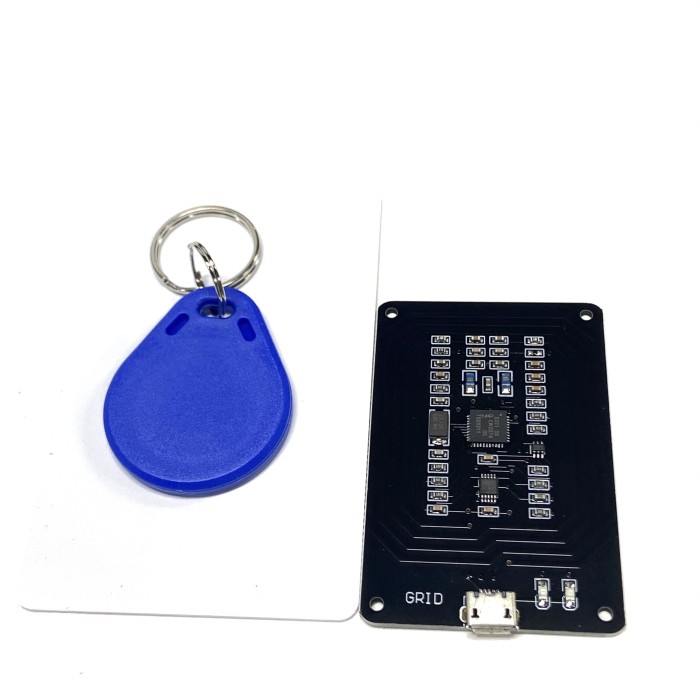

Package content of the micro USB variant:

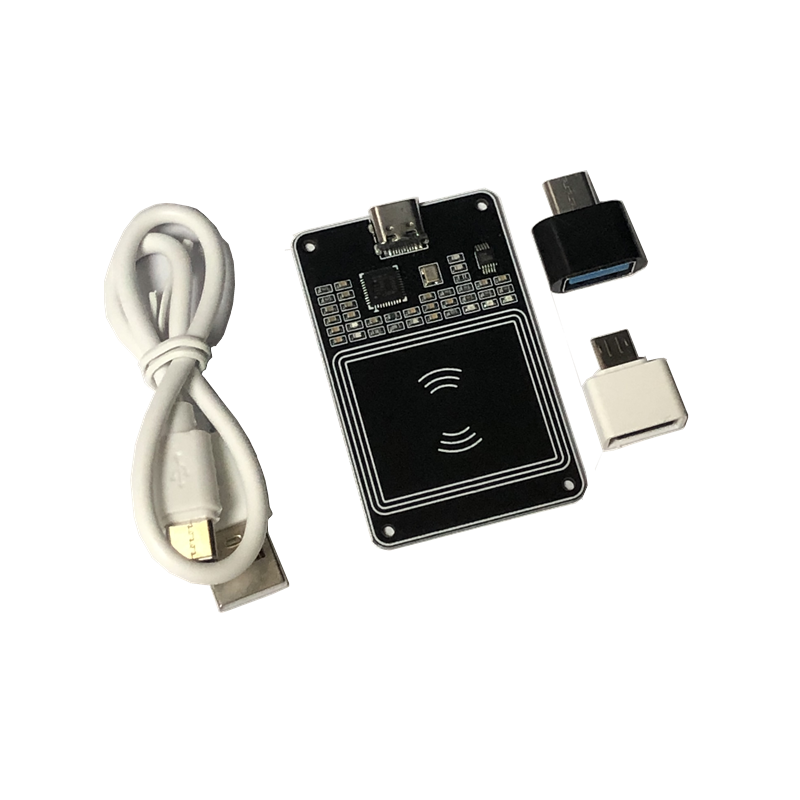

Package content of the USB-C variant:
