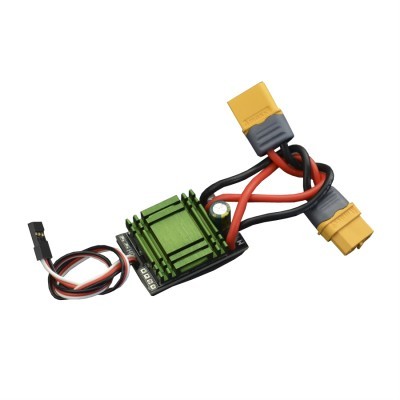

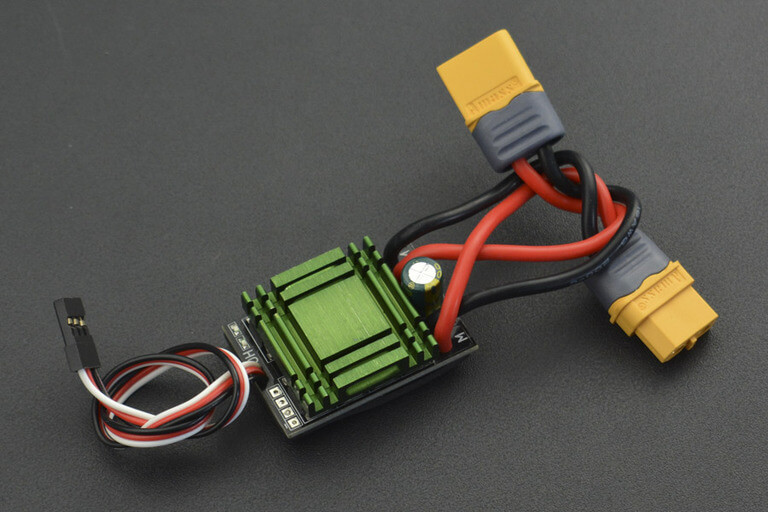

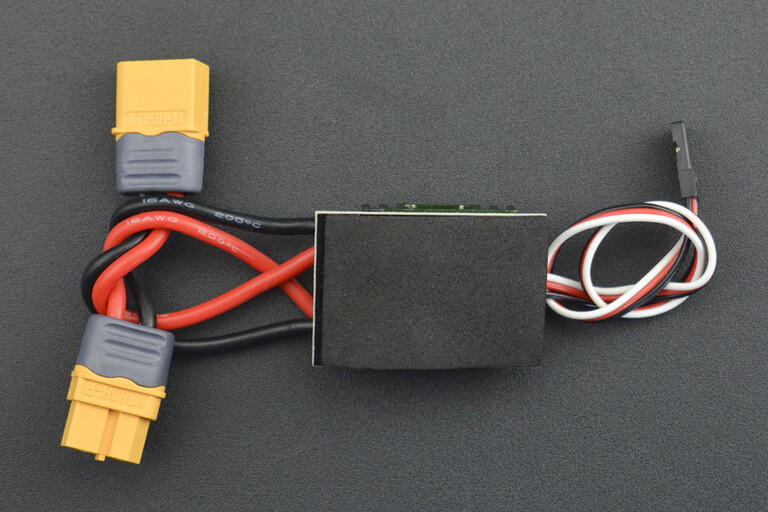

The Electronic Speed Controller (ESC) is categorized into brushless and brushed ESCs based on various types of motors. They are widely used in remote control systems to regulate motor speed. This model is a bidirectional brushed ESC without brake, supporting continuous current up to 20A and peak current up to 320A. It is controlled with a PPM signal and can handle forward and reverse motor operations. It is compatible with remote controls from many well-known brands available on the market.

NOTE:
Please thoroughly read the product specifications before use and avoid overload or exceeding the recommended specifications.

1. Signal Status: Upon powering up the ESC, the indicator light will blink once. When the remote control returns to the neutral position, the indicator light will blink again. If the signal is lost, the light will start blinking rapidly.
2. How to calibrate it?

Connect the ESC signal cable to the corresponding channel on the receiver, turn on the remote control, move the channel joystick to the maximum position, then turn on the ESC. The light will blink, after a few seconds it will blink twice, then move the joystick to the neutral position and the light will blink three times - calibration is complete!

SPECIFICATIONS

• Model: DRI0047
• Type: Bidirectional ESC
• Continuous Current: 20A
• Voltage Range: 4.8V-8.4V DC (Lithium battery 2S)
• Peak Current: 320A forward, 320A reverse

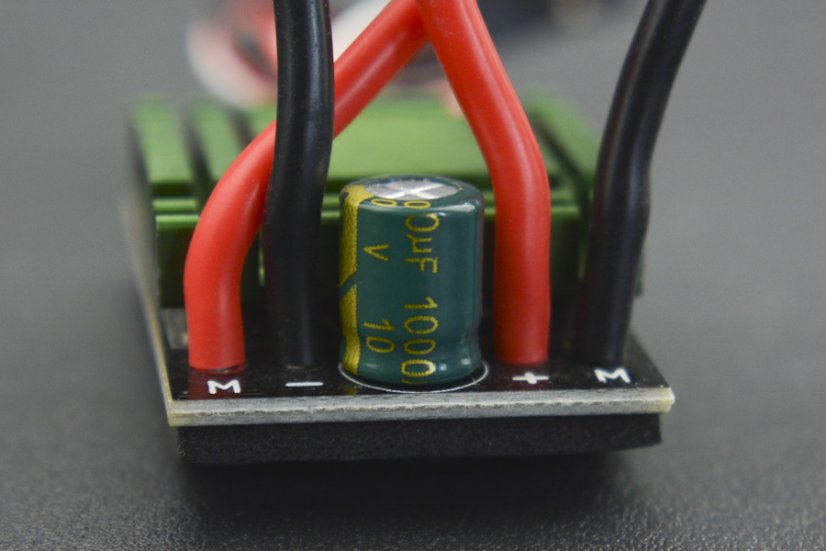

• Output Wires: Voltage line and motor line 16AWG-100mm
• Control Signal Type: PPM
• Power Connector: XT60
• Motor Connector: 4mm Banana Plug
• Motor: Brushed motor (260/370/380/540)

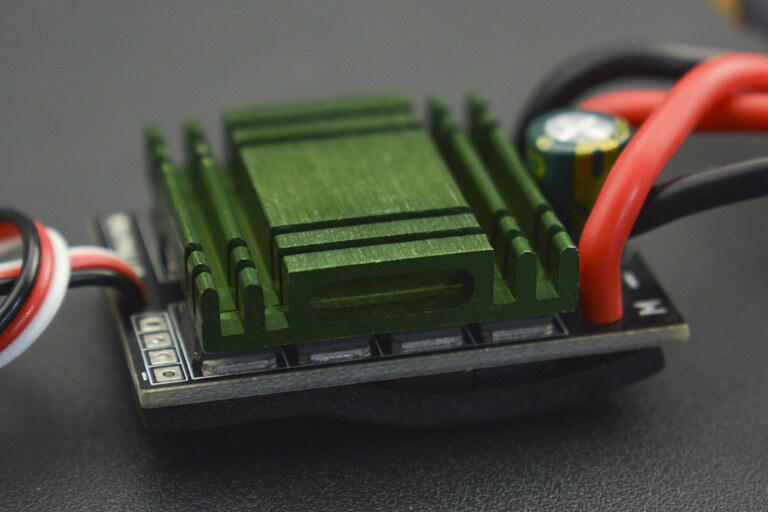

• Dimensions: L42mm, W28mm, H15mm (including heatsink)
• Weight: 30g

Package includes:

1x 20A Bidirectional ESC speed controller
