2x12A 12V-24V Dual DC Motor Driver H-Bridge L298N BTS7960 PWM Input

Dual DC motor driver with H-Bridge for 12V-24V applications, featuring L298N and BTS7960 components. More

Manufacturer: NEVEN Product code: 10828 Shipping and payment

25,10 EUR incl. VAT

Dual DC motor driver with H-Bridge for 12V-24V applications, featuring L298N and BTS7960 components. More

Manufacturer: NEVEN Product code: 10828 Shipping and payment

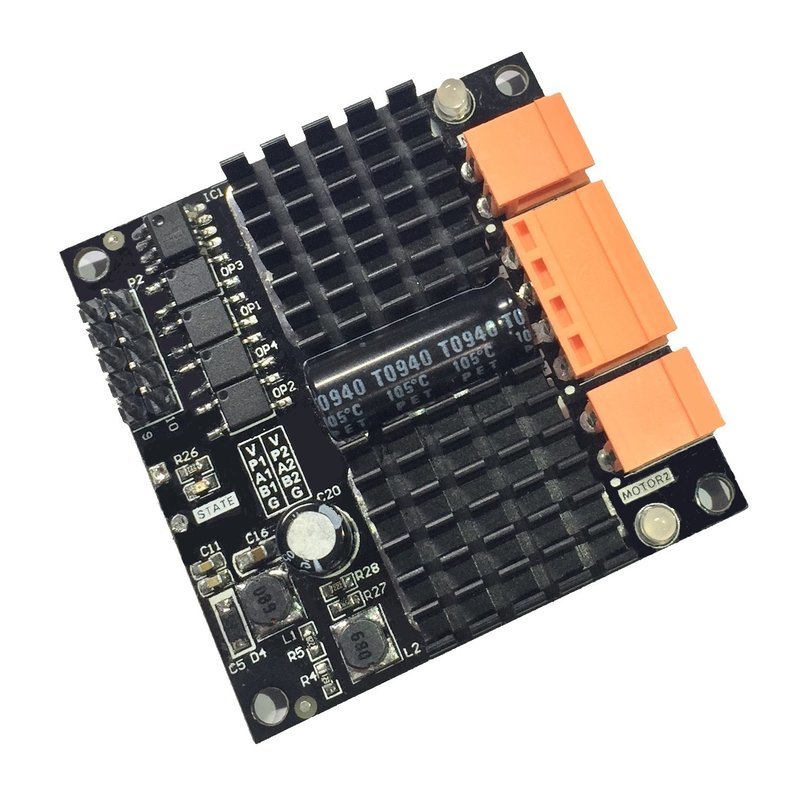

2x12A 12V-24V Dual DC Motor Driver H-Bridge Module L298N BTS7960 PWM Input

Features:

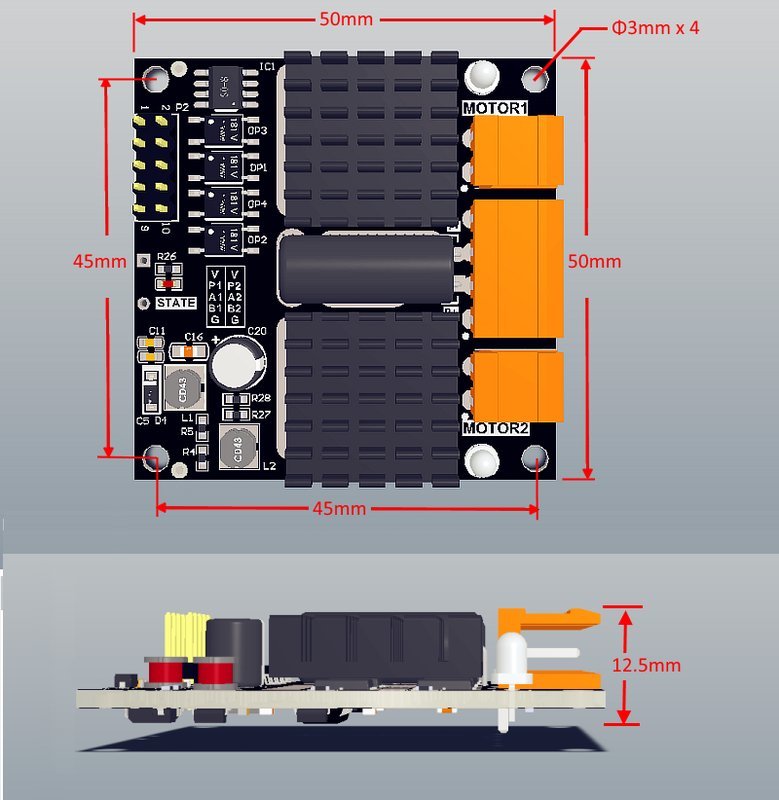

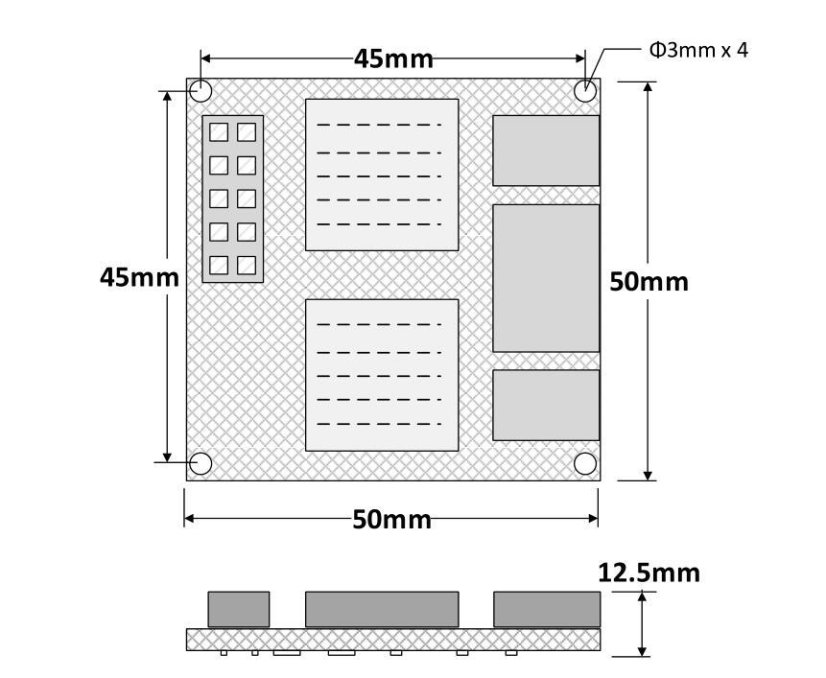

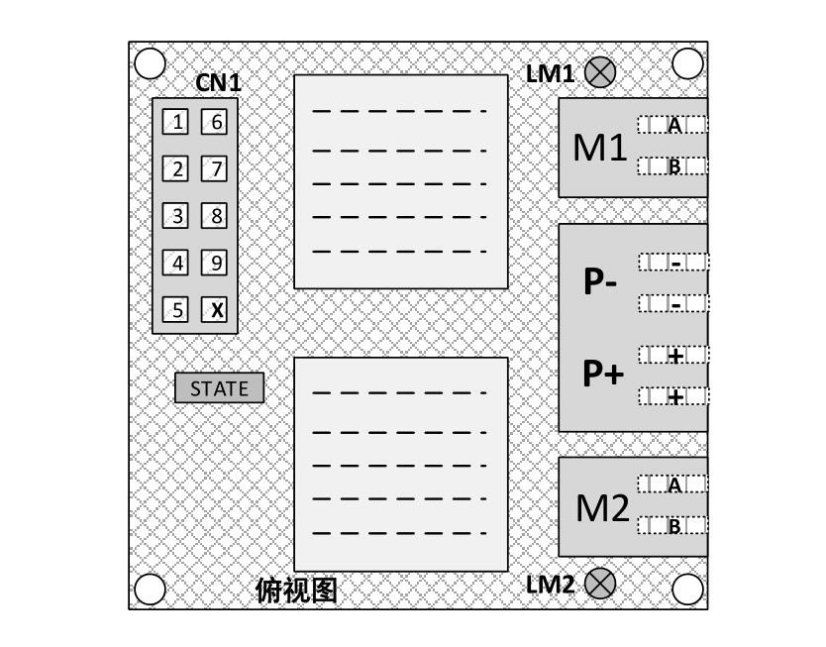

Compact dimensions: 50mm x 50mm x 12.5mm

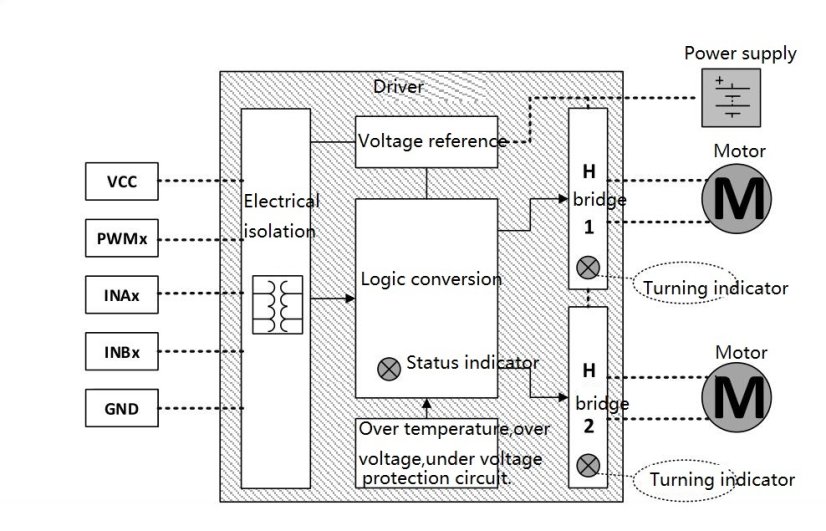

Built-in overvoltage, undervoltage, and overheat protection

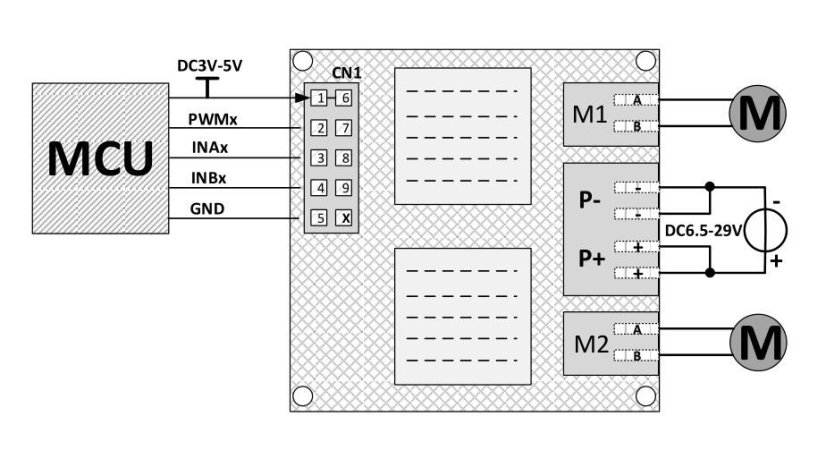

All control signals are electrically isolated and fully compatible with 3-5V voltage
High-speed PWM isolated input, isolated bandwidth >50MHz

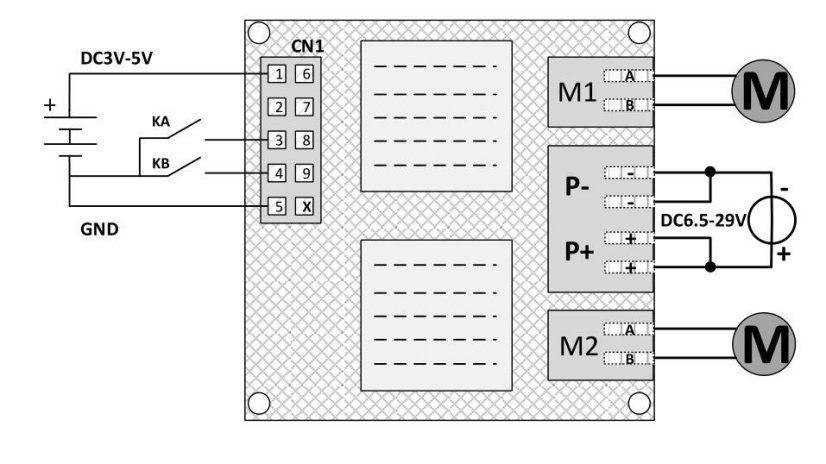

Supports fully functional input, detachable from MCU, direct control of external switches, end switches in series
Operating voltage for driver mechanism: 6.5-28V, supports brushed DC motors rated at 7-24V
Can drive DC motors with a maximum power of 300W.

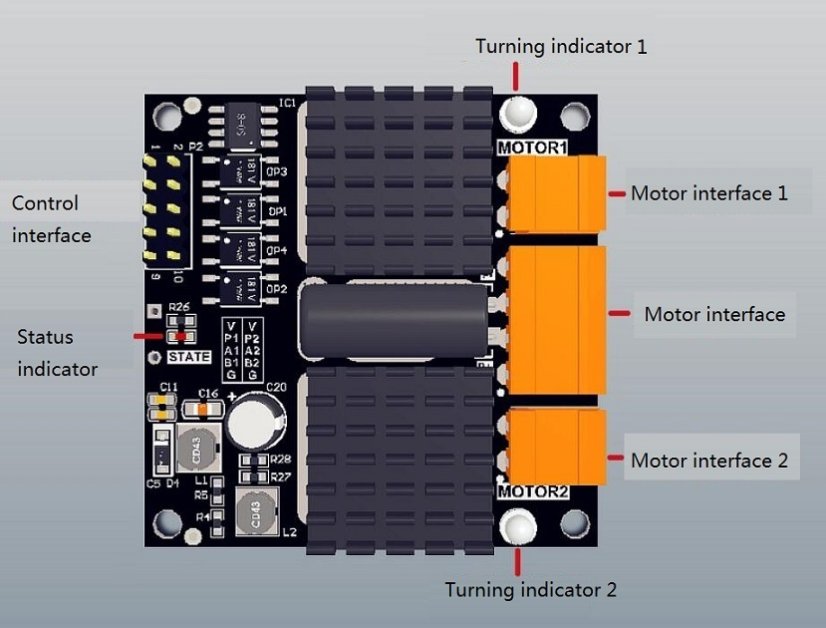

Two-color indicator light for each channel to indicate motor control
Application areas: Automated robots, manufacturing equipment, scientific research, and electronic competitions.

Specifications:

Operating Parameters
Parameter	Status	Min.	Average	Max.	Unit
Supply Voltage VP		6.5		28	V
Overvoltage Protection Value			28.		V
Undervoltage Protection Value			6.3		V
Supply Current IP	Two terminal connection			24	A
Single-channel Continuous Output Current Imc	VP=24V Resistive Load			12	A
Single-channel Peak Output Current Imp	VP=24V t = 100ms			70	A
Single-channel Peak Output Current Imp	VP=24V t = 10us			200	A
Logical Input Voltage Vin	Same as logic signal	3		5.5	V
Logical Input Current Iin	VCC=5V		15		A
PWM Input Frequency			18	60	kHz
Minimum PWM Pulse Width	Positive and negative pulse		2		μS
Overheat Protection	Sensor placement	85		95	℃
Operating Temperature		-25		85	℃

Package includes:

2x12A 12V-24V Dual DC Motor Driver H-Bridge L298N BTS7960 PWM Input
