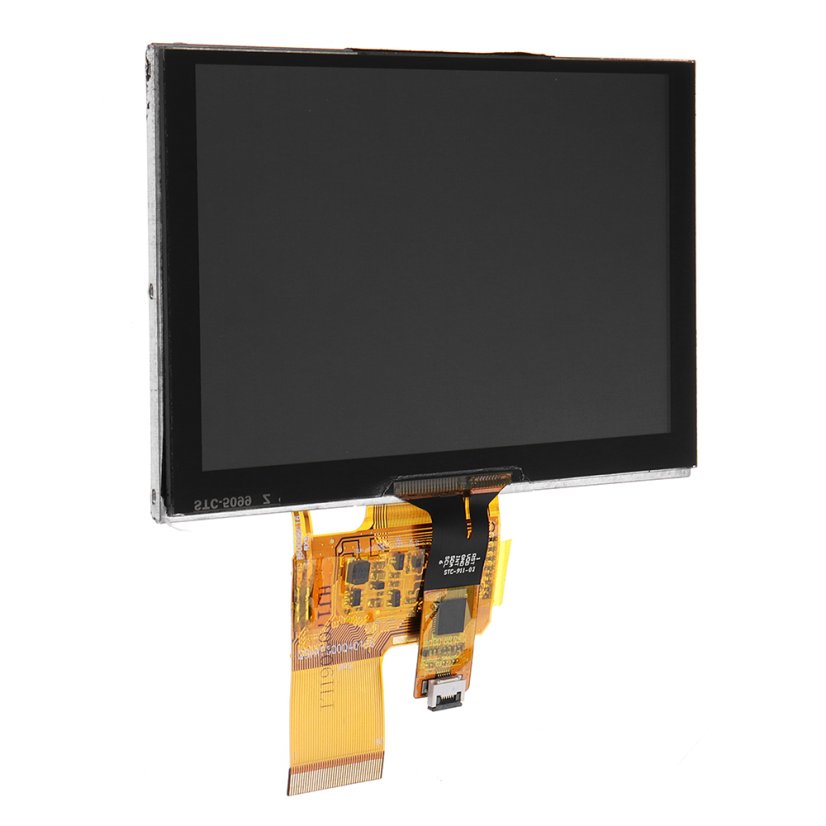

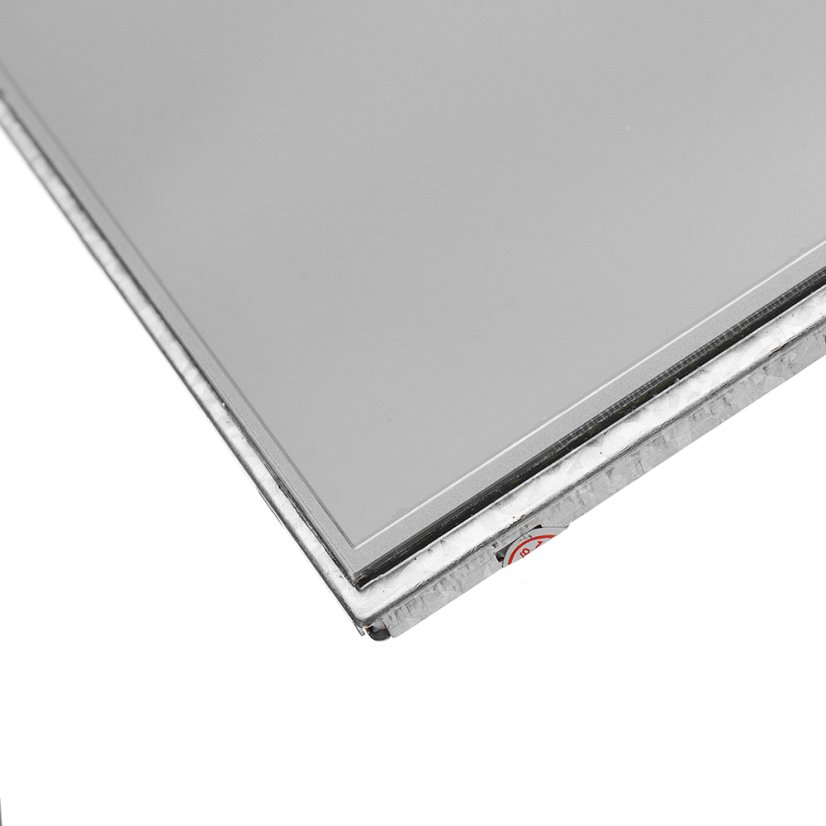

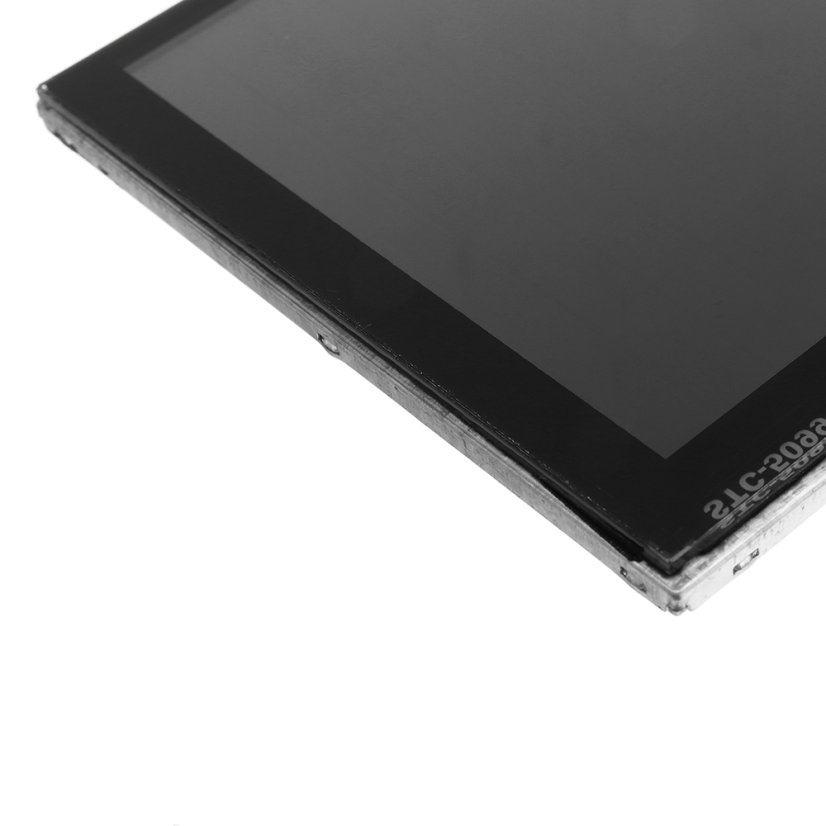

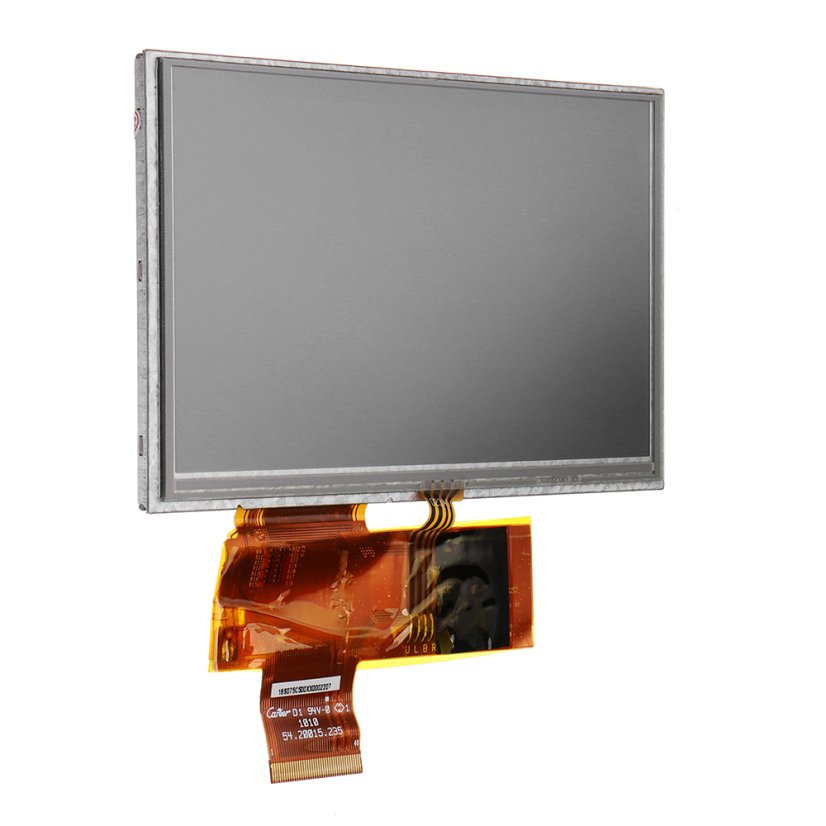

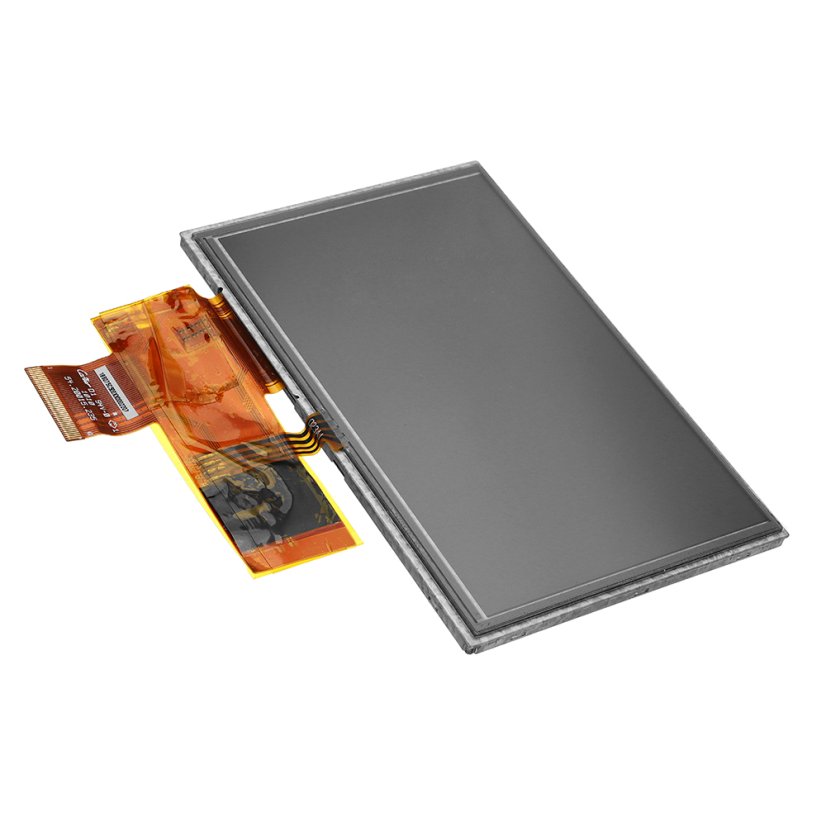

5" TFT LCD Display 800x480 40pin with Touch Panel - Touch technology: RTP
5" TFT LCD Display 800x480 40pin with Touch Panel - Touch technology: RTP
Perfect replacement for AT070TN90 V.1/AT070TN92 V.X/7DD1+1 FPC. More
Product code: 11460
Shipping and payment
28 EUR
incl. VAT
Perfect replacement for AT070TN90 V.1/AT070TN92 V.X/7DD1+1 FPC. More
5" TFT LCD display 800x480 40pin with capacitive or resistive touch panel
Perfect replacement for AT070TN90 V.1/AT070TN92 V.X/7DD1+1 FPC
Display specifications:
| H-B050L-12C | |
| TFT | |
| graphic | |
| 5" | |
| 800x480 | |
| 6:9 | |
| Signal standard | LVDS 24bit RGB |
| 40pin FPC cable | |
| Yes | |
| LED | |
| 500:1 | |
| 350cd | |
| 70 / 70 / 50 / 70 (L/R/U/D) | |
| Operating voltage (logic): | 3.1 - 3.5V |
| -30...80°C | |
| 110x66mm | |
| 120x76x3.5mm | |
| -20...70°C |
Capacitive touch panel specifications - CTP:
| STC-5099 P | |
| 5" | |
| Touch panel technology | multitouch |
| Simultaneous touch support | 5 |
| Surface hardness resistance | 3 |
| Transparency rate: | > 80% |
| Operating pressure: | 50-100g |
| 165x99x2mm |
Resistive touch panel specifications - RTP:
| CSDL 5002 16 C6 | |
| Touch panel type: | resistive with 4 wires |
| 5" | |
| Transparency rate: | > 80% |
| Operating pressure: | 50-100g |
| 117x70x1mm |
