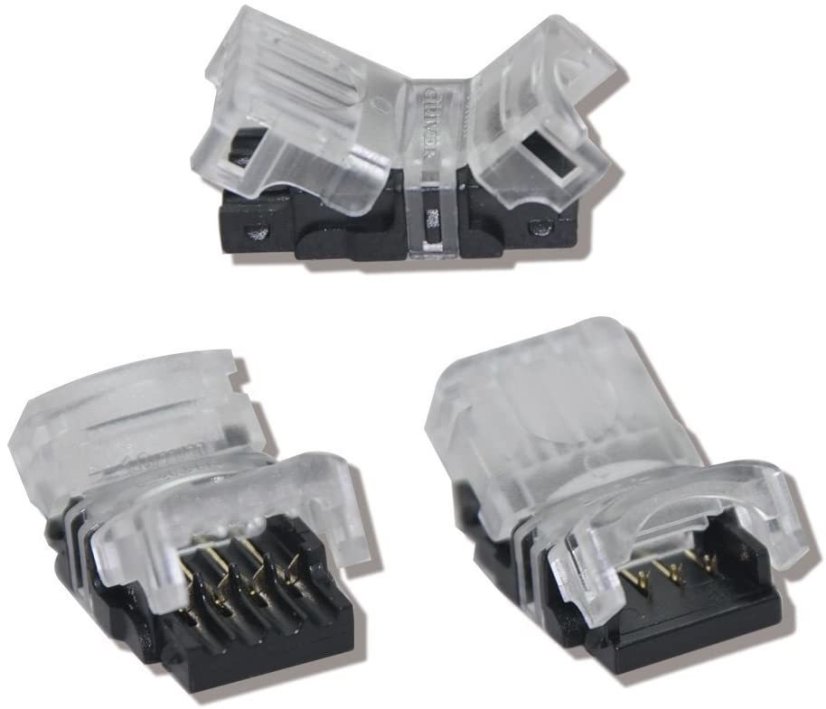

50pcs 4-Pin Connector for 10mm LED RGB Strip 5050

4-Pin Connector/Joint for 10mm LED RGB Strip 5050 - 50pcs

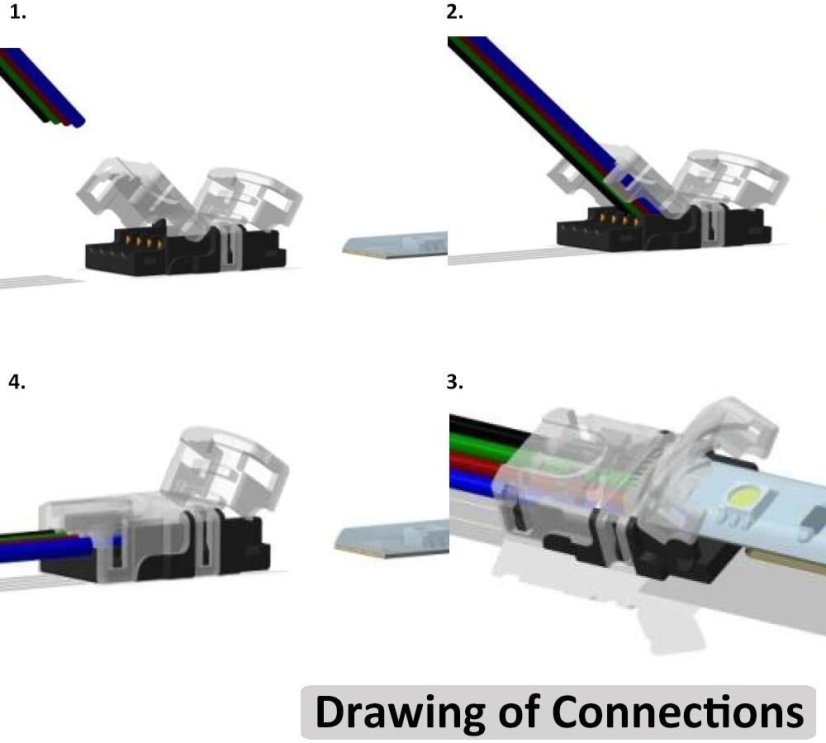

Connector for joining the epoxy LED RGB strip 5050 during extension. Secure connection using a clip.

Specifications:

• Model:

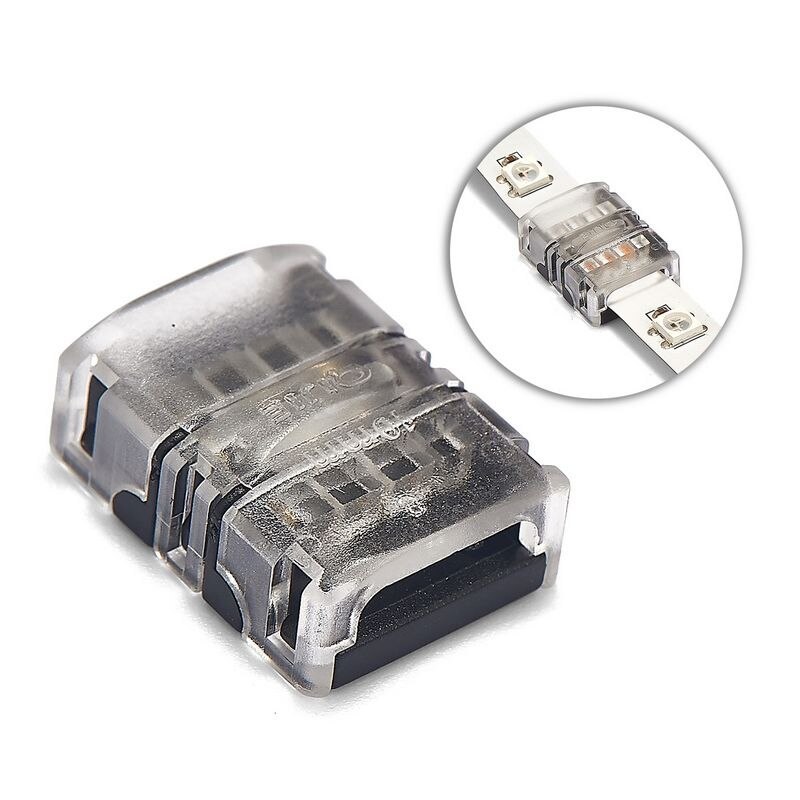

• Strip-to-strip - QJ-SE-N10BB-4
• Strip-to-cable - SE-N10XB-4
• 100% brand new LED Strip Connectors

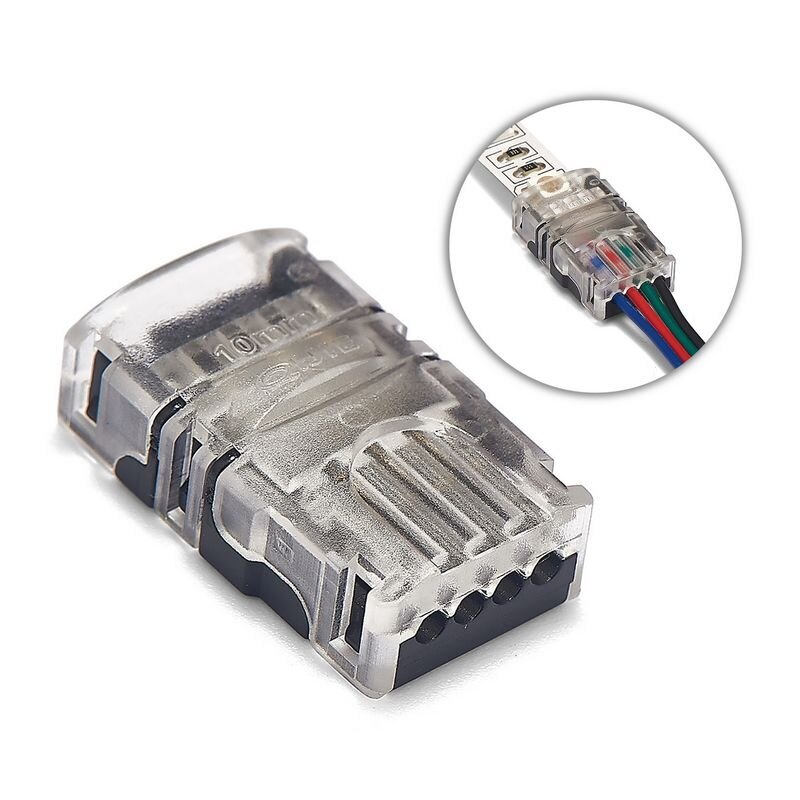

• Strip to wires connection box
• Easy installation, no soldering required for reconnecting LED strip and wires
• Connector type: 10mm/4 pin
• LED Type: bare PCB/non-waterproof
• Housing material: flame-retardant PC
• Contact material: copper
• Rated voltage (V): 0-36V
• Rated current (A): 5A
• Suitable wire diameter (mm²): 0.35mm²/0.5mm²/0.75mm²
• Suitable wire diameter (AWG): 22AWG/20AWG/18AWG
• Suitable cable OD (mm²): Φ1.5mm-2.1mm
• Flame class: UL-94-V0
• Working temperature: -20℃ - 60℃
• Water resistance: IP20

Package contents:

50x 4-pin connectors
