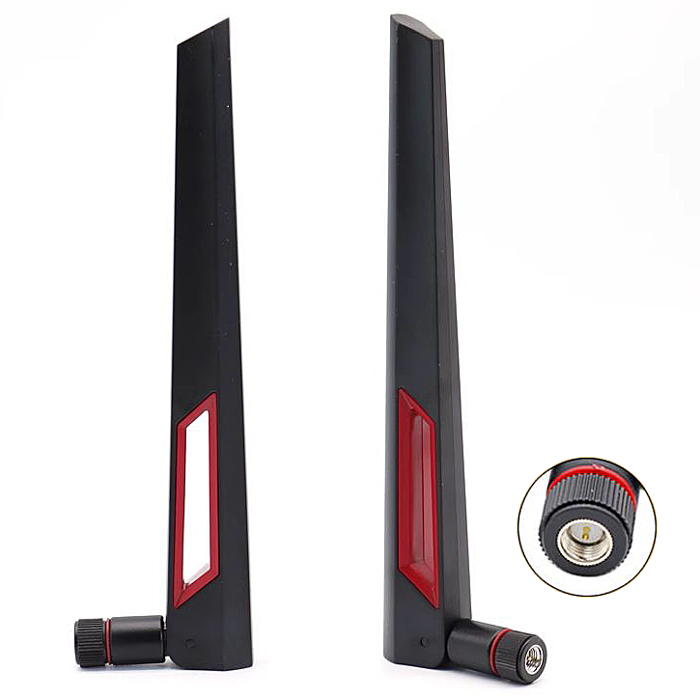

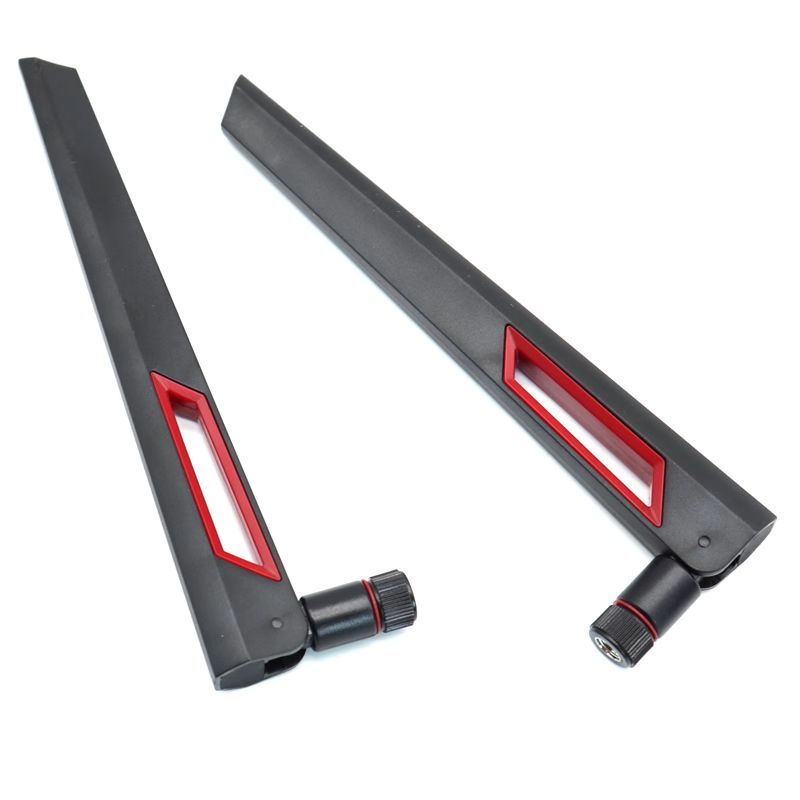

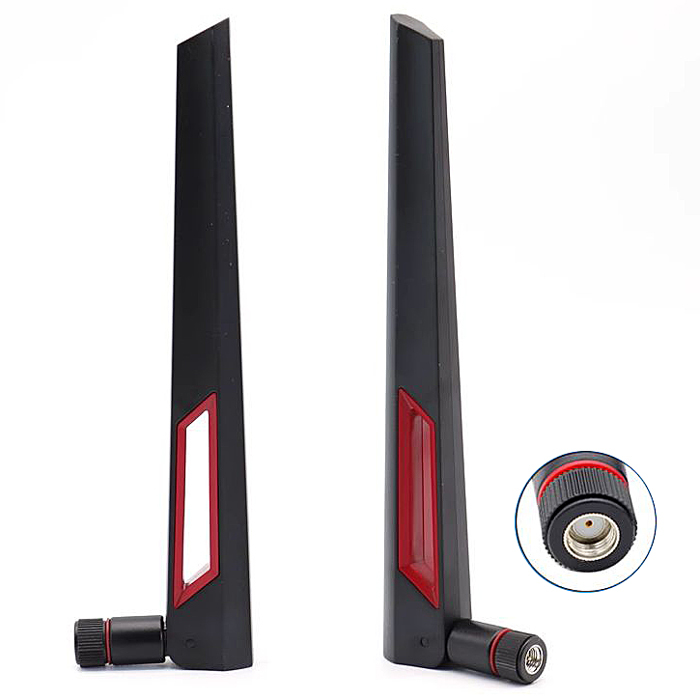

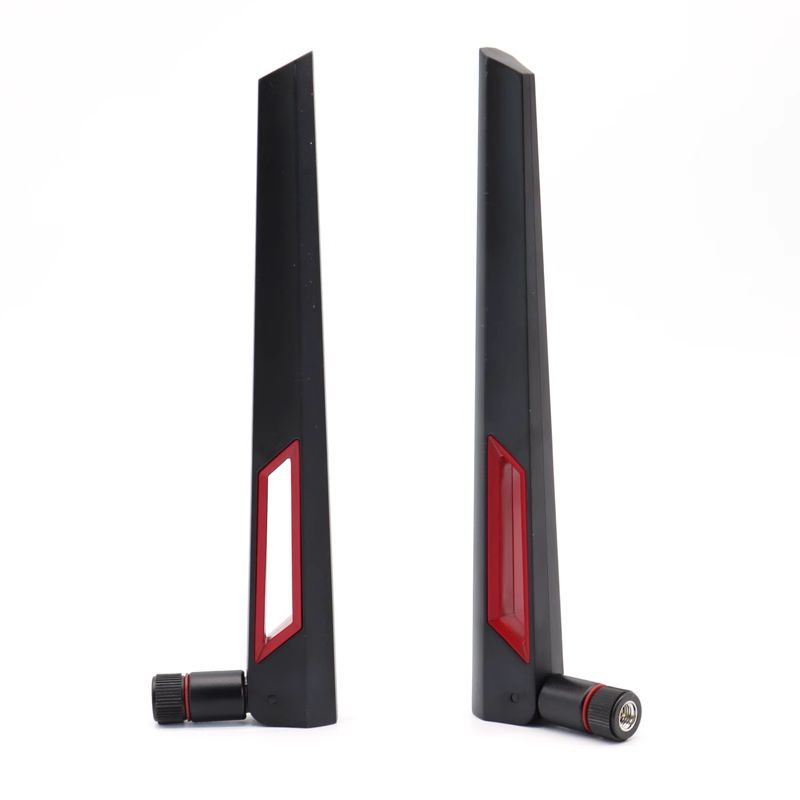

5G 10dB Omnidirectional Antenna - Connector: SMA-M

5G LTE GSM 10dB Omnidirectional Antenna

5G omnidirectional antenna with 10dBi finished with RSMA male or SMA male connector, suitable for building small offices and other 5G IoT devices.

Technical Specifications

Wireless Properties

• VSWR: ≤1.5 (SMA)
• Frequency: 3.4-5GHz
• Polarization: vertical
• Type of Antenna: Omnidirectional
• Antenna Gain [dBi]: 10dBi
• Nominal Impedance: 50Ω
• Maximum Power: 50W

Connectors and Interfaces

• RF Connectors: (1) RP-SMA male / SMA male

Physical Characteristics:

• Color: black
• Usage: Indoor
• Material: UV stable plastic
• Weight [g]: 25
• Height [mm]: 195
• Operating Temperature: -40℃ ~ +85℃

Package Contents:

1x 5G antenna 10dB

We can also offer these models upon request:
