5G LTE GSM 12dB Omnidirectional Antenna
Variants2
| Connector | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|
 |
SMA-M | Out of Stock Watch availability | 4,80 EUR | Demand | ||
 |
RP-SMA-M | in stock | 4,80 EUR |

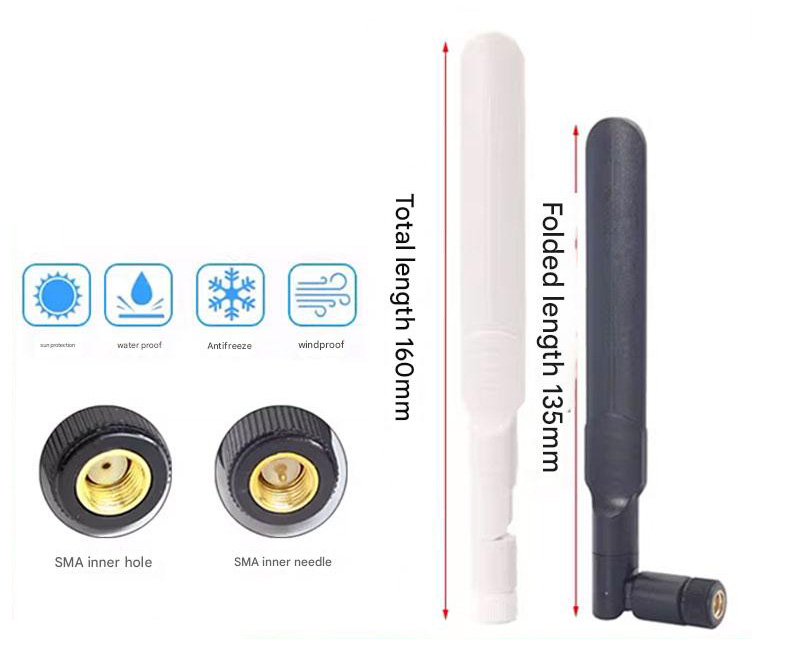

5G LTE GSM 12dB Omnidirectional Antenna
This omnidirectional 12dBi antenna is terminated with an RSMA male or SMA male connector, making it ideal for deployment in small offices and LTE/4G networks.
Technical Specifications
Wireless Properties
- VSWR: ≤1.5 (SMA)
- Frequency: 600-6000MHz
- Polarization: vertical
- Type of Antenna: Omnidirectional
- Gain [dBi]: 10-12dBi
-
Nominální impedance: 50Ω
- Maximum Power: 50W
Connectors and Interfaces
- RF Connectors: (1) RP-SMA male / SMA male
Physical Characteristics:
- Usage: Indoor
- Material: UV stable plastic
- Weight [kg]: 0.1
- Height [mm]: 160
- Operating Temperature: -40℃~+85℃
Package Contents:
1x 12dB Antenna

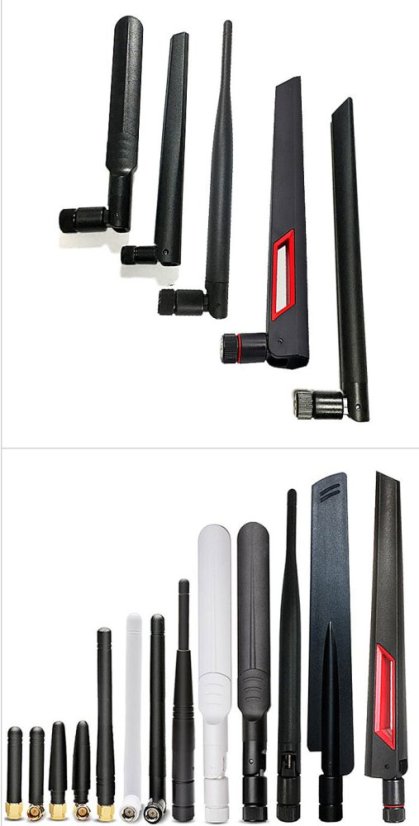

We can also offer the following models upon request:
