7" IPS 1024x600 HDMI LCD Display Module for Raspberry Pi | WKS70WSV023

7" IPS 1024x600 HDMI LCD display with Micro USB for Raspberry Pi. Industrial-grade, ideal for projects and monitoring. More

Product code: P00059 shipping-link

from 41,70 EUR incl. VAT

7" IPS 1024x600 HDMI LCD display with Micro USB for Raspberry Pi. Industrial-grade, ideal for projects and monitoring. More

Manufacturer: Product code: P00059 shipping-link

Variants2

	Model	Availability		Price incl. VAT	Quantity (ks)
	WOT	Out of Stock Watch availability		41,70 EUR		Demand
	WCT	Out of Stock Watch availability		50,60 EUR		Demand

Description
Inquiry Form

7" IPS 1024x600 HDMI LCD Display Module for Raspberry Pi | WKS70WSV023

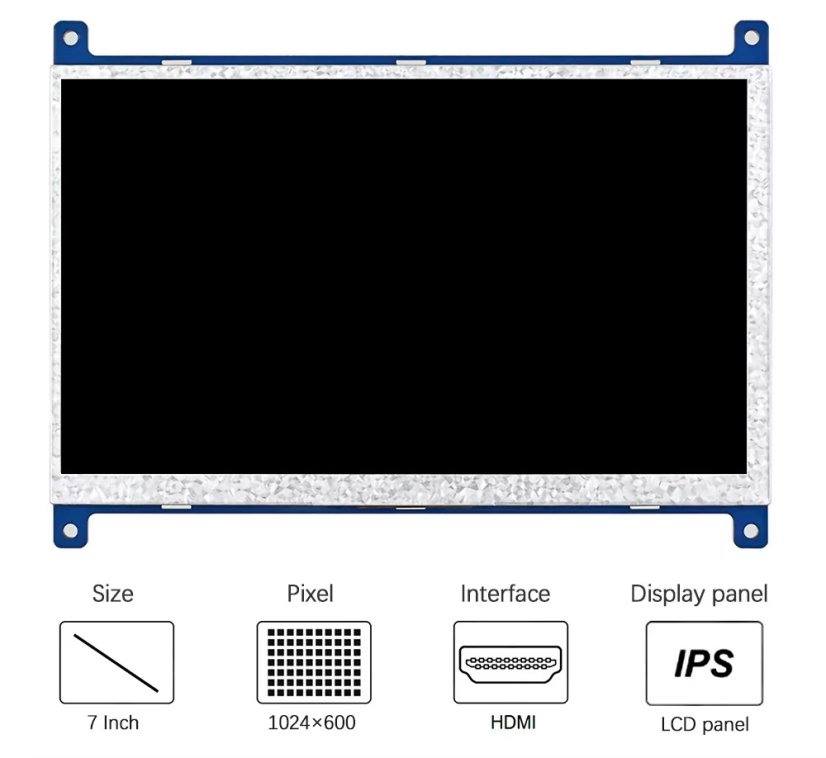

The WKS70WSV023 is a high-quality 7-inch IPS TFT LCD display with a resolution of 1024x600, designed for industrial and DIY applications. It features an HDMI interface for video input and a Micro USB interface for touch and power. This display is fully compatible with Raspberry Pi 3, 3B, and 4B, offering bright colors, wide viewing angles, and stable performance, ideal for monitoring, control panels, or embedded systems.

7" IPS 1024x600 HDMI LCD Display Module for Raspberry Pi | WKS70WSV023

Specifications:

Model:
- RBPI WKS70WSV023-WOT - without touch
- RBPI WKS70WSV022-WCT - with touch
Display Size: 7 inches
Resolution: 1024×600 pixels
Panel Type: IPS (wide viewing angles)
Interface: HDMI (video), Micro USB (touch/power)
Touch: Capacitive multi-touch (via USB)

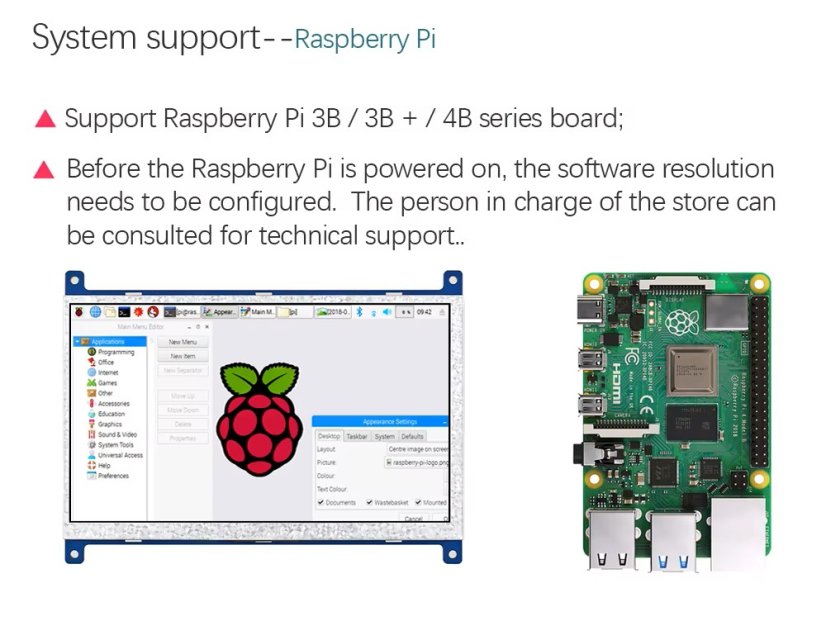

Compatibility: Raspberry Pi 3/3B/4B and other HDMI devices
Power Supply: 5V via Micro USB

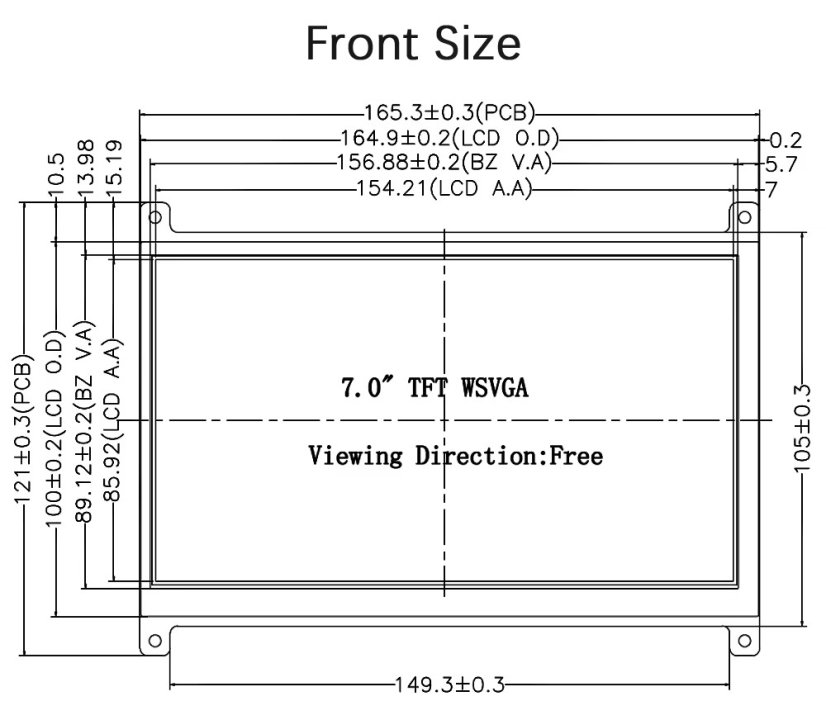

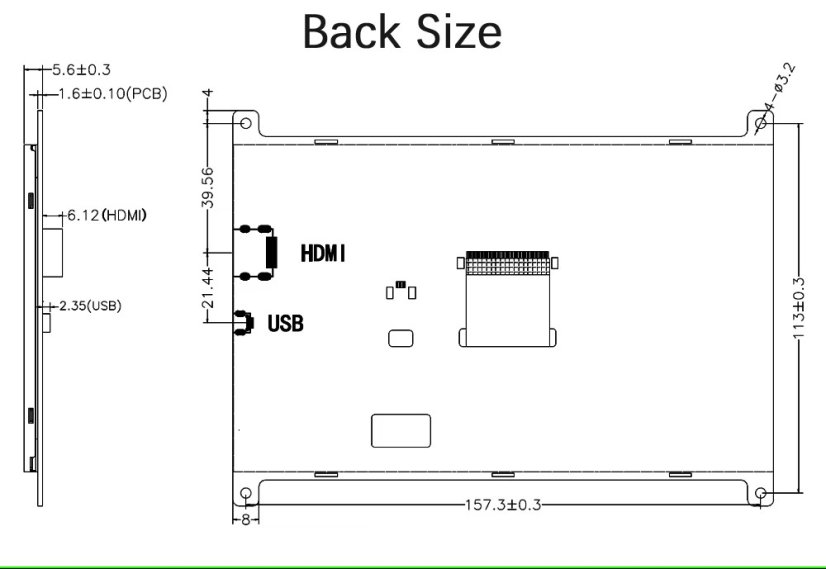

Dimensions: Approx. 165.30x121.00x5.60mm
Active Area: 154.21 x 85.92 mm
Pixel Pitch: 0.1506 x 0.1412 mm
Brightness: 400 cd/m²
Backlight Type: White LED

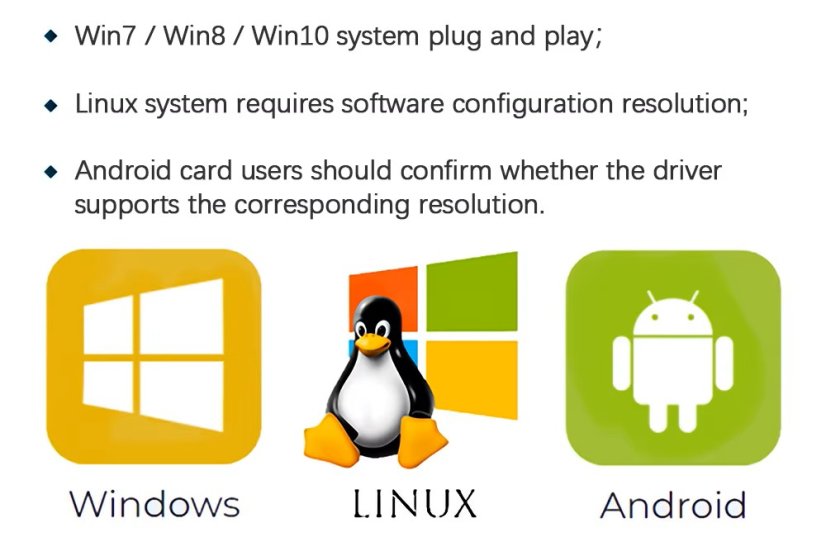

System Support: Android/Linux/Raspberry Pi

7" IPS 1024x600 HDMI LCD Display Module for Raspberry Pi | WKS70WSV023

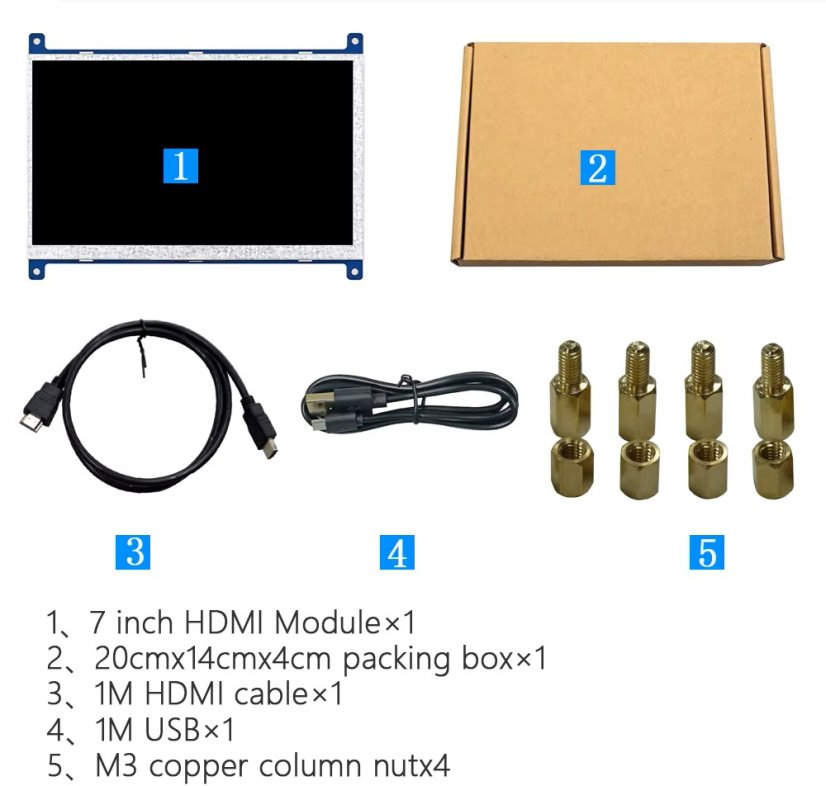

Included:
1x display
1x HDMI cable
1x USB cable
4x screws

More models from the same manufacturer:

HDMI Interface Display Module Product List
Size	Module Model	Resolution	Touch type
4.3 Inch	WKS43WV003-WCT	800(RGB)×480	CTP
	WKS43WV005-WOT	800(RGB)×480	NO
	WKS43WV020-WCT	800(RGB)×480	CTP
	WKS43WV021-WCT	800(RGB)×480	CTP
	WKS43WV028-WOT	800(RGB)×480	NO
5 Inch	WKS50HD001-WCT	1280(RGB)×720	CTP
	WKS50WV012-WCT	800(RGB)×480	CTP
	WKS50WV015-WOT	800(RGB)×480	NO
	WKS50WV017-WCT	800(RGB)×480	CTP
	WKS50WV018-WOT	800(RGB)×480	NO
6.86 Inch	WKS68VG001-WCT	480(RGB)×1280	CTP
	WKS68VG004-WCT	480(RGB)×1280	CTP
	WKS68VG006-WOT	480(RGB)×1280	NO
7 Inch	WKS70WSV002-WCT	1024(RGB)×600	CTP
	WKS70WSV006-WCT	1024(RGB)×600	CTP
	WKS70WSV012-WOT	1024(RGB)×600	NO
	WKS70WSV013-WOT	1024(RGB)×600	NO
	WKS70WSV017-WCT	1024(RGB)×600	CTP
	WKS70WSV022-WCT	1024(RGB)×600	CTP
	WKS70WSV023-WOT	1024(RGB)×600	NO
	WKS70WSV040-WCT	1024(RGB)×600	CTP
	WKS70WSV041-WOT	1024(RGB)×600	NO
	WKS70WSV042-WCT	1024(RGB)×600	CTP
	WKS70WSV043-WOT	1024(RGB)×600	NO
	WKS70WSV044-WCT	1024(RGB)×600	CTP
	WKS70WSV046-WCT	1024(RGB)×600	CTP
	WKS70WSV048-WCT	1024(RGB)×600	CTP
	WKS70WSV049-WCT	1024(RGB)×600	CTP
	WKS70WSV052-WOT	1024(RGB)×600	NO
	WKS70WSV057-WOT	1024(RGB)×600	NO
	WKS70WSV058-WCT	1024(RGB)×600	CTP
	WKS70WSV061-WOT	1024(RGB)×600	NO
8 Inch	WKS80XGA002-WCT	1024(RGB)×768	CTP
8 Inch	WKS80XGA003-WOT	1024(RGB)×768	NO
10.1 Inch	WKS101WSV002-WCT	1024(RGB)×600	CTP
	WKS101WX002-WCT	1280(RGB)×800	CTP
	WKS101WX003-WCT	1280(RGB)×800	CTP
	WKS101WX006-WCT	1280(RGB)×800	CTP
	WKS101WX008-WCT	1280(RGB)×800	CTP
	WKS101WX009-WCT	1280(RGB)×800	CTP
	WKS101WX010-WOT	1280(RGB)×800	NO
	WKS101WUX019-WCT	1920(RGB)×1200	CTP
	WKS101WUX20-WOT	1920(RGB)×1200	NO
15.6 Inch	WKS156FHD001-WCT	1920(RGB)×1080	CTP
