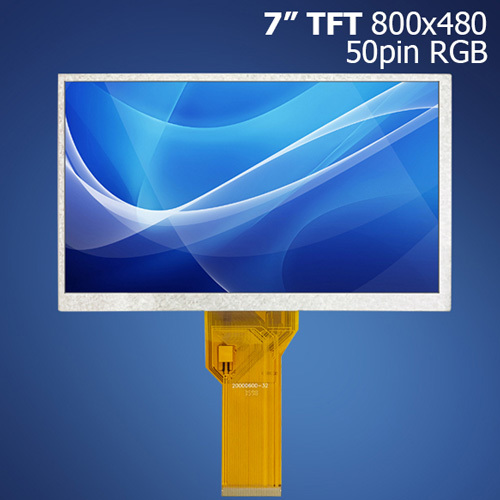

7" TFT Display AT070TN94, 800x480, RGB, 50pin

7 inch TFT display AT070TN94 for tablets, development boards, and other electronic projects. More

Manufacturer: NEVEN Product code: 11536 Shipping and payment

37,50 EUR incl. VAT

7 inch TFT display AT070TN94 for tablets, development boards, and other electronic projects. More

Manufacturer: NEVEN Product code: 11536 Shipping and payment

7" TFT Display AT070TN94 for tablets, development boards, and other electronic projects

Specifications:

Model	AT070TN94
Screen Diagonal	7" (178 mm)
Display Type	a-Si TFT
Display Resolution	800(x3)x480 pixels
Viewing Direction	12 o'clock
Backlight	LED
Signal Standard	24bit RGB/TTL
Interface	50pin FPC cable, 8 cm.
Touch Panel	No
Contrast	350:1
Brightness	200 cd/m2
Operating Voltage:	3.3V
Driver IC	Unknown
Window Dimensions (length x width)	154.08x85.92 mm
Dimensions	164.90x100x5.5 mm
Operating Temperature	-20...50°C
Storage Temperature	-30...60°C
