7" TFT Display DBT070AIV30L8-B

7" TFT Display DBT070AIV30L8-B


7" TFT, 800x480, TTL, 30-pin display for tablets, development boards and other electronic projects. More
Manufacturer: NEVEN Product code: 12558 Shipping and payment
77,80 EUR incl. VAT
in stock (2 ks)
7" TFT, 800x480, TTL, 30-pin display for tablets, development boards and other electronic projects. More
Manufacturer: NEVEN Product code: 12558 Shipping and payment

7" TFT, 800x480, TTL, 30-pin display for tablets, development boards, and other electronic projects

Specifications:

Model DBT070AIV30L8-B
Screen Diagonal 7" (15:9 aspect ratio)
Display Type a-Si TFT
Surface Antiglare, Hard-Coating(3H)
Display Resolution 800(x3)x480 pixels
Viewing Direction 12 O'clock
Signal Standard 8bit LVDS
Interface 30-pin FPC cable, F1-X30SSLA-HF (JAE)
Touch Panel No
Contrast 1000:1
Brightness 800cd/m2
Operating Voltage 3.3V

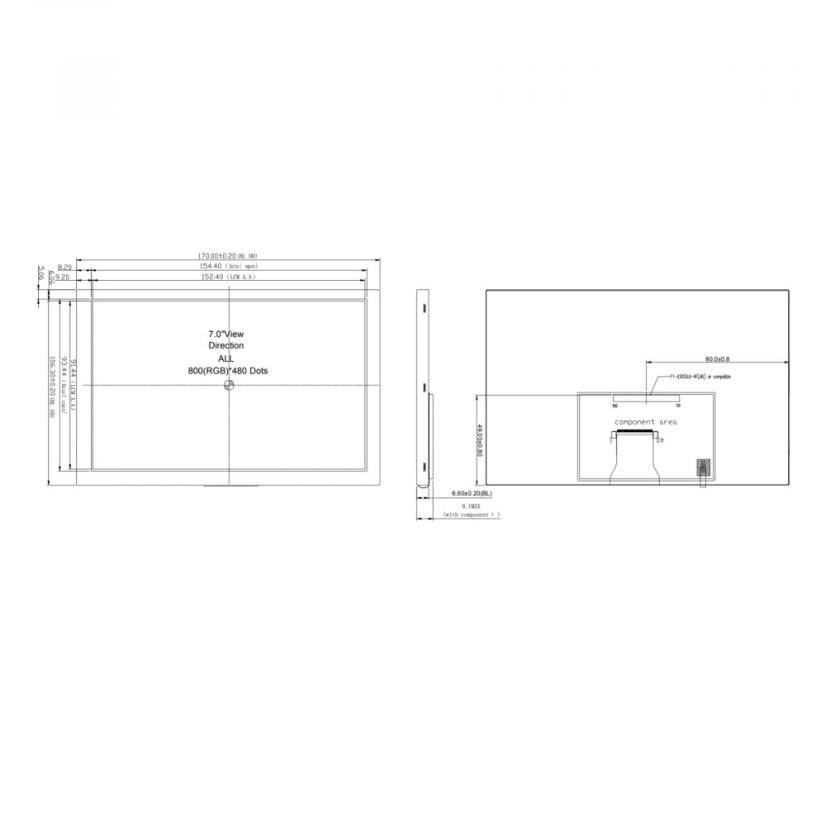

Window Dimensions (L x W) 152.4x91.44mm (6.00x3.60 inches)
Dimensions 170x106.3x6.6mm (6.69x4.18x0.26 inches)
Operating Temperature -30...85°C (-22...185°F)
Storage Temperature -30...85°C (-22...185°F)
DBT070AIV30L8-B 7-inch TFT Display
