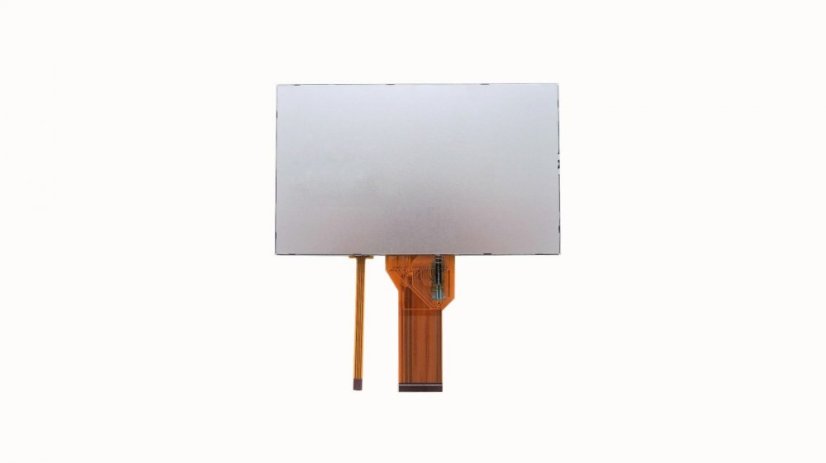

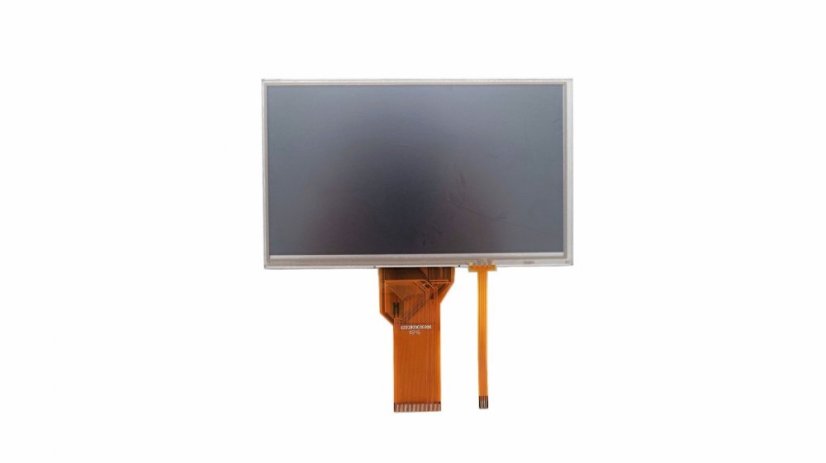

7" TFT LCD Display 800x480 40pin with Touch Panel - Touch technology: RTP
7" TFT LCD Display 800x480 40pin with Touch Panel - Touch technology: RTP
Perfect replacement for AT070TN90 V.1/AT070TN92 V.X/7DD1+1 FPC More
Product code: 11463
Shipping and payment
35,60 EUR
incl. VAT
Perfect replacement for AT070TN90 V.1/AT070TN92 V.X/7DD1+1 FPC More

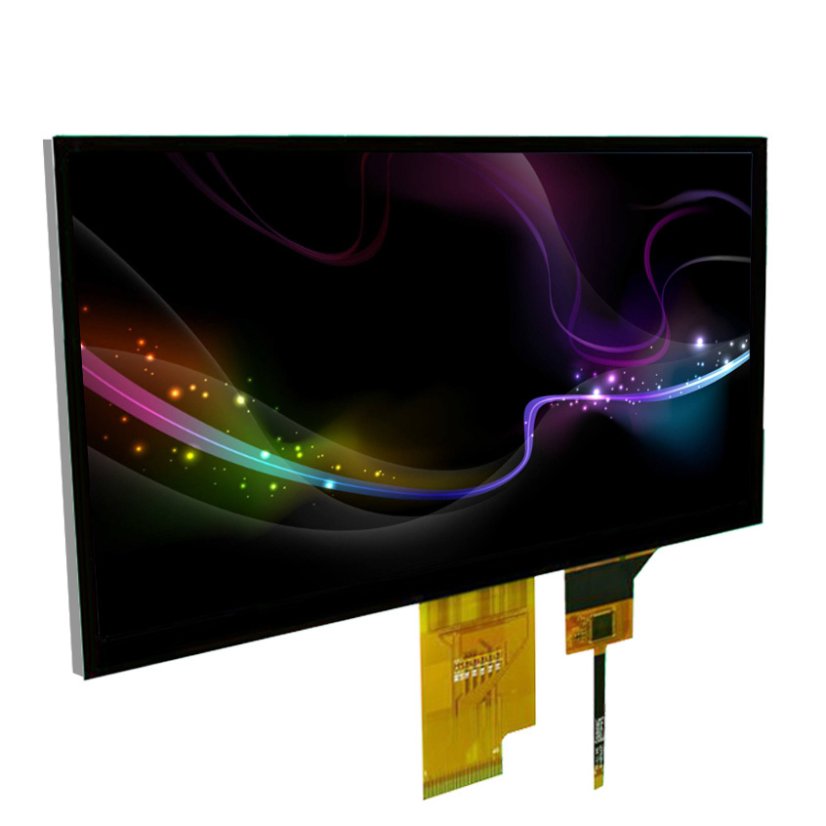

7" TFT LCD Display 800x480 TTL 40pin with capacitive or resistive touch panel
Perfect replacement for AT070TN90 V.1/AT070TN92 V.X/7DD1+1 FPC
Display Specifications:
| HCT-A70T50-18L3525W | |
| TFT | |
| graphic | |
| 7" | |
| 800x480 | |
| Aspect Ratio | 6:9 |
| Signal Standard | TTL |
| 40pin FPC cable | |
| Yes | |
| LED | |
| 500:1 | |
| 350cd | |
| 70 / 70 / 50 / 70 (L/R/U/D) | |
| Operating Voltage (logic): | 3.1 - 3.5V |
| -30...80°C | |
| 157x89mm | |
| 165x99x3.5mm | |
| -20...70°C |
Specifications of capacitive touch panel - CTP:
| STC-7099 X | |
| 7" | |
| Touch Panel Technology | multitouch |
| Current Touch Support | 5 |
| Surface Strength (hardness) against wear | 3 |
| Transparency Rate: | > 80% |
| Operating Pressure: | 50-100g |
| 165x99x2mm |
Specifications of resistive touch panel - RTP:
| JZ-070-B1320 HN | |
| Type of Touch Panel: | resistive with 4 wires |
| 7" | |
| Transparency Rate: | > 80% |
| Operating Pressure: | 50-100g |
| 161x97x1mm |
