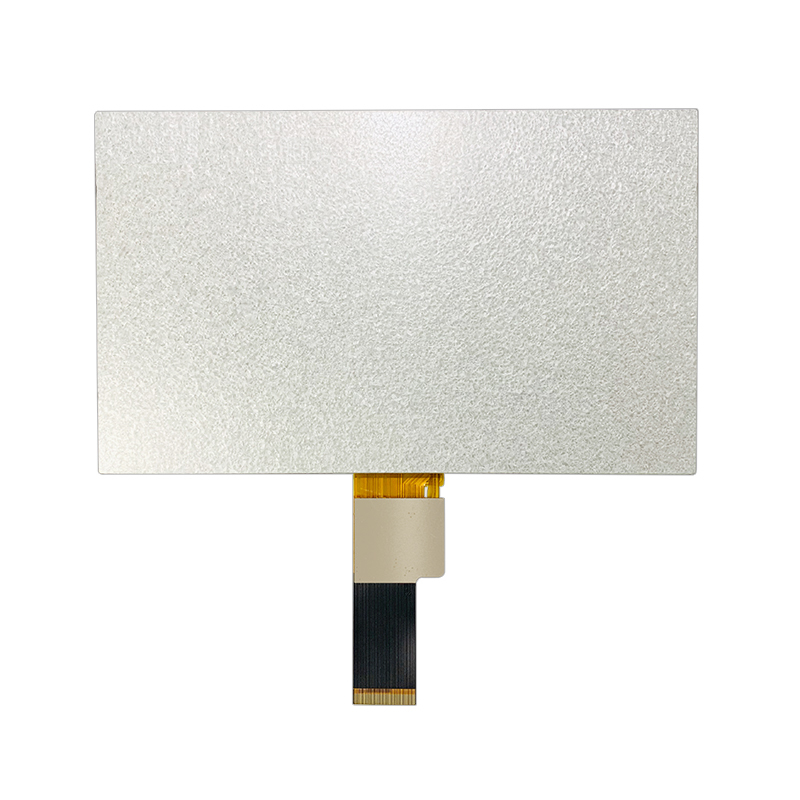

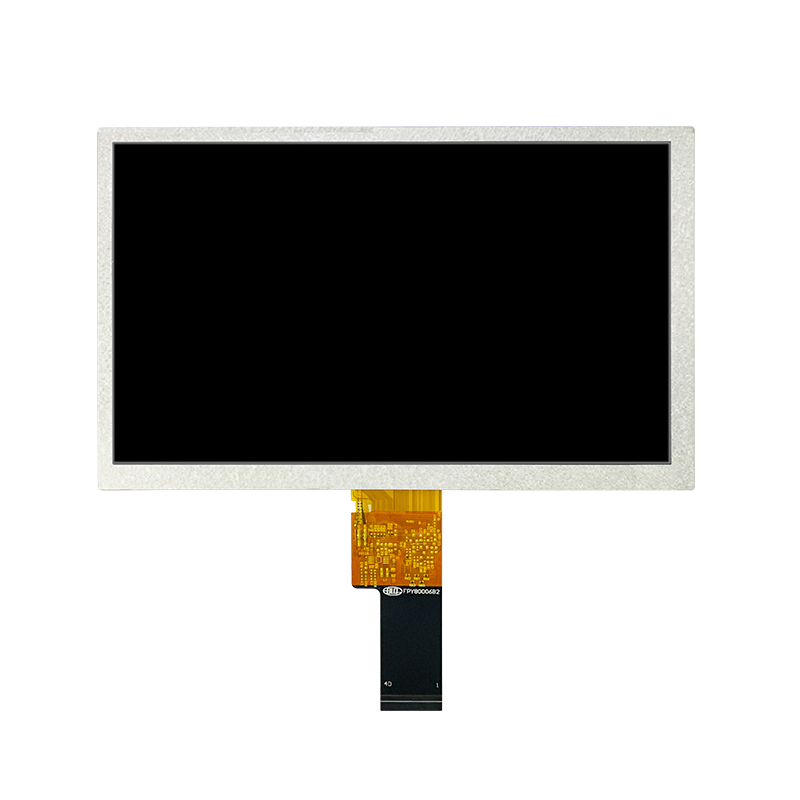

8" TFT display, 1024x600, LVDS, 40pin

8-inch TFT display suitable for tablets, development boards, and other electronic projects. More

Manufacturer: NEVEN Product code: 11528 Shipping and payment

41,70 EUR incl. VAT

8-inch TFT display suitable for tablets, development boards, and other electronic projects. More

Manufacturer: NEVEN Product code: 11528 Shipping and payment

8" TFT display, 1024x600, LVDS, 40pin for tablets, development boards and other electronic projects

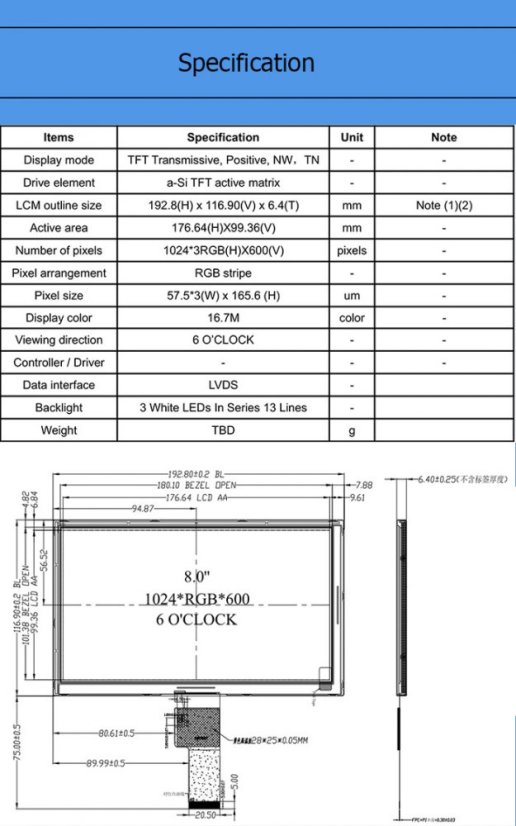

Specifications:

Model	8" TFT display
Screen Diagonal	8"
Display Type	a-Si TFT Transmissive, Positive, NW, TN
Display Resolution	1024(x3)x600 pixels
Viewing Direction	6 O'clock
Backlight	3 white LEDs in series 13 lines
Signal Standard	LVDS
Interface	40pin FPC cable
Touch Panel	No
Contrast	500:1
Luminance	500cd/m2
Viewing Angle	-
Operating Voltage:	3.3-3.6V
Driver IC	HX8282+HX8696m
Window Dimensions (L x W)	176.64x99.36mm
Dimensions	192.8x116.9x6.4mm
Operating Temperature	-20...60°C
Storage Temperature	-30...80°C
