9" TFT Display 800x480 RGB

9" TFT Display 800x480 RGB with 50pin Connector

Add to favourites Add to compare list

9" TFT Display 800x480 RGB with 50pin Connector

9" TFT display, providing high-resolution performance with vibrant colors, perfect for tablets and electronic projects. More
Manufacturer: NEVEN Product code: 11532 shipping-link
40,70 EUR incl. VAT
< 5 pieces in Stock (1 ks)
9" TFT display, providing high-resolution performance with vibrant colors, perfect for tablets and electronic projects. More
Manufacturer: NEVEN Product code: 11532 shipping-link

9" TFT display 800x480 RGB with 50pin connector for tablets, development boards, and other electronic projects

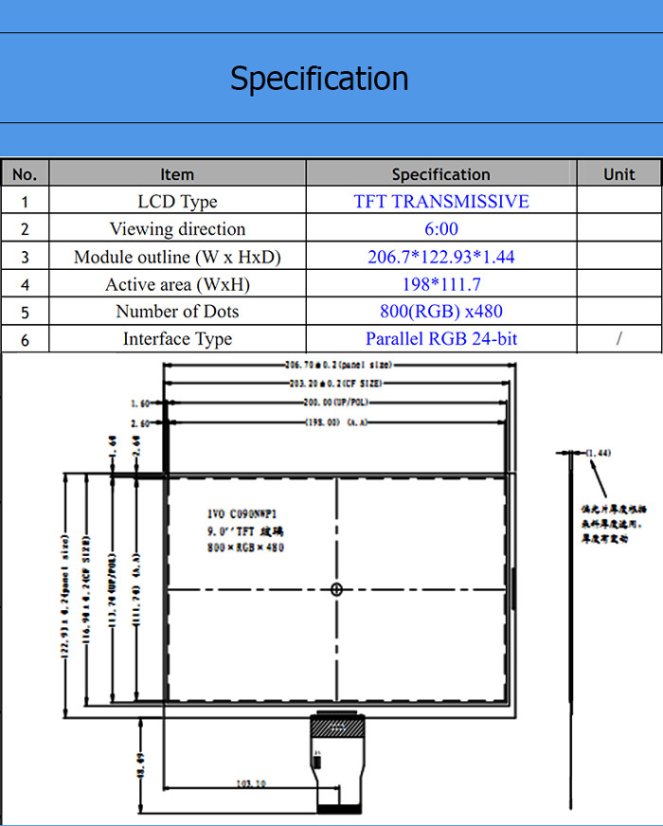

Specifications:


9"
Display Type a-Si TFT
Display Resolution 800(x3)x480 pixels
Viewing Direction 6 O'clock
Backlight
Signal Standard 24bit TTL

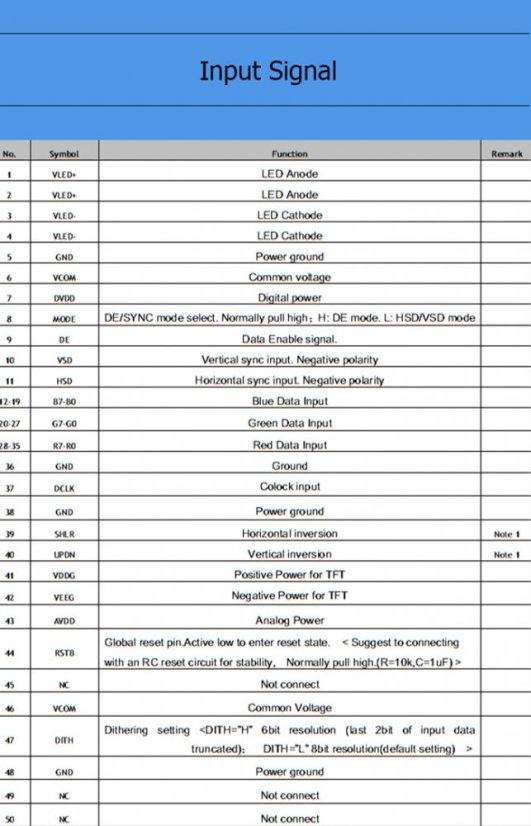

50pin FPC cable
No
500:1
200cd/m2
3.1-3.5V
Driver IC
198x111.7mm
206.7x122.93x1.44mm
-20...50°C
Storage Temperature -30...60°C

9inch TFT, 800x480, RGB, 50pin display
9inch TFT, 800x480, RGB, 50pin display


9inch TFT, 800x480, RGB, 50pin display
9inch TFT, 800x480, RGB, 50pin display
