A6 Dual-Frequency RFID Card Reader

More photos (8)

Add to favourites Add to compare list

A6 Dual-Frequency RFID Card Reader

A6 dual-frequency RFID card/chip reader with USB output that connects to your PC as a keyboard. Drivers install automatically. More

Manufacturer: NEVEN Product code: 13714 Shipping and payment

41,70 EUR incl. VAT

A6 dual-frequency RFID card/chip reader with USB output that connects to your PC as a keyboard. Drivers install automatically. More

Manufacturer: NEVEN Product code: 13714 Shipping and payment

Description
Inquiry Form

A6 Dual-Frequency RFID Card Reader

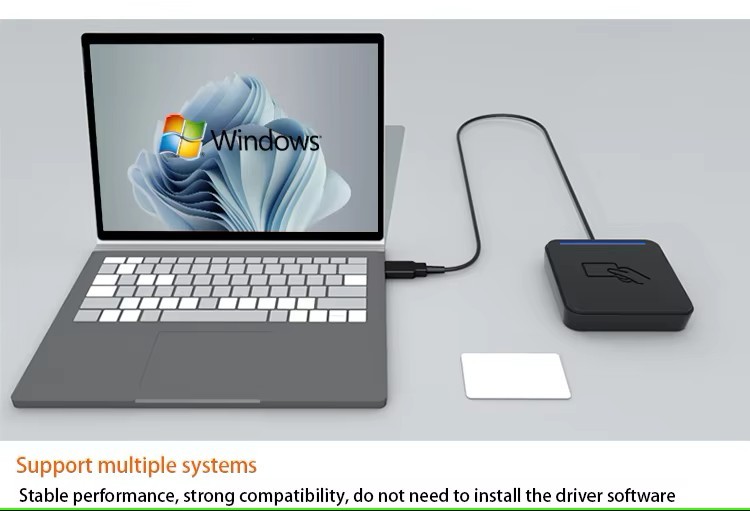

The A6 dual-frequency RFID card/chip reader with USB output connects to a PC as a keyboard. Drivers are installed automatically.

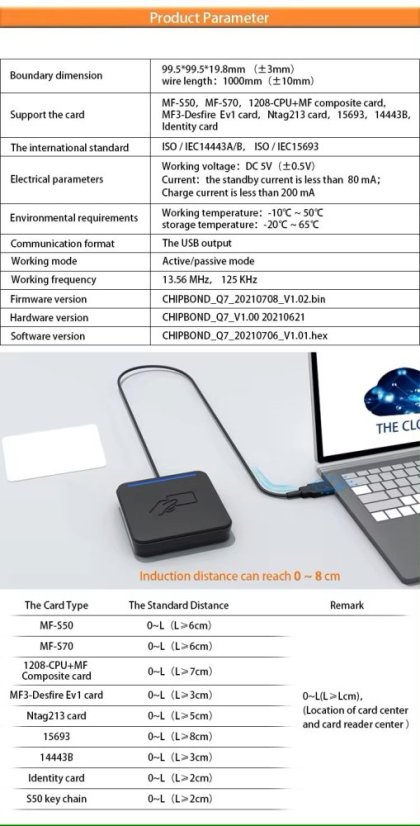

Specifications:

Model: A6
Supported formats:
ID: EM4100, 4200, TK4100 and compatible cards
IC: Mifare one S50/S70, Ultralight, Ultralight-C, Ntag203, 213, 216, etc.
Frequency: 125KHz and 13.56MHz
Function: reader only
Interface: USB (HID virtual keyboard)
Power Supply: 5V, <30mA
Range: 2-8cm
Reading Time: <0.2s
Power and Reading LED
CE Compliance: yes
Operating Temperature: -30 to 80 degrees Celsius

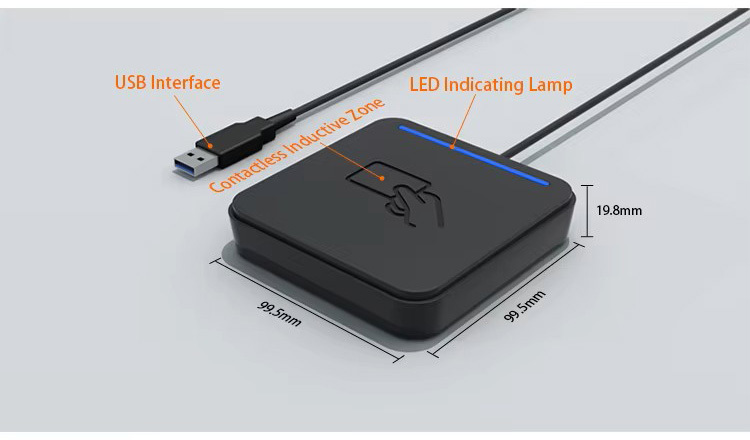

Dimensions: 99.5x99.5x18.5mm

Frequency mode switching:
Press and hold the button on the back of the reader to switch the operating frequency:

Mode C – 13.56 MHz (MIFARE, NTAG, Ultralight, etc.)
Mode D – 125 kHz (EM4100, TK4100 and compatible)

Output Format Description:

The output format of the reader can be easily changed using a small button on the back of the device. Supported output formats include:

IC Cards (13.56MHz)
1. C01.B10D10A - 10-digit decimal
2. C02.B10D10D - 10-digit decimal reversed
3. C03.B8D16A - 8-digit hexadecimal
4. C04.B8D16D - 8-digit hexadecimal reversed
5. C05.B8D10A - 8-digit decimal
6. C06.B8D10D - 8-digit decimal reversed
7. C07.00B8D10A - 00 + 8-digit decimal
8. C08.00B8D10D - 00 + 8-digit decimal reversed
9. C09.2H4D+2H4DA - 2H4D + 2H4D
10. C10.2H4D+2H4DD - 2H4D + 2H4D reversed
11. C11.H8D16A - 8-byte hexadecimal
12. C12.H8D16D - 8-byte hexadecimal reversed
13. C13.88B10D10A - 88 + 10-digit decimal
14. C14.88B10D10D - 88 + 10-digit decimal reversed
15. C15.88B8D10A - 88 + 8-digit decimal
16. C16.88B8D10D - 88 + 8-digit decimal reversed
17. C17.2H3D + 4H5DA - 2H3D + 4H5D
18. C18.2H3D + 4H5DD - 2H3D + 4H5D reversed
19. C19.H7D16A - 7-byte hexadecimal
20. C20.H7D16D - 7-byte hexadecimal reversed

ID Cards (125KHz)
1. D01.B10D10A - 10-bit decimal
2. D02.B10D10D - 10-bit decimal reversed
3. D03.B8D16A - 8-bit hexadecimal
4. D04.B8D16D - 8-bit hexadecimal reversed
5. D05.B8D10A - 8-bit decimal
6. D06.B8D10D - 8-bit decimal reversed
7. D07.00B8D10A - 00 + 8-bit decimal
8. D08.00B8D10D - 00 + 8-bit decimal reversed
9. D09.2H4D+2H4DA - 2H4D + 2H4D
10. D10.2H4D+2H4DD - 2H4D + 2H4D reversed
11. D11.2H3D + 4H5DA - 2H3D + 4H5D
12. D12.2H3D + 4H5DD - 2H3D + 4H5D reversed
13. D13.H5D16A - 5-byte hexadecimal
14. D14.H5D16D - 5-byte hexadecimal reversed

A6 Dual-Frequency RFID Card Reader

Package Includes:
1x RFID Card Reader
