MT7601U USB WiFi Dongle with Antenna

MT7601U USB WiFi Dongle with Antenna

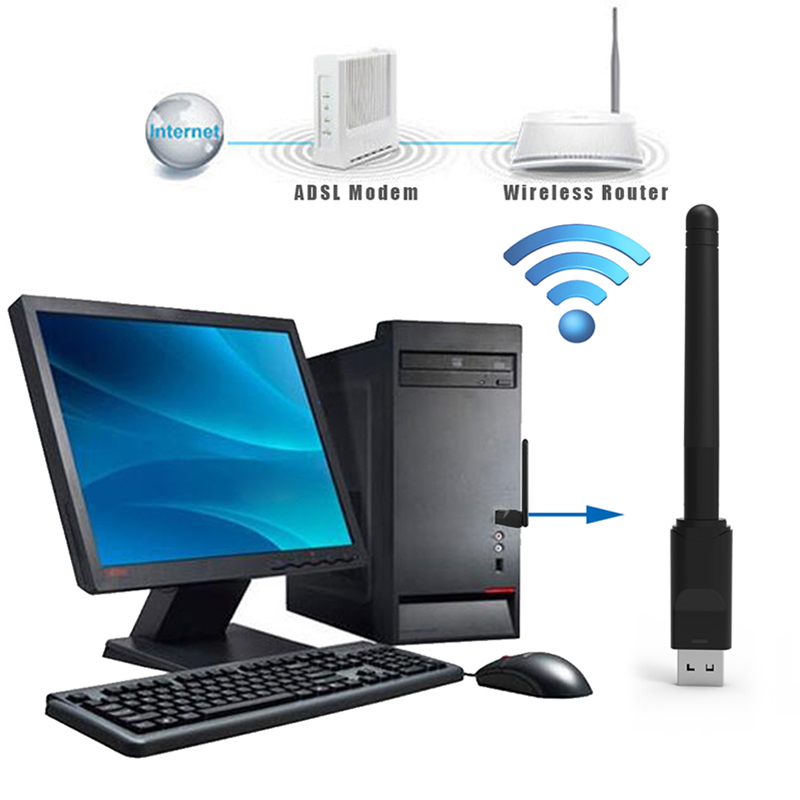

USB adapter for receiving WiFi signal for Orange Pi, Nano Pi, etc. Add 802.11n wireless connectivity to your receiver or PC! Quick setup with a convenient USB. Connects to 802.11b/g/n wireless networks and hotspots. Easy control and setup.

Specifications:

• Model: FRITZ!WLAN USB stick AC 860
• Chipset: Ralink (now MediaTek) MT7601U  (VID_148F & PID_760)
• Interface: High-speed USB 2.0
• Antenna: 2dBi, omnidirectional
• Frequency Band: 2.4 GHz (2.415 ~ 2.484GHz), fully compatible with IEEE802.11b/g/n standards
• Output Power: 802.11b: 17 +/-1.5dBm, 802.11g: 14 +/-1.5dBm
• Receiver Sensitivity: 802.11b: 84dBm @ 11Mbps-, 802.11g: 68dBm @ 54Mbps
• Data Modulation: OFDM/CCK/16-QAM/64-QAM
• Spread Spectrum Technology: DSSS
• Number of Working Channels: 13
• Speed: Dynamic data rate up to 150 Mbps (approx. 18.75 MB/s)

• 11n: 162/108/81/54/27Mbps
  135/121.5/108/81/54/40.5/27/13.5Mbps
  130/117/104/78/52/39/26/13Mbps;
  65/58.5/52/39/26/19.5/13/6.5Mbps

• 11g: 54/48/36/24/18/12/9/6M (adaptive)
• 11b: 11/5.5/2/1M (adaptive)
• Security: 64/128 WEP, WPA, WPA2 encryption and authentication
• Support: Windows 2000 / XP / Vista / 7 / 10 / Mac OS and Linux

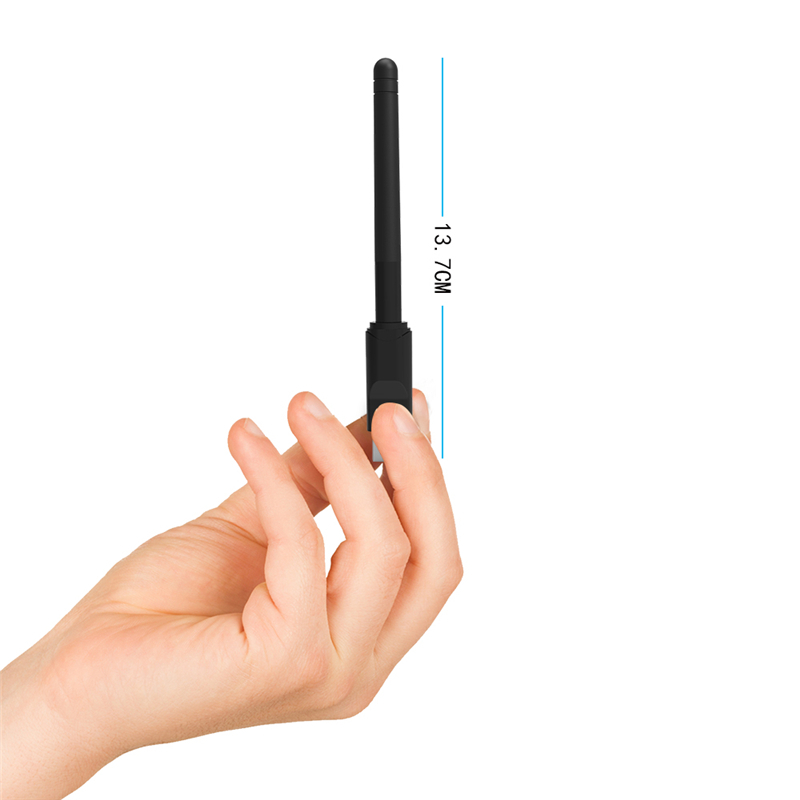

• Dimensions: 137 x 14.2 x 7.3 mm
• Packaging: bubble wrap / bulk
• Operating Temperature: 0°C - 50°C
