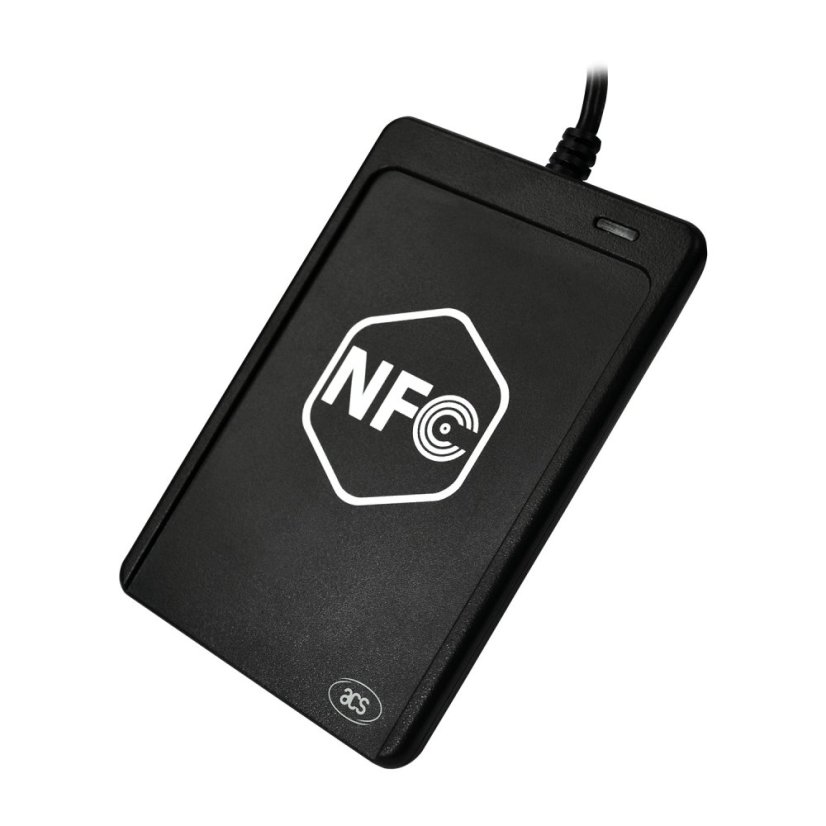

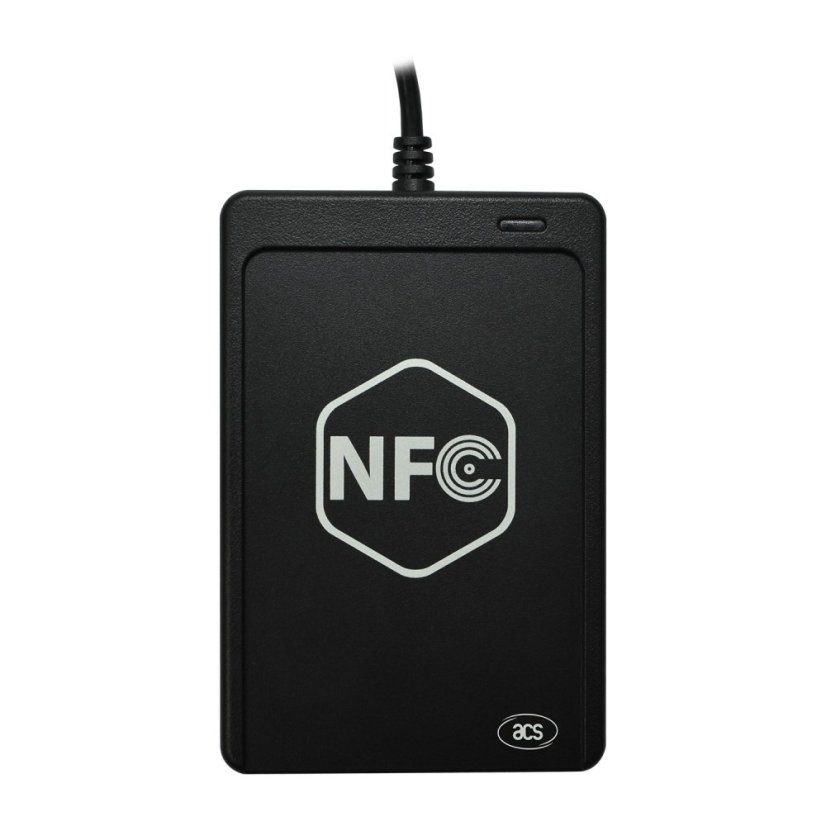

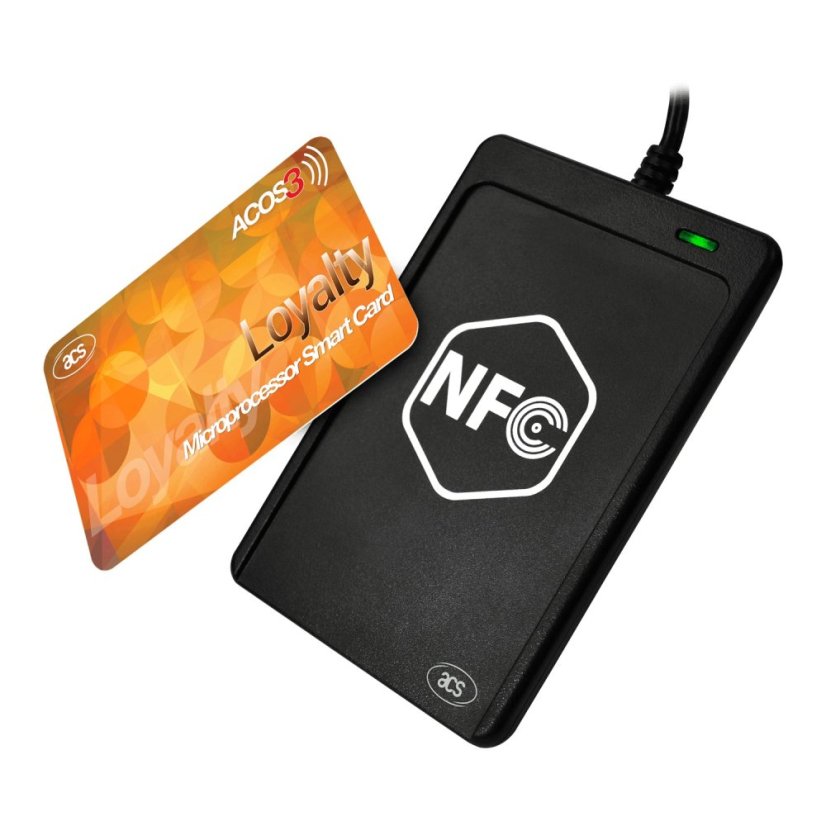

ACR1251U USB NFC Reader and Writer

This contactless reader utilizes NFC wireless technology and MIFARE. It connects to a PC via a USB port.

The ACR1251U NFC Reader II is a USB smart card reader developed for 13.56 MHz contactless technology. It is designed to support ISO 14443 Type A and B cards, MIFARE®, FeliCa, and all four types of NFC tags and devices. It features firmware upgradeability and includes a SAM slot for implementing additional security features in the contactless system.

• NFC Enabled – supports NFC Tags type 1-4 for various applications, NFC mobile phones, and NFC Peer-to-Peer (P2P) mode.
• PICC Support – ISO 18092 compliant (NFC), ISO 14443 Type A & B, MIFARE and FeliCa variants.
• Firmware Upgradeable – The field-upgradable firmware feature provides support for future enhancements.
• Cost-Effective – The ACR1251U is an economical reader for extensive sharing and promoting NFC technology to customers.
• Easy Integration – contactless interface compatible with PC/SC.
• SAM interface compliant with PC/SC.
• No driver required – CCID driver installs via Windows Update.

Specifications:

• Model: ACR1251U (ACR1251U-M1)
• Reading distance up to 50 mm (2 inches)
• Read/Write speed of up to 424 kbps
• Frequency: 13.56 MHz
• Contactless Smart Card Reader:
• Read/Write ISO 14443A/B speed of up to 424 kbps
• Clock frequency up to 13.56 MHz
• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
• Supports ISO 14443 Part 4 Type A and B cards, MIFARE Classic®, FeliCa, and all four types of NFC (ISO/IEC 18092 tags)
• Built-in anti-collision feature (only one tag is accessed at any time)
• Supports extended APDU (max. 64 KB)
• NFC Support: Card Reader/Writer mode or Peer-to-Peer mode.
• SAM Interface (inside the reader):
• One SAM Slot
• Supports ISO 7816 Class A, B, and C SAM cards.
• Application Programming Interface:
• Supports PC/SC.
• Peripherals:
• User-controllable bi-color LED (Blue & Green).
• User-controllable buzzer.
• USB Firmware Upgradability.
• USB 2.0 Full Speed Interface.
• CCID Compliance.
• Supported operating systems: Windows, MacOS, Linux, and Android 3.1 and higher.
• Keyboard Mode (HID): no.
• Dimensions: 98x65x13 mm (3.86x2.56x0.51 in).

Datasheet: https://www.acs.com.hk/download-manual/4413/TSP-ACR1251U-1.11.pdf

Installation CD: https://www.acs.com.hk/en/driver/218/acr1251u-usb-nfc-reader-ii/

API: https://www.acs.com.hk/download-manual/4414/API-ACR1251U-1.14.pdf

Package Contents:

1x ACR1251U contactless reader
