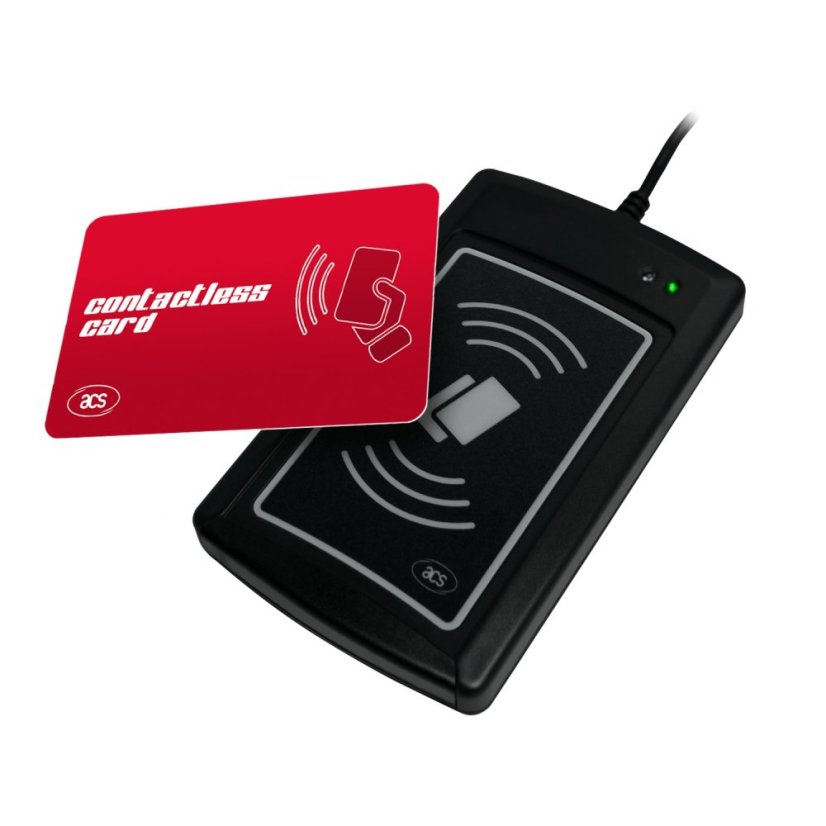

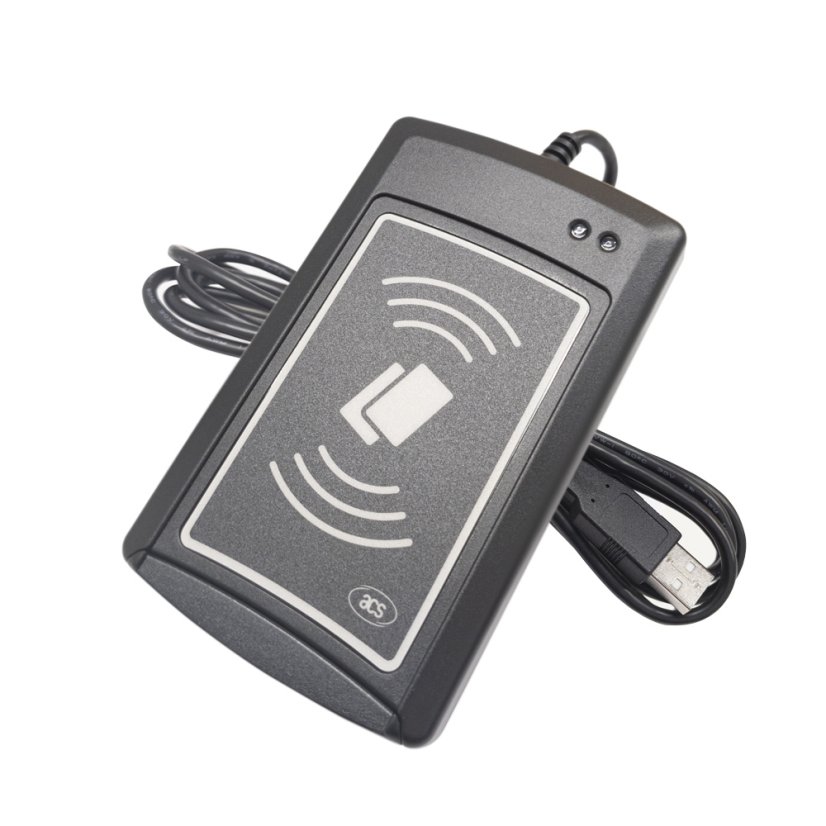

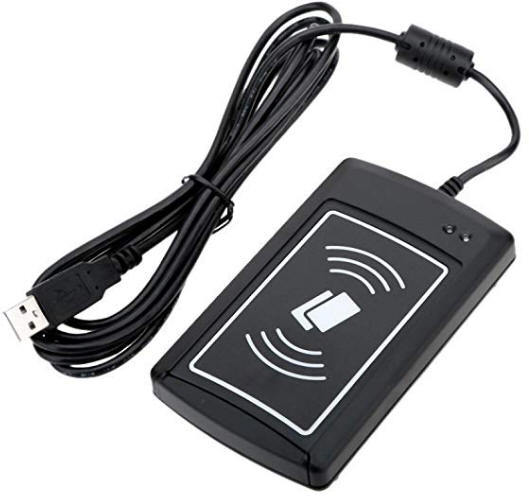

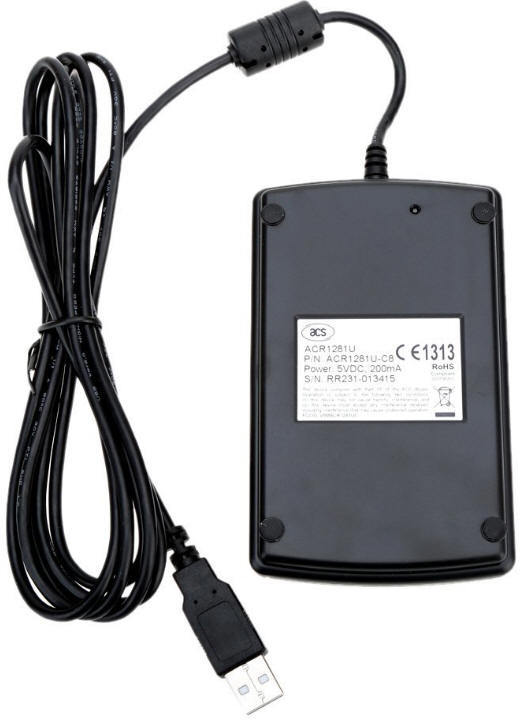

ACR1281U USB NFC Reader and Writer

The ACR1281U is a contactless/contact smart card reader with wireless NFC technology and MIFARE. It connects to a PC via a USB port.

The ACR1281U is the new version of the ACS ACR120U contactless/contact card reader. The USB protocol ACR1281U-C8 defines the interface between the computer and the reader, as well as the communication channel between the computer and supported contactless cards, including MIFARE® compatible cards, ISO 14443 Type A and B. With High Level APIs, users can develop applications incorporating the use of contactless/contact cards with minimal effort. For example:

• Access Control, Identification: Reading serial numbers of all cards in the field
• Data Storage: Performing encrypted reading and writing operations
• Ticketing: Executing reading, writing, incrementing, and decrementing operations in an encrypted environment
• Multiple Applications: Executing reading, writing, incrementing, and decrementing operations on different sectors of the card

Features:

• USB Full Speed (12 Mbps)
• Read and Write functionality
• Smart Card Reader:
• Built-in antenna for contactless access to tags, with a reading distance of cards up to 50 mm
• Supports ISO 14443 Type A and B cards, MIFARE®
• Built-in anti-collision feature (only one tag is accessible at a time)
• Selective card querying capability (especially useful when multiple cards are presented)
• Built-in peripherals:
• LED
• Buzzer
• Firmware upgradability

Specifications:

• Model:
• ACR1281U-C8 Contactless
• ACR1281U-C1 DualBoost II Contactless and Contact
• Reading distance up to 50 mm
• Contactless Smart Card Reader:
• Read/Write ISO 14443A/B speed of up to 106 kbps
• Clock frequency up to 13.56MHz
• Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type)
• Supports ISO 14443 Type A and B cards
• MIFARE Classic protocols, MIFARE DESFire protocols, MIFARE Mini protocols
• Read/Write speed up to 848 kbps

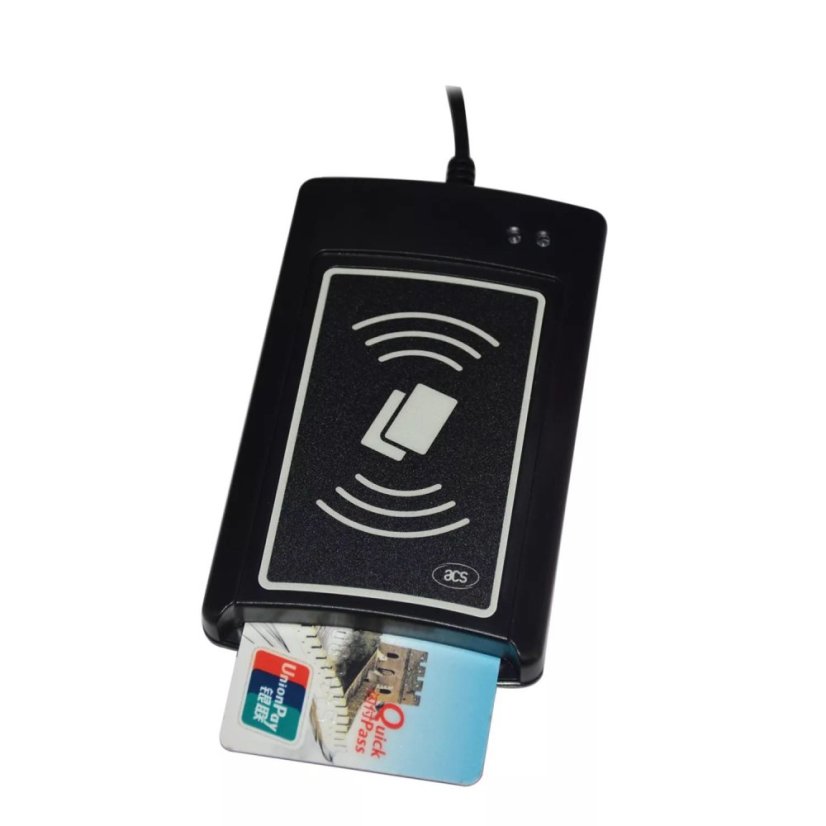

• Contact Smart Card Reader (only ACR1281U-C1)
• Supports ISO 7816 Class A, B, and C (5 V, 3 V, and 1.8 V) cards
• Supports CAC (Common Access Card)
• Supports PIV (Personal Identity Verification Card)
• Supports microprocessor cards with T=0 or T=1 protocol
• Supports memory cards
• Supports PPS (Protocol and Parameters Selection)
• Features Short Circuit Protection
• Supports extended APDU (max. 64 KBytes for T=1; max. 512+10 Bytes for T=0)
• One SAM slot
• Supports ISO 7816 Class A SAM cards
• Application Programming Interface:
• Supports PC/SC
• Peripherals:
• User-controllable bi-color LED (Blue & Green)
• User-controllable buzzer
• USB Firmware Upgradability
• USB 2.0 Full Speed Interface
• CCID Compliance
• Supported operating systems: Windows, MacOS, Linux, and Android 3.1 and above
• NFC mode: reading and writing
• Keyboard mode (HID): no
• SDK: Yes
• Dimensions: 120.5 x 72 x 20.4 mm

Datasheet: https://www.acs.com.hk/en/products/583/acr1581u-dualboost-iii-usb-dual-interface-reader/#tech-specs

Installation CD: https://www.acs.com.hk/en/products/583/acr1581u-dualboost-iii-usb-dual-interface-reader/

Package Contents:

1x ACR1281U USB Reader

ACR1281U-C8 Contactless

ACR1281U-C1 DualBoost II Contactless and Contact
