AIO-3288C Quad-Core High-Performance Board
AIO-3288C Quad-Core High-Performance Board
AIO-3288C Quad-Core High-Performance Board

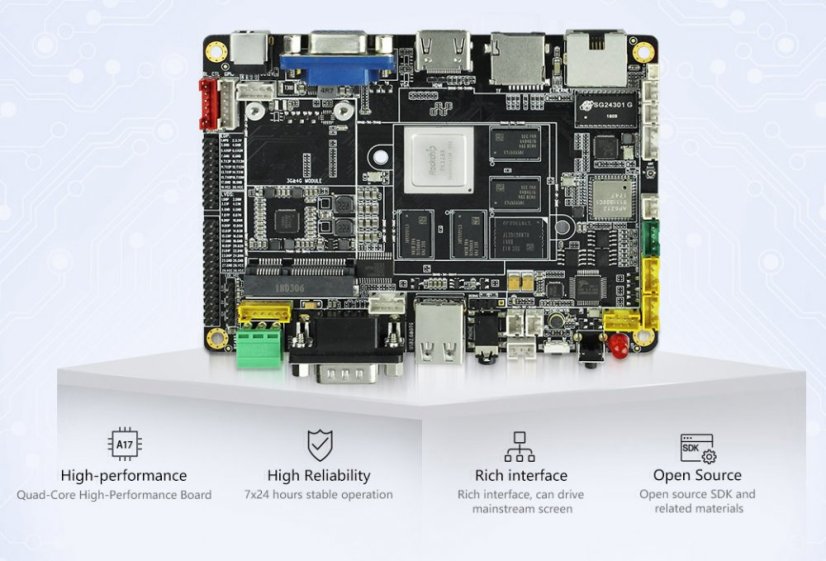

Utilizing the RK3288 Cortex-A17 quad-core processor, it supports 4K hardware decoding, has a rich expansion interface, and is compatible with major displays. It employs a gold-plating process and has passed various pressure tests, allowing for direct product application.
High-Performance Core Configuration
The AIO-3288C features a RK3288 Cortex-A17 quad-core processor with frequencies up to 1.8GHz and an integrated Mali-T764 quad-core GPU. Its exceptional performance expands product possibilities.
Strong Hard Decoding Capability
It supports LVDS/EDP/MIPI/HDMI/VGA display interfaces, 4K hardware decoding, dual screens of identical display/diverse displays, and can directly drive main displays from 5 to 100 inches.
Rich Expansion Interface
It features a serial port RS232 (hardware flow control), RS485, dual LVDS, EDP, HDMI, VGA (expandable), a 2-way CSI MIPI camera interface, a 3G/4G LTE module (Mini-PCIe), and other interfaces to meet product development requirements.
Open SDK
The open SDK, guides, technical materials, and development tools make development easier and simpler.

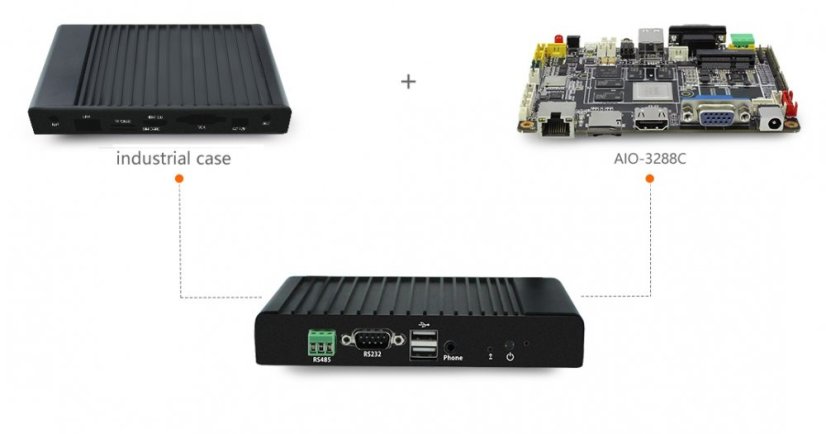

Combined with Enclosure
It can be combined with an industrial enclosure for easy integration into various smart devices.
Application
The AIO-3288C can be applied directly to various products: Computing storage, Smart robots, Gaming devices, Commercial displays, Medical devices, Vending machines, Intelligent POS, Interactive printers.
Specifications
| Specifications | |
| CPU | RK3288 Quad-Core Cortex-A17, up to 1.8GHz |
| GPU | Mali-T764 GPU, supports AFBC (frame buffer compression) Supports OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3 Built-in high-performance 2D acceleration hardware |
| DDR | 2GB dual channel DDR3 |
| Memory | 8GB eMMC 5.1, supports MicroSD (TF) card |
| Multimedia | Supports 4K 10bits VP9/H265/H264 video decoding, up to 60fps 1080P multi-standard video decoding (VC-1, MPEG-1/2/4, VP8) Supports 1080P video encoding with H.264 and VP8 formats Video postprocessor: deinterlacing, denoising, edge/detail/color enhancement |
| Display | Dual LVDS: supports 1080P@60Hz LCD screens eDP1.1: supports 4K×2K@32fps HDMI 2.0: supports 4K 60Hz display, supports HDCP 1.4/2.2 VGA interface (expandable): supports 1080P@60Hz output |
| Audio | 1 x HDMI 1 x headphone 1 x Dual channel speaker (8Ω/2W) |
| Camera | 2x MIPI-CSI camera port |

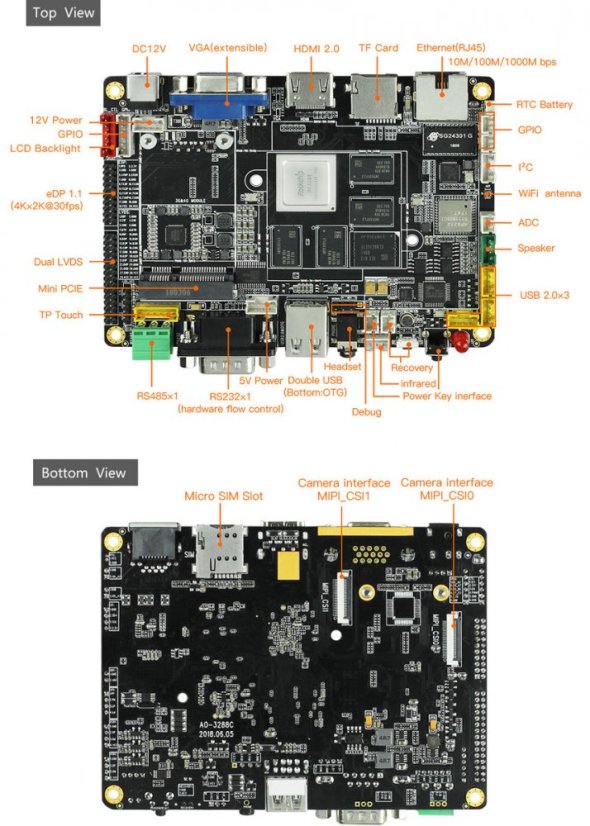

| Interface | GPIO, eDP, LVDS, USB, ADC, I2C, Key, Power input and output interface |
| Network | 10/100/1000Mbps Gigabit Ethernet (RJ45 interface) Onboard WiFi/BT module, supports single-channel WiFi 2.4GHz, supports protocol 802.11 b/g/n |
| Mobile Network | Supports WCDMA, EVDO, 4G universal version |
| RTC | Built-in RTC real-time clock (supports power-off timer) |
| USB | 1×USB_OTG, 1×USB_HOST, 3×USB port |
| Serial Port | 1×RS232 (hardware flow control), 1×RS485 |
| IR | With one-way infrared receiver, supports infrared remote control |
| OS | Android 5.1, Linux operating system |
| Upgrade | Supports TF card / USB upgrade |
| Input Power | 12V/2A |

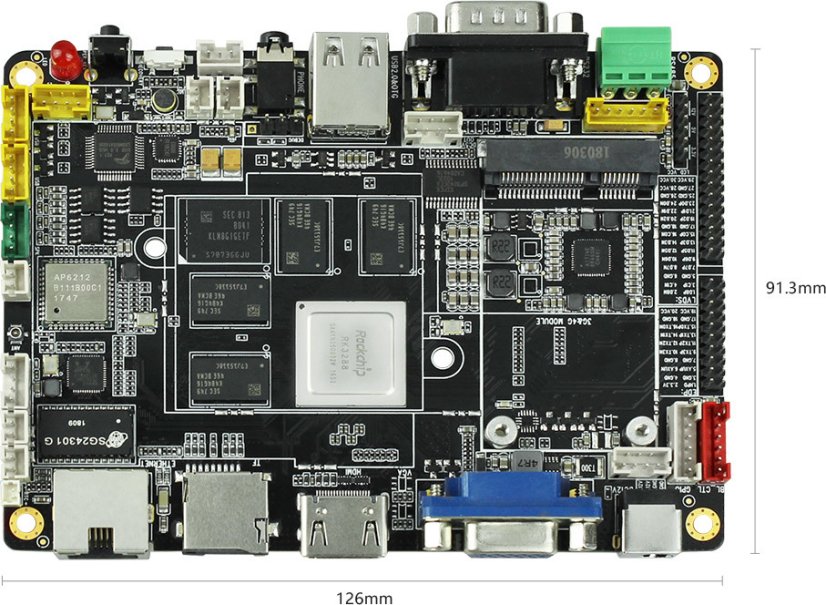

| Size | 126 mm × 91.3 mm |
