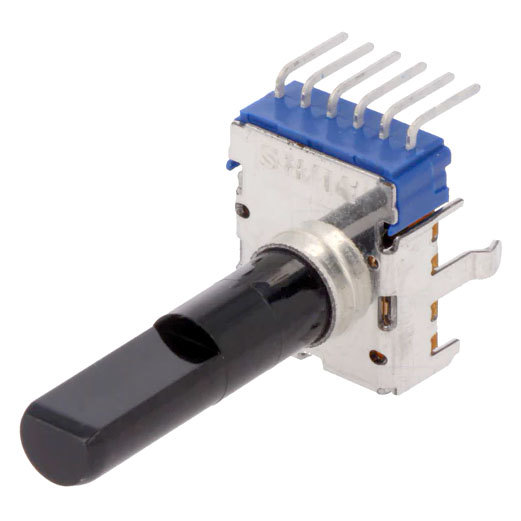

ALPS RK12L123000E 2x6-pin B50K potentiometer

ALPS RK12L123000E 2x6-pin B50K potentiometer


ALPS RK12L123000E is a high-quality carbon rotary potentiometer. More
Manufacturer: NEVEN Product code: 12578 shipping-link
3,30 EUR incl. VAT
>= 5 pieces in Stock (14 ks)
ALPS RK12L123000E is a high-quality carbon rotary potentiometer. More
Manufacturer: NEVEN Product code: 12578 shipping-link

RK12L123000E Carbon Rotary Potentiometers from Alps

  • Model: RK12L123000E
  • Series: RK12L
  • Resistance: 50kΩ
  • Mono linear (B) and positive logarithmic (A)
  • Rated Power: 0.05W
  • Shaft: Plastic, Ø6mm
  • Housing: 12mm
  • Shaft Length: 30mm
  • Design: Dual Channel
  • Type: Vertical
  • Max Operating Voltage: 50VAC
  • Insulation Voltage (1 min): 300V AC
  • Insulation Resistance: >100MW / 250 VDC
  • Resistance Tolerance: ±20%
  • Mechanical Rotation Angle: 300° ±5°
  • Operating Torque: 2...15mN*m
  • Lifespan: 15x103 operations
  • Stop Strength, Max: 0.5mN*m
  • Temperature Range: -10°C...+70°C
  • Manufactured by Alps
