Aluminum Cooling Fan for LattePanda

Aluminum Cooler + Fan for LattePanda

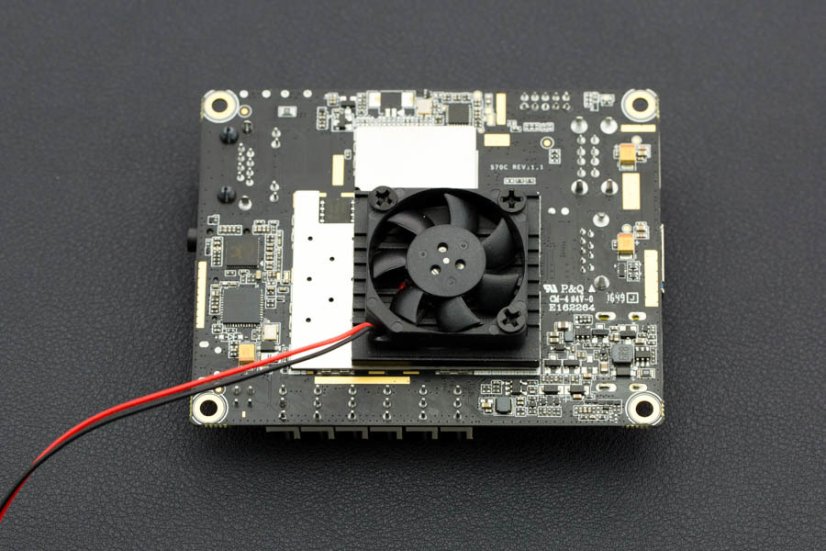

This low-profile fan operates extremely quietly, keeping your LattePanda device at a normal temperature. The 2-pin connector facilitates connection to the CN2 headers on the board.

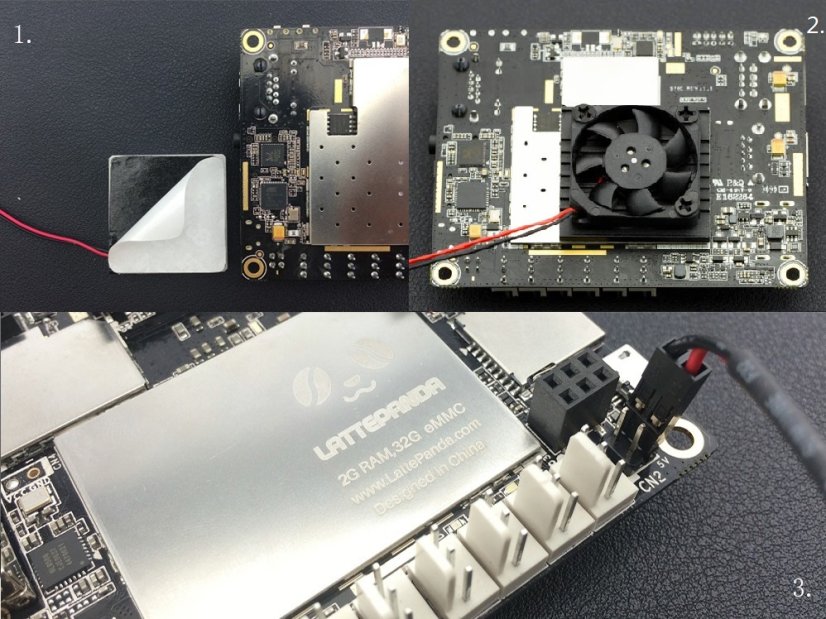

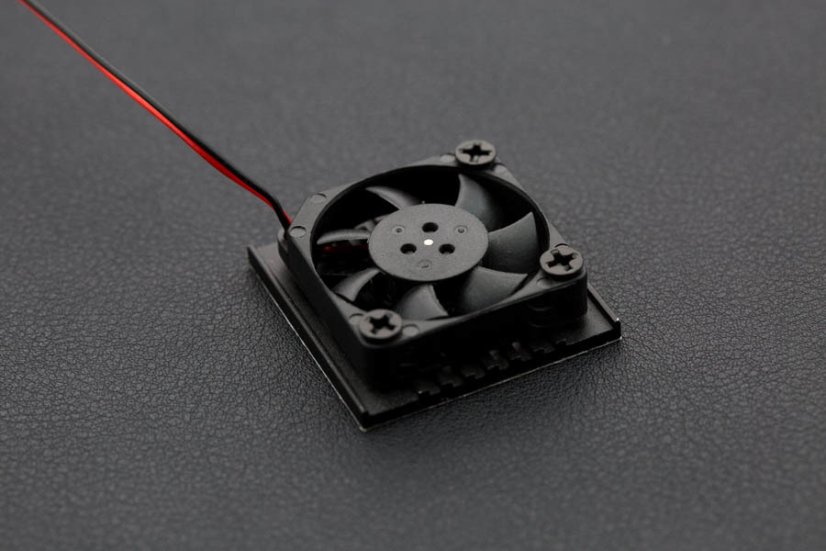

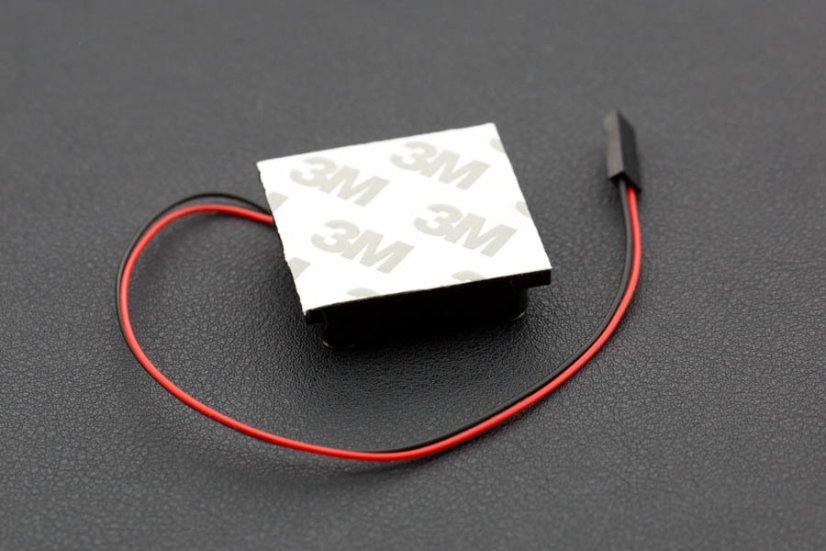

The aluminum cooling fan features an adhesive thermal pad on the back that can stick to the metal cover on the board. The aluminum housing quickly absorbs heat from the processor, ensuring optimal performance. This is a simple and effective way to keep your LattePanda (Win10 mini PC) cool!

Note: Beware of the correct polarity of the wires.

Red - 5V

Black - GND

SPECIFICATIONS

• Operating Voltage: 5V
• Operating Current: 0.14A
• Rated Speed: 7500 RPM
• Cable Length: 18cm
• Interface Type: 2.54mm 2-pin DuPont connector
• Dimensions: 35 x 35 x 10 mm / 1.38 x 1.38 x 0.39"
• Fan Dimensions: 30 x 30 x 7 mm / 1.18 x 1.18 x 0.28"
• Weight: 14g

PACKAGE CONTENTS

• Aluminum Cooling Fan x 1
