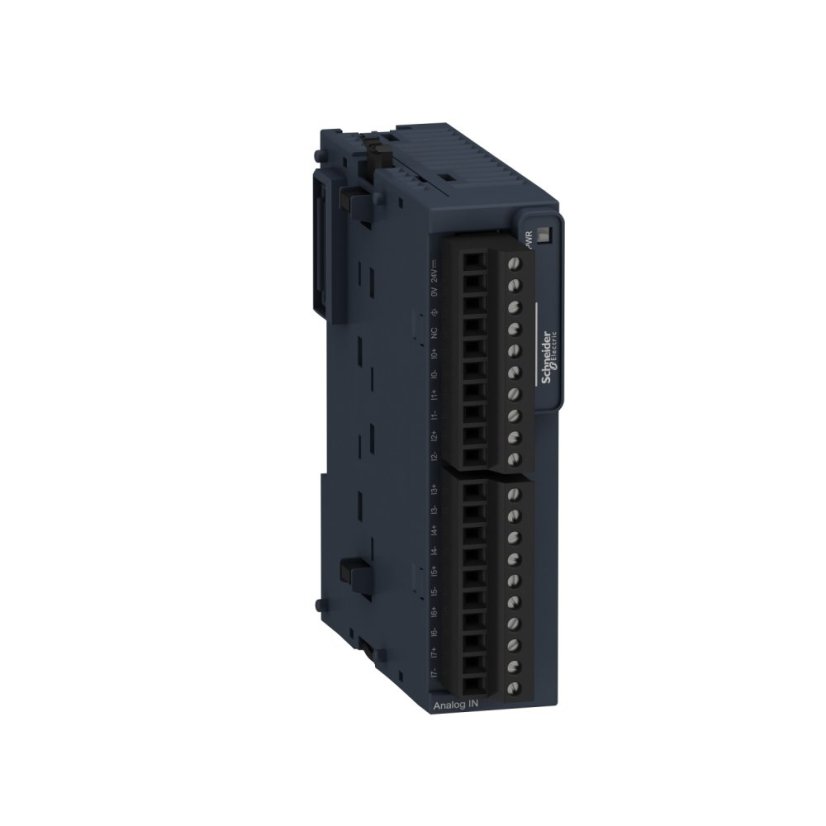

Analog Input Module, Modicon TM3, 8 Temperature Inputs (screw) 24 VDC

This product is part of the Modicon TM3 series, which offers expansion I/O modules for Modicon M221, M241, M251, and M262. The analog input module provides 8 inputs with 16-bit and 15-bit + sign resolution. It is an input module with a nominal power supply voltage of 24V DC and a current consumption of 30mA at 24V DC via external power supply, 45mA/40mA at 5V DC through the bus connector. This product can control variable speed drives or any device equipped with a current or voltage-type input. There is isolation between input and power supply of 1500V AC, and between input and internal logic of 500V AC. It features a removable screw terminal for electrical connection with a 3.81 mm pitch and settings for inputs and power supply. This is a product with an IP20 rating. Its dimensions are 23.6 mm (width) x 70 mm (depth) x 90 mm (height). The weight is 0.11 kg (0.24 lbs). This product is CE certified. It complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, M241, M251, and M221 logic controllers. It supports TH35-15 and TH35-7.5 top hat rails in accordance with IEC 60715 and a panel with a mounting kit. Modicon TM3 expansion modules have been designed with a simple interconnecting mechanism. A bus expansion connector is used for data and power distribution when mounting Modicon TM3 modules with logic controllers. Enhance the performance of your controller with the Modicon TM3 I/O system, specially designed for Modicon M221, M241, and M251 logic controllers.

Technical sheet: https://www.se.com/us/en/product/TM3TI8T/analog-input-module-modicon-tm3-8-temperature-inputs-screw-24-vdc/
