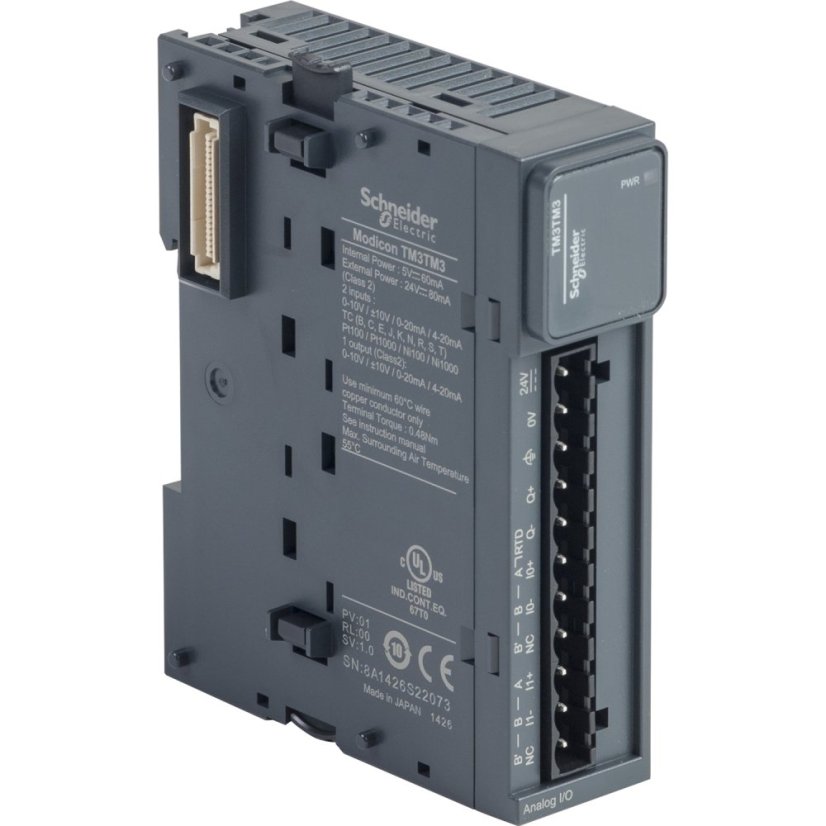

Analog Input/Output Module, Modicon TM3, 2 or temperature inputs, 1 output (screw) 24 VDC

This product is part of the Modicon TM3 series, which offers expansion I/O modules for Modicon M221, M241, M251, and M262. The analog I/O module provides 2 inputs, 1 output with a resolution of 16 bits and 15 bits + sign. This I/O module has a nominal supply voltage of 24V DC, with a current consumption of 60mA, 55mA at 5V DC via the bus connector, and 55mA, 80mA at 24V DC via external power. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. Between input and power, there is isolation at 1500V AC, between input and internal logic at 500V AC, between output and power at 1500V AC, and between output and internal logic at 500V AC. It is equipped with a removable screw terminal for electrical connection with a pitch setting of 5.08mm for inputs, outputs, and power. The product has an IP20 rating. Dimensions are 23.6mm (width) x 70mm (depth) x 90mm (height). The product weight is 0.115kg. This product is CE certified. It meets the standards EN/IEC 61131-2 and EN/IEC 61010-2-201. This module is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers. Supports top hat rails TH35-15, top hat type TH35-7.5, conforming to IEC 60715, and a board or panel with a mounting kit. The Modicon TM3 expansion modules were designed with a simple interlocking mechanism. To distribute data and power when mounting Modicon TM3 modules with logic controllers, an expansion bus connector is used. Enhance your controller's performance with the Modicon TM3 I/O system, specially designed for Modicon M221, M241, and M251 logic controllers.

Technical Sheet: https://www.se.com/us/en/product/TM3TM3/input-output-analog-module-modicon-tm3-2-or-temperature-inputs-1-output-screw-24-vdc/
