ANAVI Miracle Controller

ANAVI Miracle Controller

Open-source board, compatible with Wi-Fi and powered by ESP8266 for controlling two 5V or two 12V LED strips.

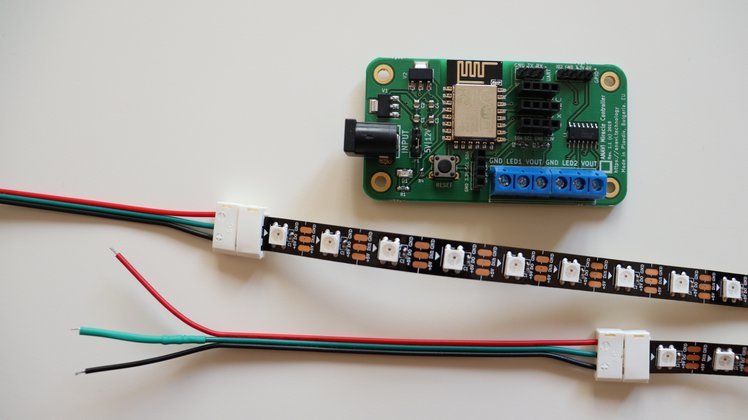

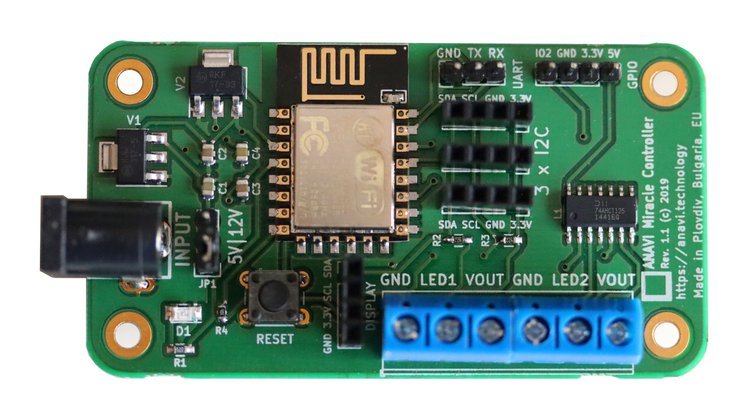

The ANAVI Miracle controller is an open-source hardware development board compatible with Wi-Fi and powered by ESP8266. It is designed to control two 5V and 12V LED strips simultaneously. It supports popular LED types including Neopixel, WS2811, WS2812B, TM1809, etc. It also has a dedicated slot for a mini OLED I²C display and slots for up to three additional I²C sensor modules. Furthermore, it features a UART bus for easy flashing of custom software and additional GPIO for connecting external peripherals. With all these features, the ANAVI Miracle controller is suitable for developers, manufacturers, students, and open-source enthusiasts interested in home automation.

The ANAVI Miracle controller is fully compatible with Arduino IDE and PlatformIO, popular open-source software tools for home automation, as well as with Home Assistant and OpenHAB, via the MQTT protocol for easy messaging. When using the ANAVI Miracle controller, developers can easily focus on software by simply creating and flashing their own versions of the source code. Technically skilled users can easily integrate the ANAVI Miracle controller into their existing open-source home automation platforms.

• Quick setup, no soldering required
• Supports popular LED strips
• Includes 470-ohm resistor
• Fun and useful for all skill levels
• Certified open source

Features and Specifications

• Microcontroller: 32-bit Tensilica L106 processor (ESP8266)
• Wireless: Wi-Fi 802.11 b/g/n

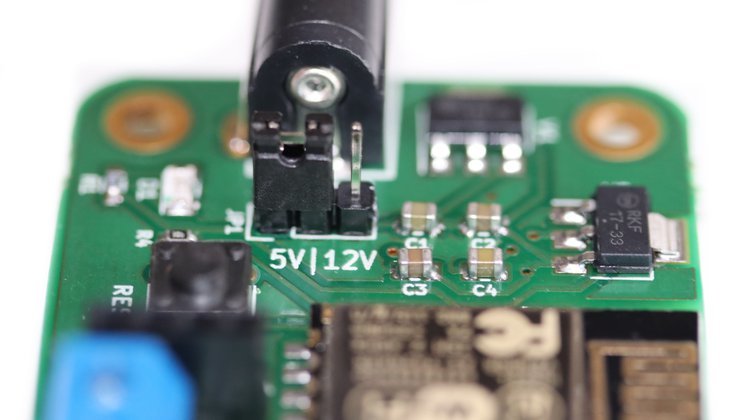

• Voltage input: Parallel support for two addressable 5V or 12V LED strips.

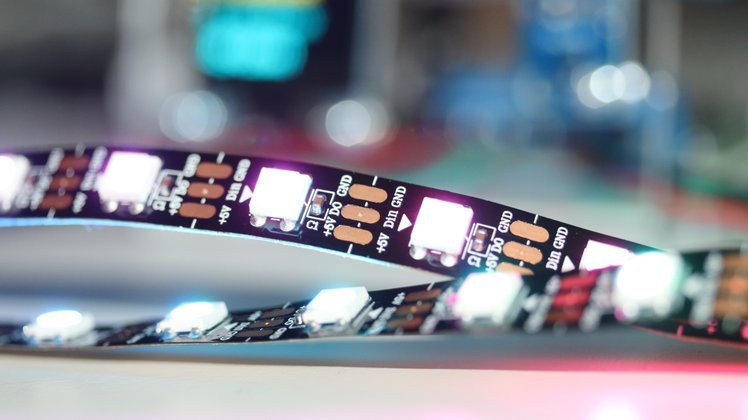

• LED compatibility: Open source Arduino with FastLED library supports various strips: WS2812, WS2812B, WS2811, TM1804, etc.

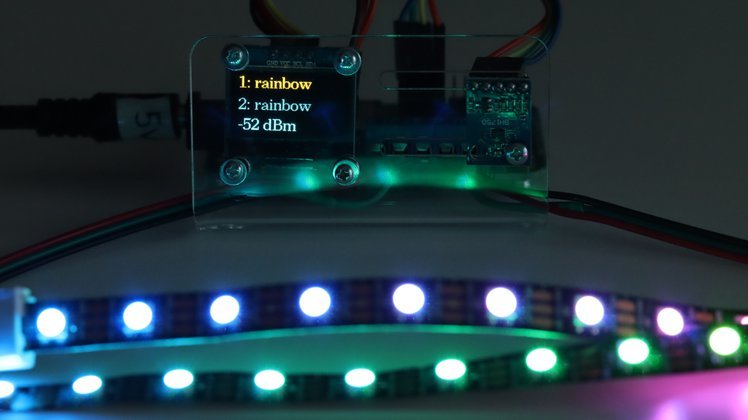

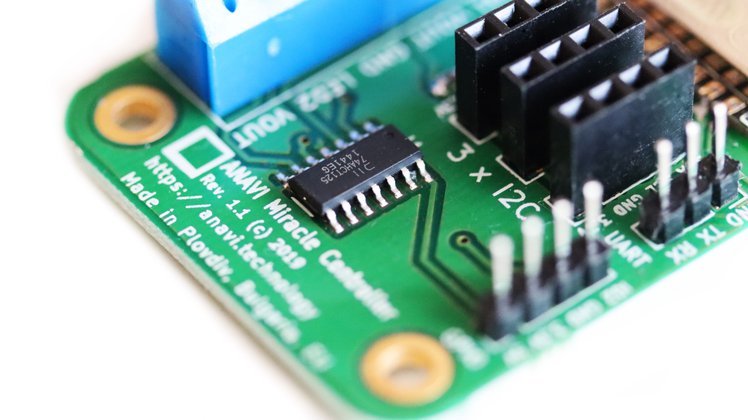

• Peripheral support: mini OLED display, UART, button, three slots for I²C sensors
• Software compatibility: Arduino IDE, PlatformIO, Home Assistant, OpenHAB 2 MQTT, and any modern web browser
• Open-source certification: Open Source Hardware Association (OSHWA) BG000050
• Dimensions: 75 mm x 40 mm (2.95 in x 1.57 in)

Package contents:

1x ANAVI Miracle Controller (board only)
