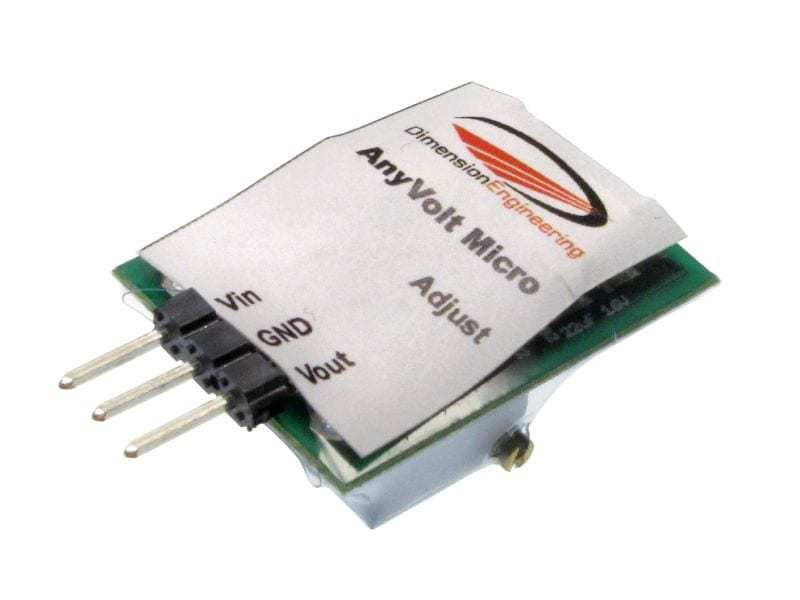

AnyVolt Micro Universal DC-DC Converter

The AnyVolt Micro is a miniature DC-DC switching converter capable of both boosting and bucking. Its output voltage is adjustable from 2.6 to 14V and can draw a current of up to 0.5A. The AnyVolt Micro is beneficial for situations where you need to step up from a lower voltage to a higher one, or when your input voltage occasionally drops below the desired output voltage.

Output voltage is set using a small screw potentiometer located on the side of the AnyVolt Micro. Once the output voltage is set, it does not matter whether the input voltage is higher, lower, or the same as the desired output; there will be no voltage dropouts.

The AnyVolt Micro is compatible with the common linear voltage regulator series 78XX, so it will work well with solderless breadboards and other popular prototyping methods.

The AnyVolt Micro is significantly different from any other DC-DC converter on the market, so please read the entire manual thoroughly before purchasing or using it.

The AnyVolt Micro is a smaller, lighter, and cheaper successor to the AnyVolt Mini. Additionally, it includes thermal, overcurrent, and short-circuit protection, making it very hard to destroy (like a zombie).

Model: AnyVolt Micro

Features:

• Output voltage range: 2.6 to 14 V
• Input voltage range: 2.6 to 14 V
• Maximum input or output current at < 10 V: 0.5 A
• (Current values at higher voltages can be found in the datasheet)
• Typical ripple: < 50 mV
• No external components required
• Protection features:
• Overcurrent protection
• Thermal (overheat) protection
• Short-circuit protection at output

Applications:

• Laboratory work and prototyping
• Powering 9V and 12V video transmitters
• Powering audio amplifiers
• Driving multiple LEDs in series
• Backlit LCDs
• Solar-powered devices
• High-power crystal-based radio transmitters
• Battery-powered devices
• Devices with renewable power sources
• Universal battery chargers
• Devices powered by two AA batteries
• Devices powered by a single lithium cell
• Mayhem powered via USB

Datasheet:

AnyVoltMicro.doc (178kb)
AnyVoltMicro.pdf (156kb)

Topology: SEPIC
