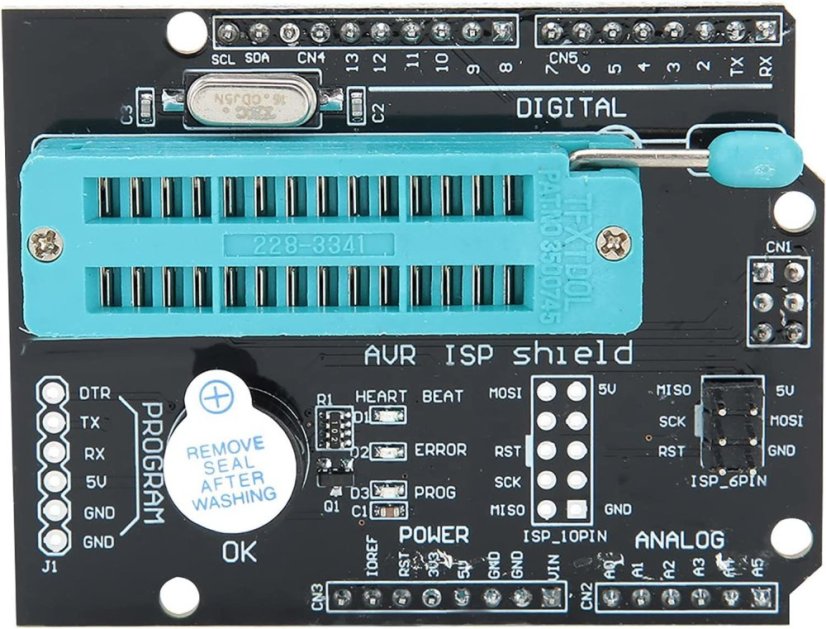

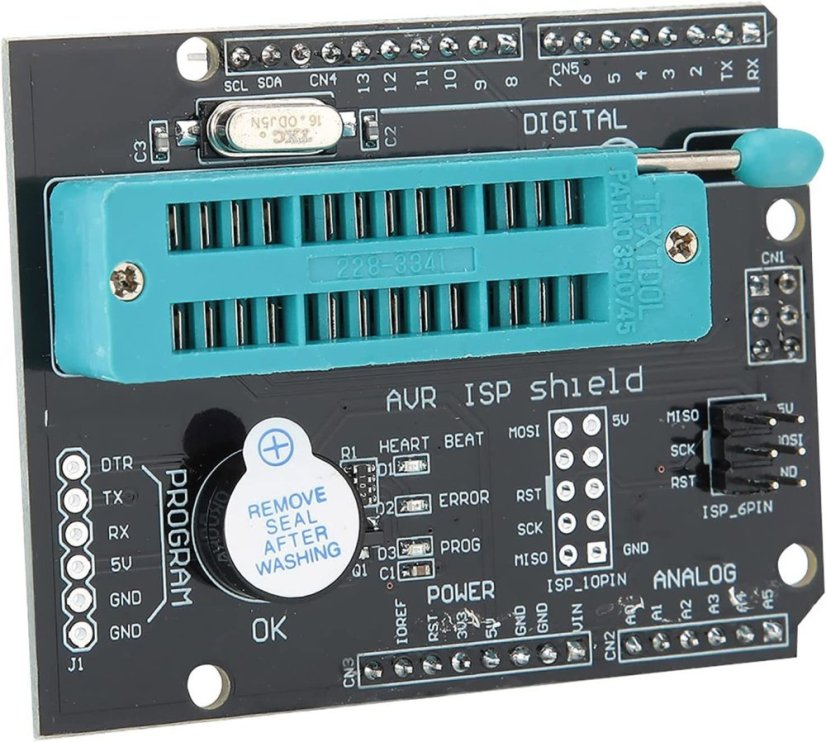

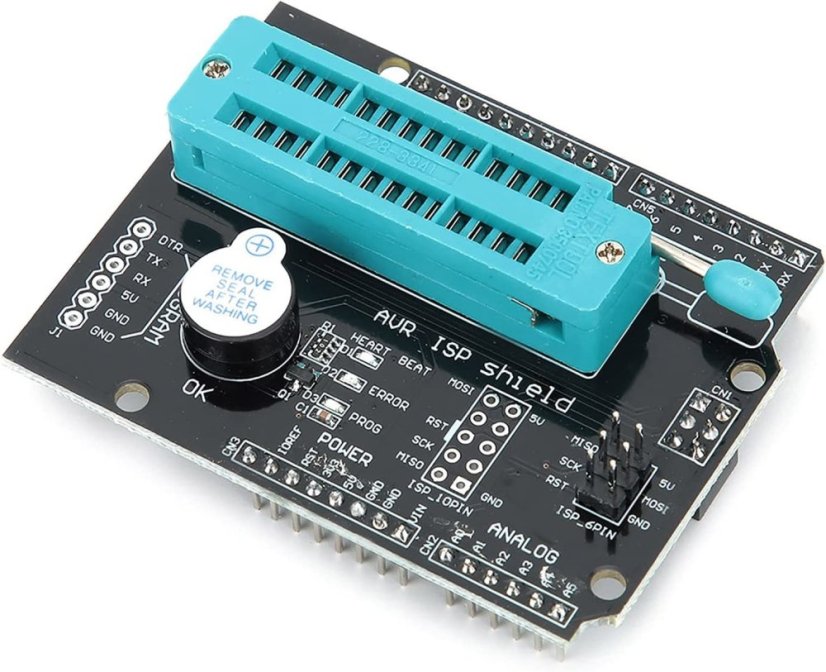

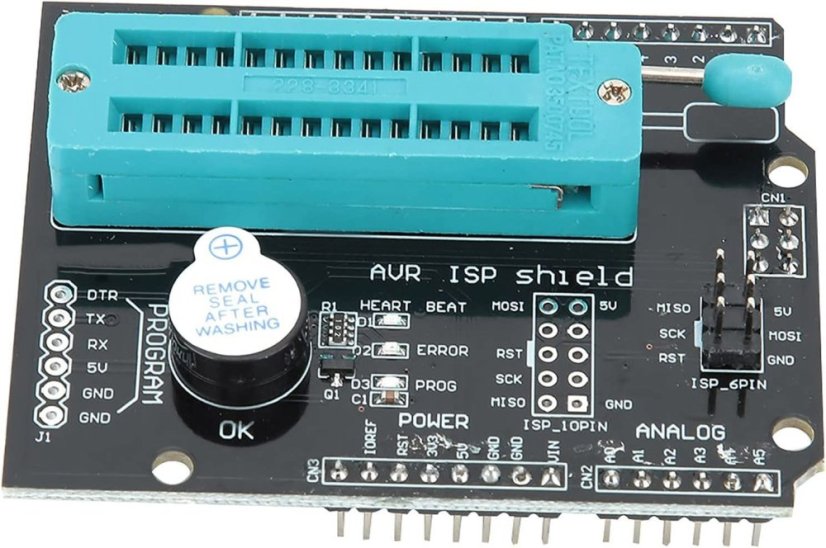

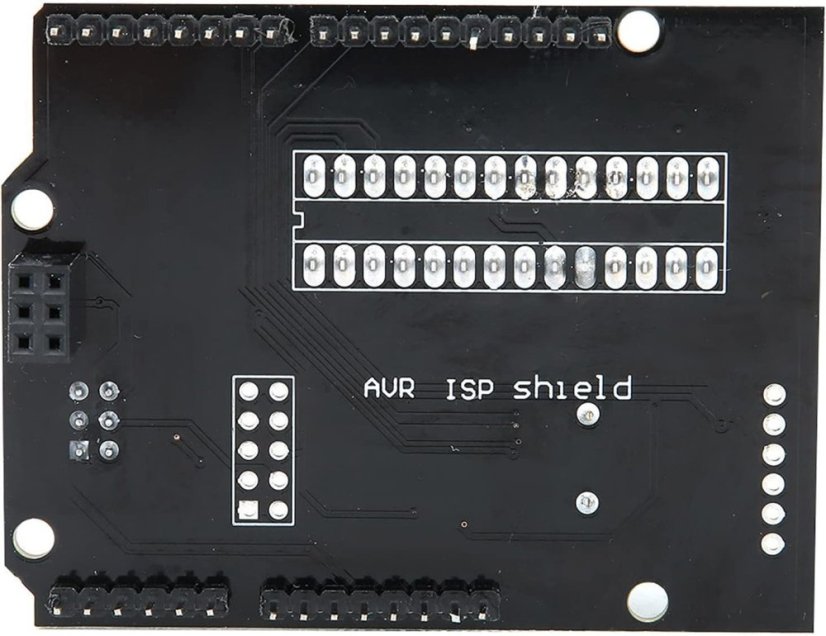

Arduino AVR ISP Shield

Arduino AVR ISP Shield


Arduino AVR ISP Shield for repairing bootloader or uploading to new ATmega microcontroller. More
Manufacturer: NEVEN Product code: 12448 shipping-link
7 EUR incl. VAT
< 5 pieces in Stock (1 ks)
Arduino AVR ISP Shield for repairing bootloader or uploading to new ATmega microcontroller. More
Manufacturer: NEVEN Product code: 12448 shipping-link

Arduino AVR ISP Shield

Use the shield for "repairing" the bootloader or when using a new ATmega microcontroller to upload the bootloader.

Features:

  • LED indicator
  • Built-in buzzer
  • 28-pin socket for uploading the bootstrap of Atmega 328P, Atmega 168P, Atmega 8.
  • Integrated ISP _ 6PIN interface for uploading the external bootloader of the board.
  • Integrated ISP _ 10PIN interface.
  • FT232RL or CH340G USB to UART chip, used for uploading code into the chip from PC
  • Supports: Support for UNO R3/ Mega2560/ Nano/ pro mini (5V 16M)


Package includes:
1 x Arduino AVR ISP Shield
