Arduino Due 2012 R3 ARM 32 Klon

Arduino Due 2012 R3 ARM 32 Klon

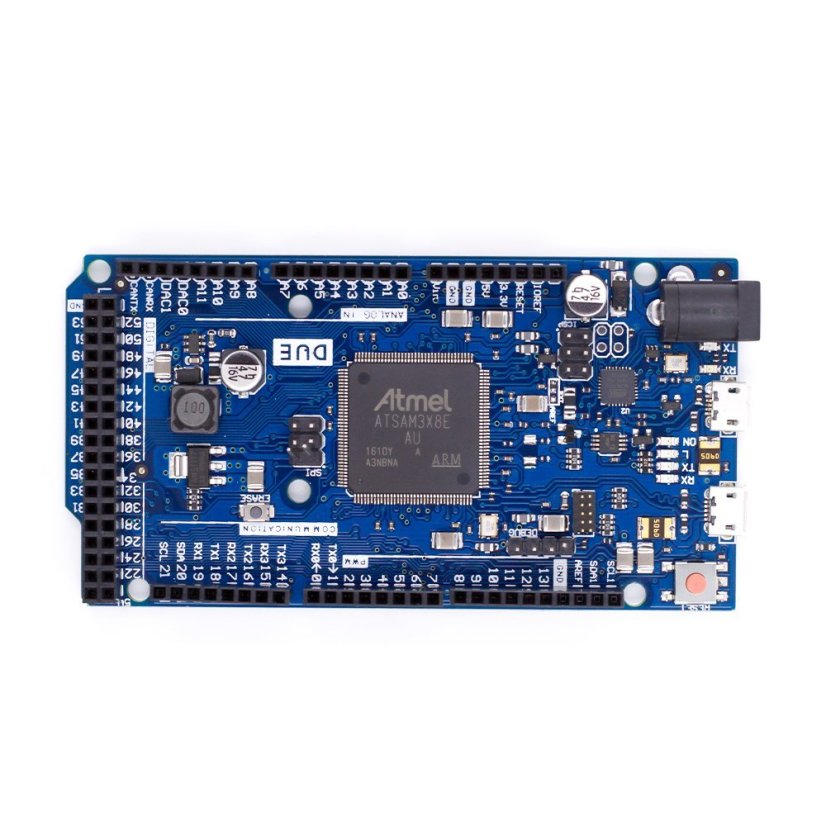

The Due is a clone of the Arduino development board with an Atmel SAM3X8E ARM Cortex-M3 microcontroller. Its 32-bit ARM Cortex-M3 core is a powerful chip designed for embedded applications requiring higher performance. The chip supports DMA memory access, offers a larger memory capacity, and allows addressing of multiple inputs and outputs. The board features 54 digital I/O and 12 analog inputs. There is also one LED on the board that can be controlled. Additional peripheral components need to be connected separately.

One advantage of the Arduino device is its easy connection to a computer and programming. The Arduino Due is equipped with a micro USB connector and, when connected to a PC, identifies itself as a serial port. Programming occurs within the intuitive Arduino IDE environment, using a language derived from Wiring. This results in very clear code, which separates the programmer from complex hardware configuration.

Parameters and specifications:

Microcontroller:

• Chip: Atmel AT91SAM3X8EA ARM Cortex-M3
• Frequency: 84 MHz
• Memory: 512 kB
• SRAM: 96 kB
• DMA support

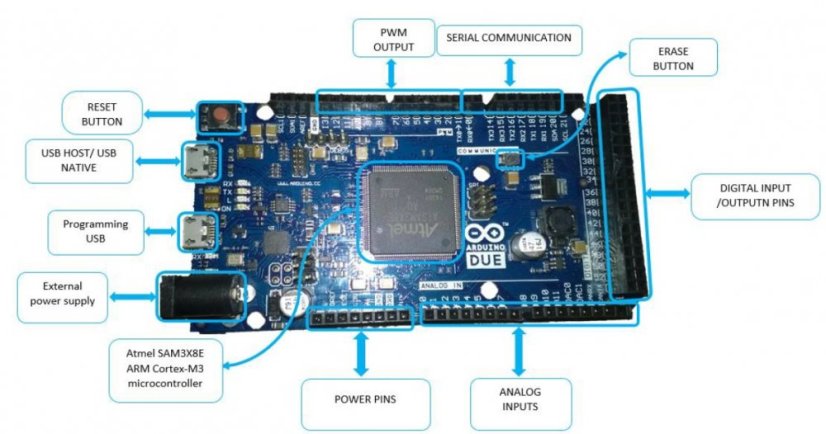

Inputs and outputs:

• 54 x digital I/O (Serial port, external interrupt, PWM)
• 12 x analog input

Interfaces:

• 2 x micro USB 2.0 (USB OTG)
• SPI connector, I2C, JTAG, TWI

Dimensions:
10.16 x 5.33 cm

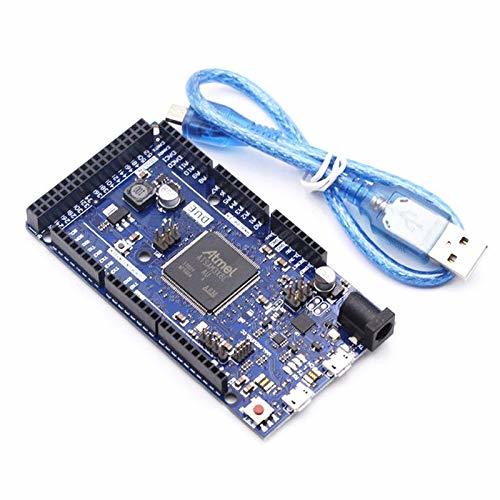

Package contents

• Due R3 board

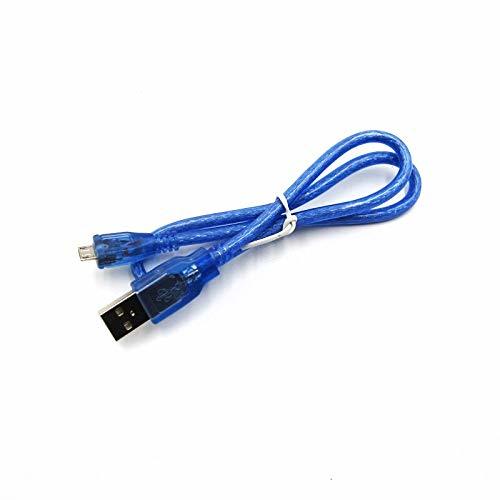

• USB cable
