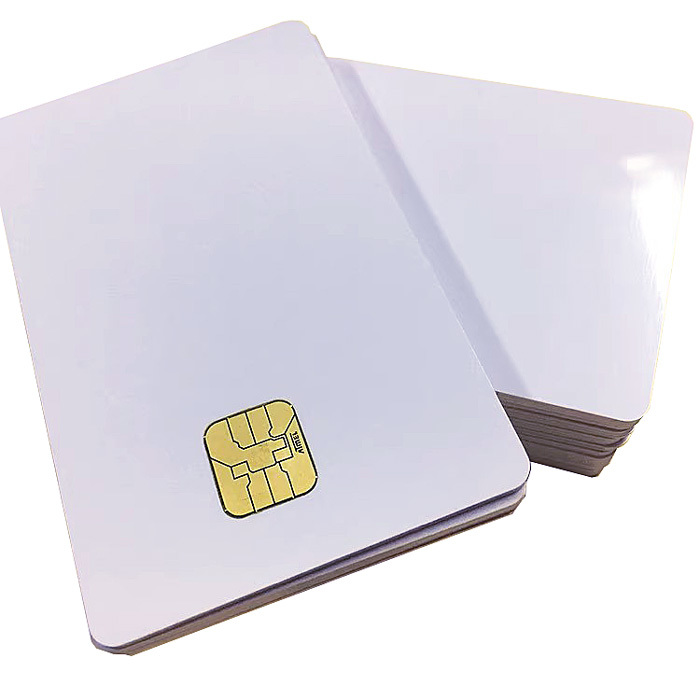

AT88SC102 Contact Chip PVC Card, White

AT88SC102 Chip Card

This contact chip card is based on the AT88SC102 chip from Atmel. The AT88SC102 is an encrypted memory card with a capacity of 1K bit, divided into two application areas of 64 bytes each. As long as the erase section password is correctly checked, all data in the area will be automatically erased.

Specifications:

• Chip: AT88SC102
• Type: Contact chip card
• Chip Capacity: 1KBits EEPROM
• Standard: ISO/IEC7816-3
• Read and Write Time: 3 ms
• Erase and Write Lifespan: >100,000 times
• Data Retention: >10 years
• Operating Temperature: -20 to 80 degrees Celsius
• Working Temperature: -20℃～+55℃
• Dimensions: 85.5*54*0.84(±0.04)MM
• Material: PVC, PET, PETG
• Weight: 5.8g-6g

Datasheet: http://ww1.microchip.com/downloads/en/DeviceDoc/doc1419.pdf
