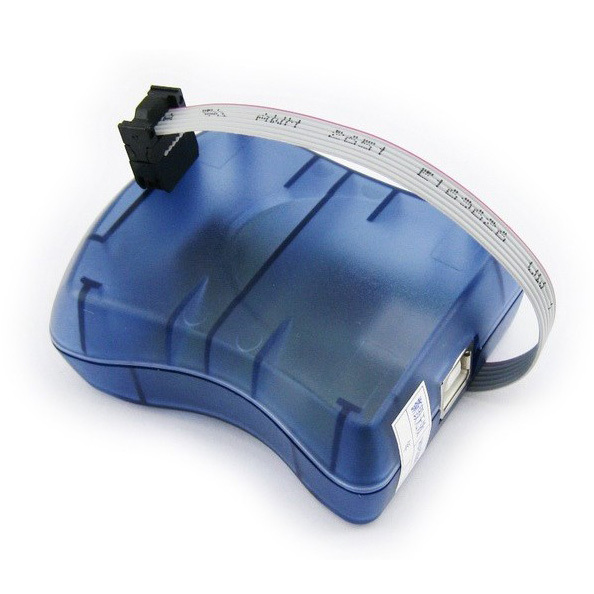

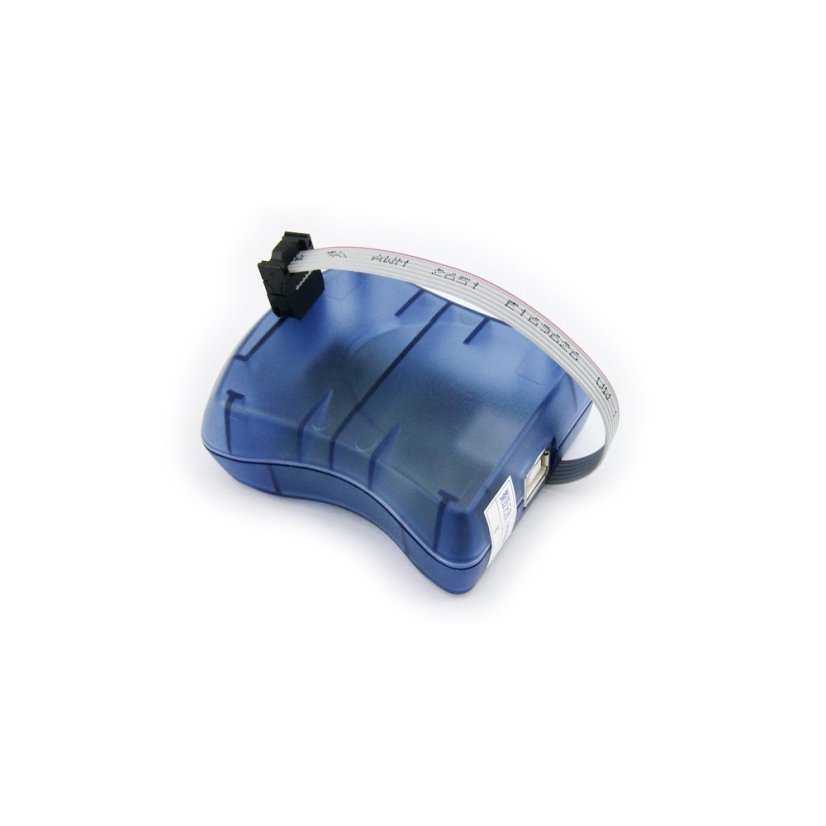

AVR USB programmer AVRISP mkII/AVR ISP mk2

ISP programmer for AVR microcontrollers, compatible with ATMEL Studio 7.

With the AVR ISP mk2, you can program 8-bit microcontrollers from Atmel via ISP, PDI, or TPI interfaces. Atmel provides the necessary software tools for AVR Studio®; ISP interface is used for MegaAVR microcontrollers, while both ISP and TPI can be used for TinyAVR, and PDI for AVR XMEGA. Online documentation for AVR Studio offers up-to-date information and a complete list of supported devices.

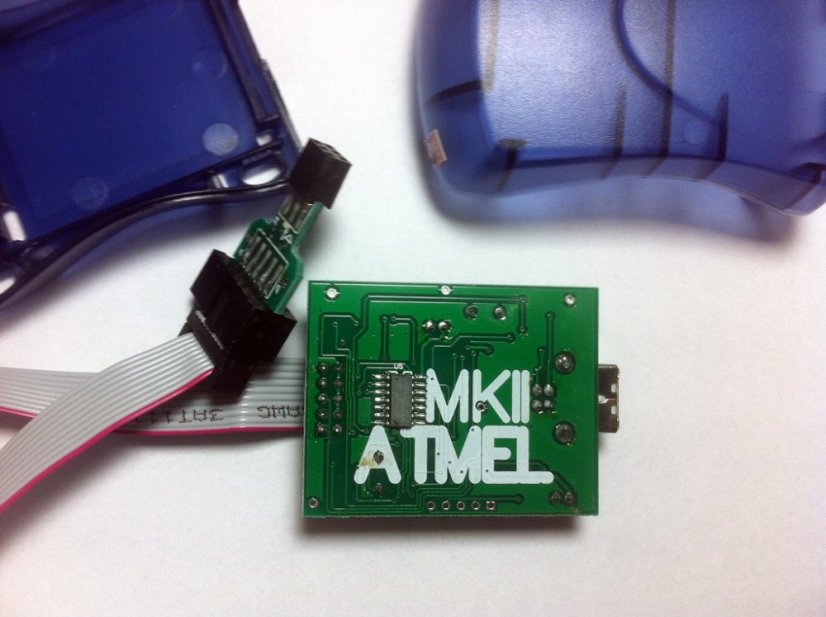

• Based on the ATMega128A chip
• Supports AVR Studio 4, AVR Studio 5, ATMEL Studio 6, ATMEL Studio 7
• Connection to PC via USB 2.0
• No external power supply needed

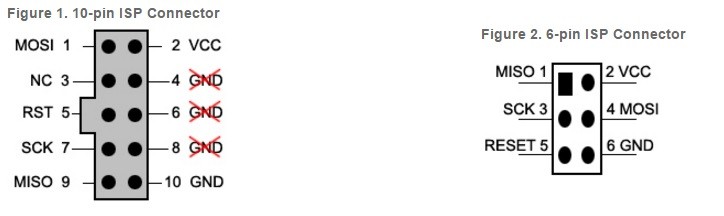

• Uses 2x5 pin ICSP and 2x3 pin PDI and TPI connectors
• Works with 5V and 3.3V devices and can power them
• Programs both flash and EEPROM
• Dimensions: 70x50x25 mm (2.76x1.97x0.98 inches)
• Country of origin: China

Package includes:
1x AVR ISP programmer

1x USB cable
1x 10-pin ISP cable

WARNING: This is a DIY programmer intended for advanced users who know how to use it. To function, it requires only libusb drivers. It is delivered without programming software. The user is responsible for finding, installing, and setting up the programming software. There are many free programming applications compatible with this programmer. Links to several of them are provided below. We provide these links without warranty or support.

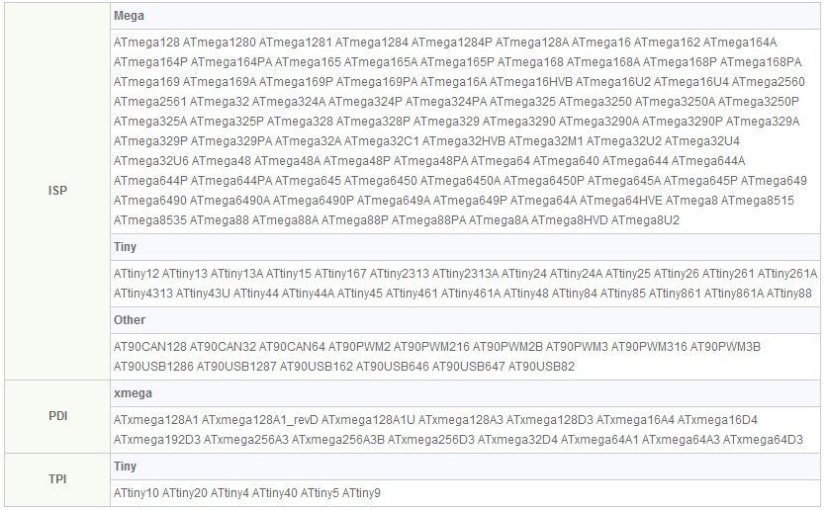

WARNING: This list of supported chips is provided by the manufacturer. Please do not call us regarding chips not on the list as we do not know and cannot guarantee whether they are supported.

Atmel Studio Supported Devices: http://www.atmel.com/webdoc/atmelstudio/supported_devices.html

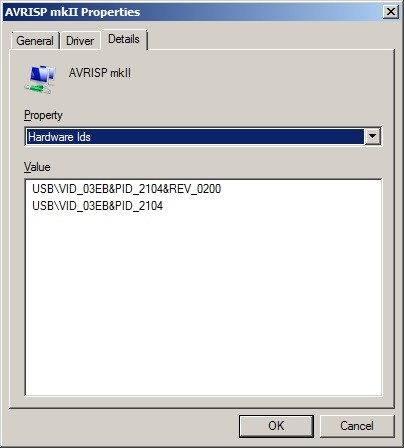

Drivers: http://uloz.to/xS1GZCtV/avrispmkii-libusb-win32-1-2-1-0-zip

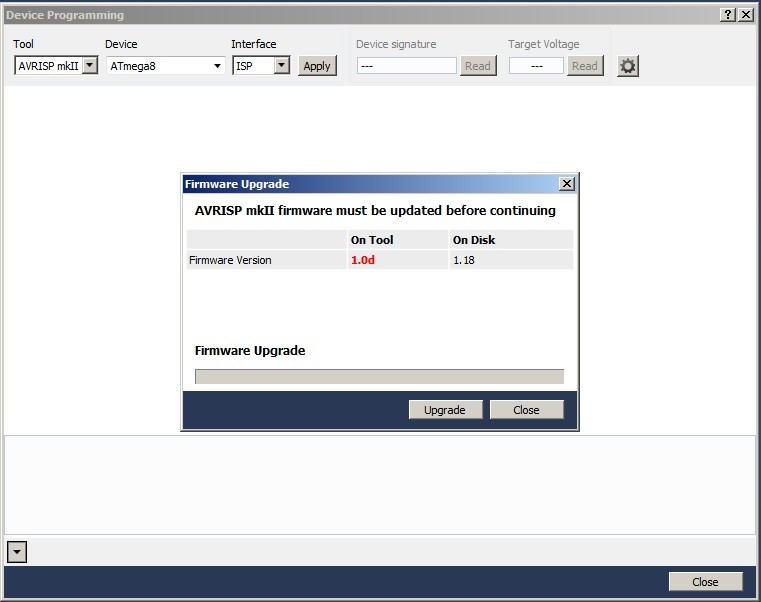

Software Atmel Studio 7: http://www.softpedia.com/get/Science-CAD/Atmel-Studio.shtml
