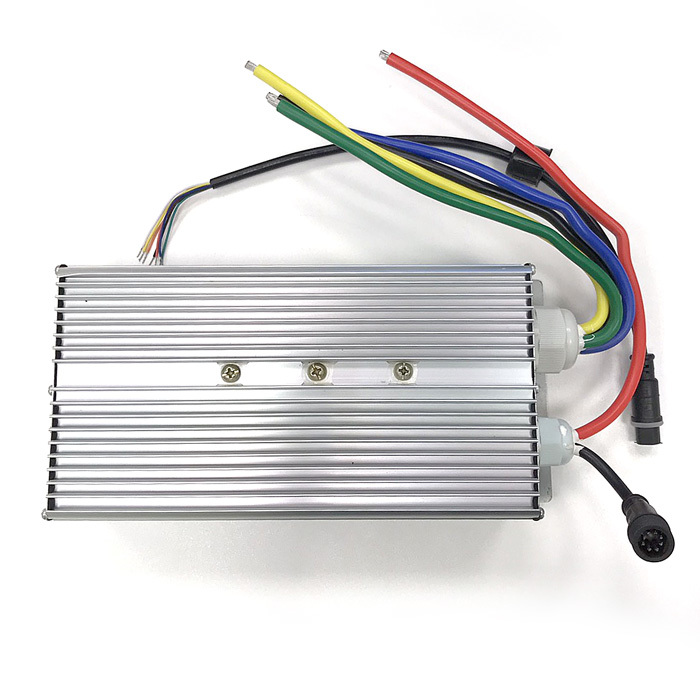

BLDC Motor Controller PWM 300-2400W
Variants7
| Motor driver – Operating voltage | Motor driver – Maximum current | Motor driver – Continuous operating power | Motor driver – MOSFET | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|---|---|---|
 |
20-48V | 15A | 300W | 6 MOSFET | Out of Stock Watch availability | 81,60 EUR | Demand | ||
|
24-36V | 30A | 700W | 12 MOSFET | in stock | 85,60 EUR | |||
 |
24-36V | 35A | 1000W | 15 MOSFET | in stock | 134,50 EUR | |||
|
24-36V | 40A | 1400W | 18 MOSFET | Out of Stock Watch availability | 35,80 EUR | Demand | ||
 |
24-36V | 45A | 1600W | 18 MOSFET | in stock | 74,40 EUR | |||
 |
24-36V | 60A | 2000W | 24 MOSFET | in stock | 68,30 EUR | |||
 |
24-36V | 80A | 2400W | 24 MOSFET | in stock | 126 EUR |
MF18G45A BLDC Motor Controller PWM 300-2400W
This BLDC controller is suitable for 3-phase brushless sensorless motors. Due to its simplicity and low cost, it is very suitable for converting old alternators into powerful DC motors.
Specifications:
- Model: MF24GxxA
- Operating Voltage: 20-48V/24-36V
- Max Current: 15A, 30A, 35A, 40A, 45A, 50A, 80A
- Continuous Power Output: 300W, 700W, 1000W, 1400W, 1600W, 2000W, 2400W
- PWM Speed Regulation PWM Frequency: 1-20KHZ
- Duty Cycle: 0-100 %
- Analog Voltage Speed Control: 0-5V
- Protection: overcurrent, short circuit, overheating
- Speed Signal Output: YES
- Operating Temperature: -20 +85℃
All models support an input voltage of 12V, but the controller may begin to heat up.
Working Principle of BLDC motor and Controller
Wiring Diagram
Bidirectional Speed Control
Separate Speed Control for Each Direction
