BMS HXYP-6S-CW16 6-Cell 24V 10A

BMS HXYP-6S-CW16 6-Cell 24V 10A

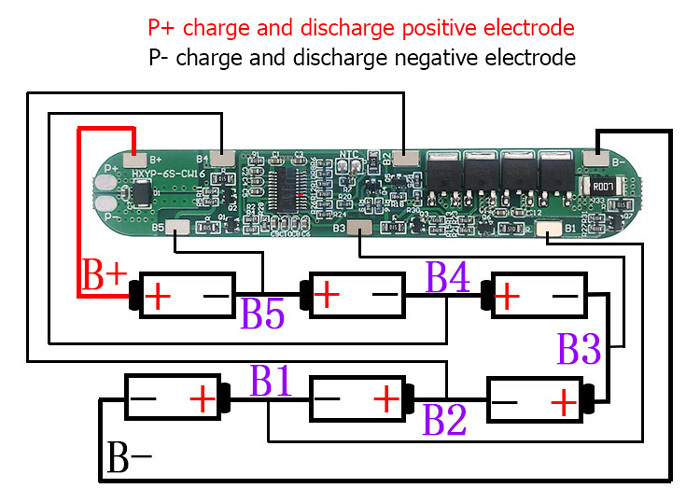

Battery protection and charging module (BMS) for six Li-Ion cells with individual monitoring of each cell. Suitable for nominal voltage of lithium battery 3.6V, 3.7V (including 18650 and 26650 cells).


Technical Specifications:

• Model: HXYP-6S-CW16
• Charging Voltage: 25.2V - 26V
• Continuous Discharge Current: 10A ± 1A
• Maximum Discharge Current: 14A ± 1A
• Continuous Charge Current: 7A ± 1A
• Maximum Charge Current: 10A ± 1A
• Overcharge Voltage (per cell): 4.25V ± 0.025V
• Overcharge Voltage Reset (per cell): 4.15V ± 0.08V
• Undervoltage (per cell): 2.7V ± 0.05V
• Undervoltage Reset (per cell): 3V ± 0.1V
• Balanced Starting Voltage: 4.125V
• Overheat Protection: -10℃ to +70℃
• Weight: 7 g (0.015 lbs)

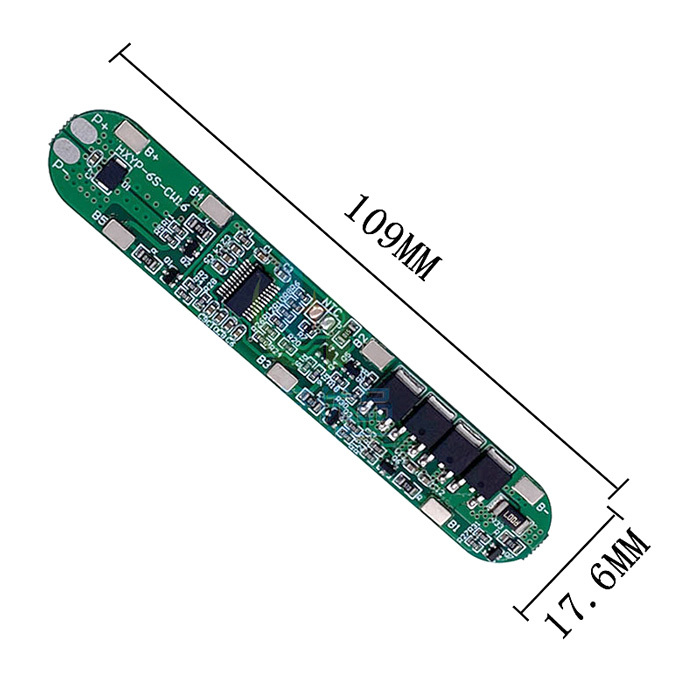

• Dimensions: 109.4 x 17.6 x 3.6 mm (4.31 x 0.69 x 0.14 in)
