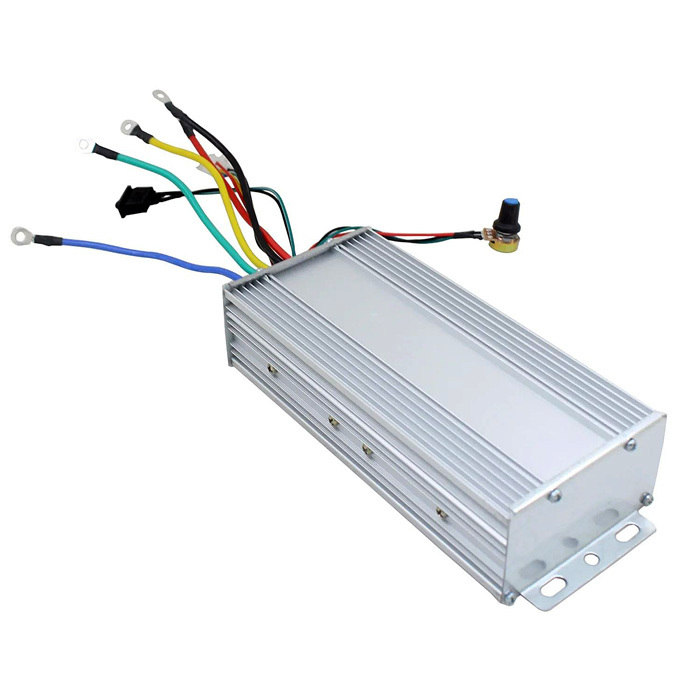

Brushless Controller DC1248-01 for Lawn Mower 12-24V
Brushless Controller DC1248-01 for Lawn Mower 12-24V
Variants2
| Output current | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|
| 30A | in stock | 54,40 EUR | ||||
| 40A | Out of Stock Watch availability | 67 EUR | Demand |
Brushless Controller DC1248-01 Lawn Mower 12-24V 30A/40A
This high-performance controller for brushless motors (BLDC) is ideal for controlling water pumps, oil pumps, air pumps, and fans powered by three-phase DC brushless motors. It is also well-suited for high-performance motor drives like lawn mowers and boat propellers.
Specifications:
- Model: DC1248-01
- Operating voltage: 12-24V
- Maximum current: 30A, 40A
- Continuous power output: 700W, 950W
- Duty cycle: 0-100 %
- Analog voltage speed control: 0-5V (10k potentiometer)
- Protection: overcurrent, short circuit, overheating
- Speed signal output: NO
- Operating temperature: -20 to 85℃
Note: The positive and negative terminals of the power supply controller cannot be connected in reverse and it should not be used continuously at currents exceeding the maximum current. A universal BLDC controller does not exist, and some models of high KV value aircraft motors may not be compatible.

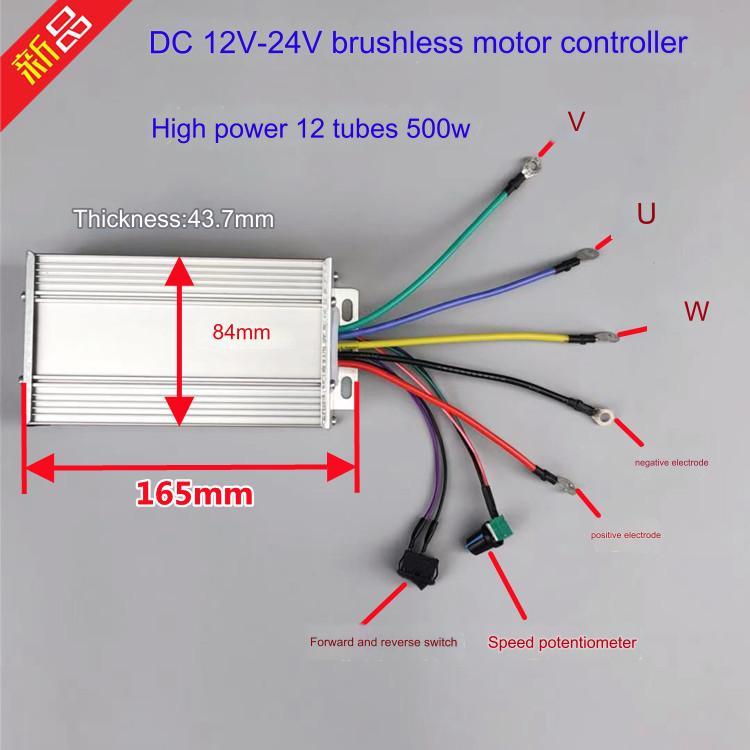

Wiring Diagram

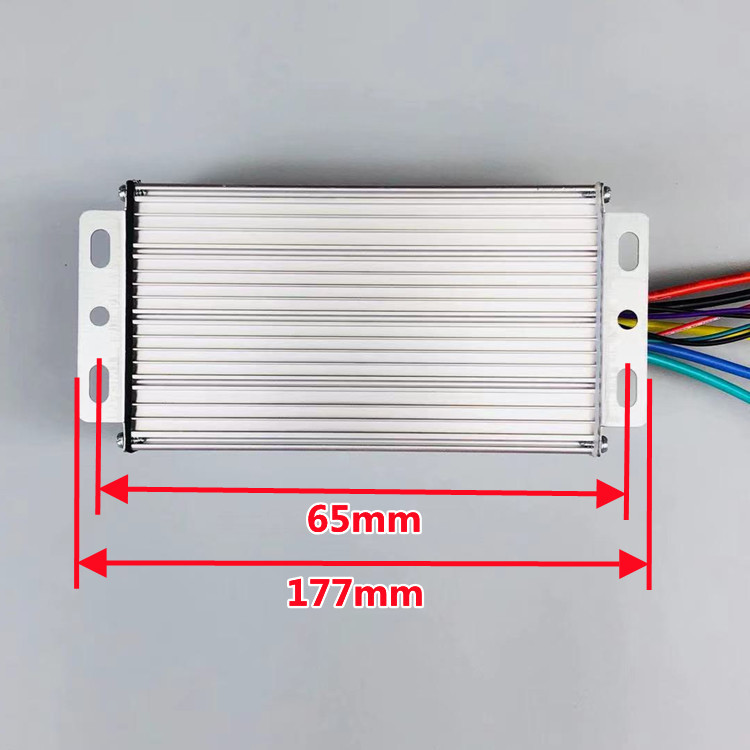

Dimensions:
