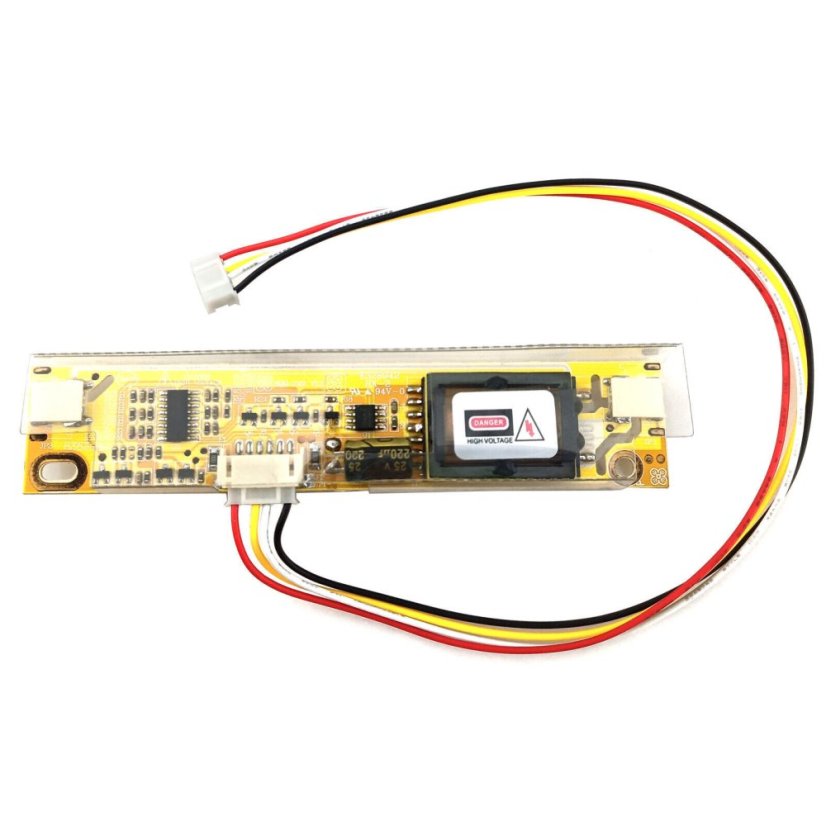

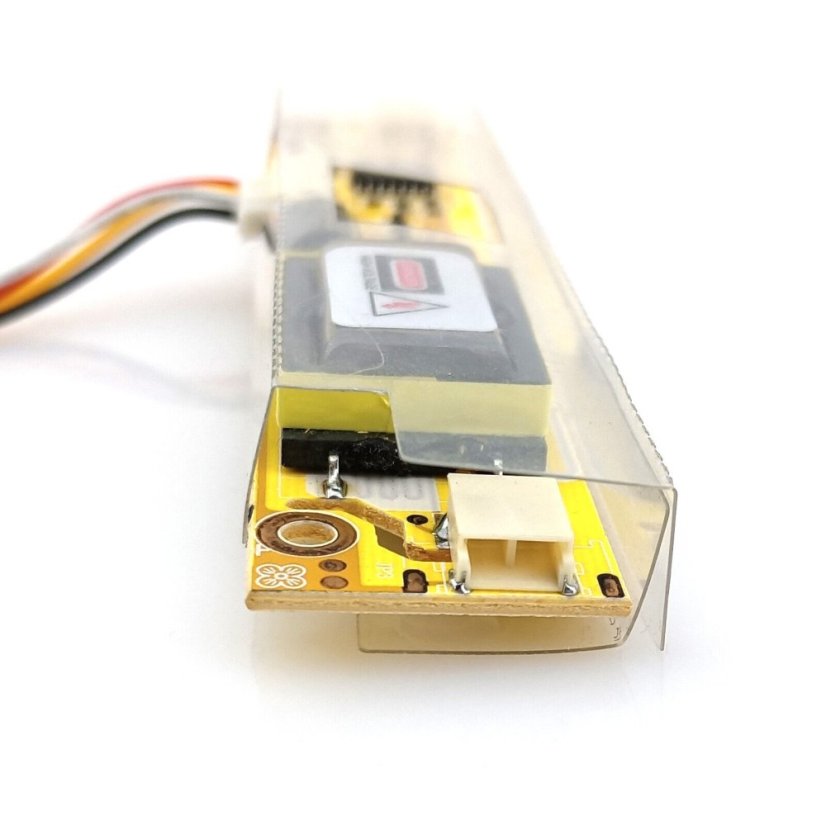

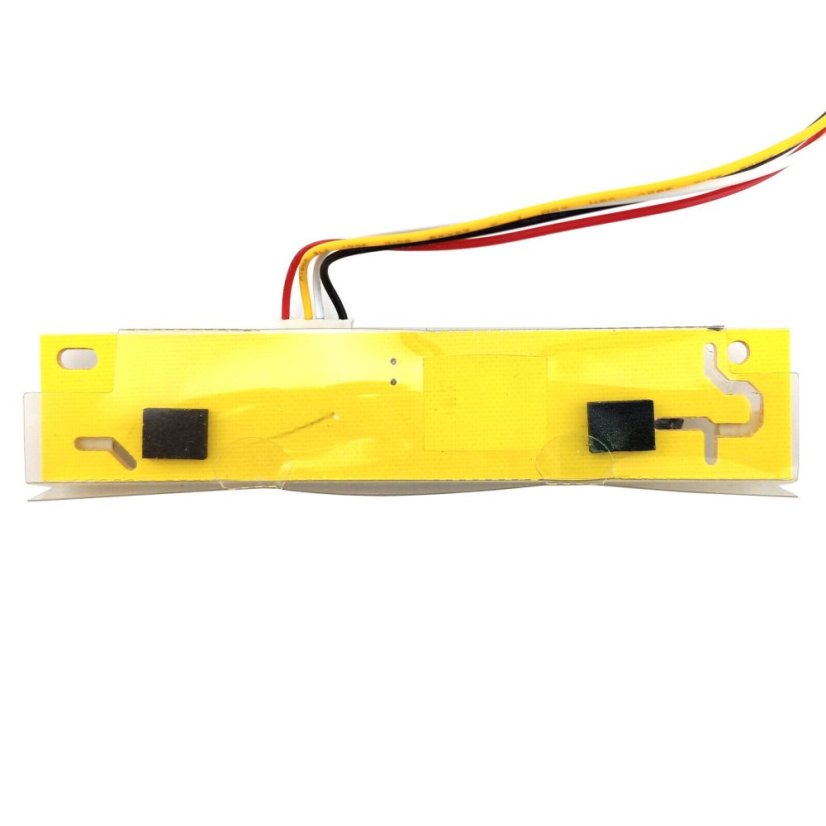

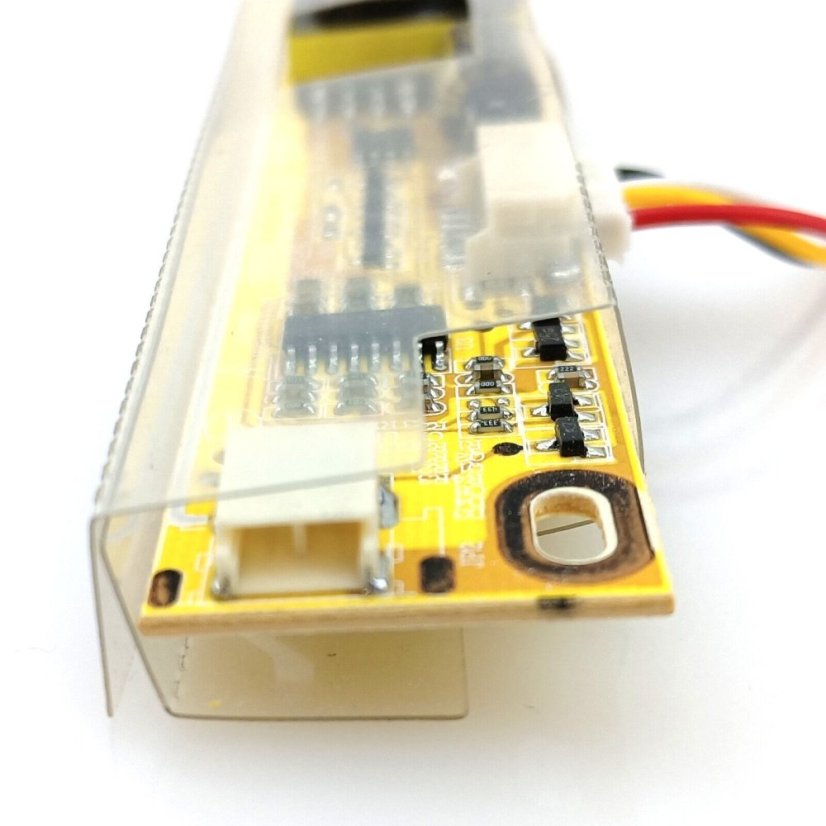

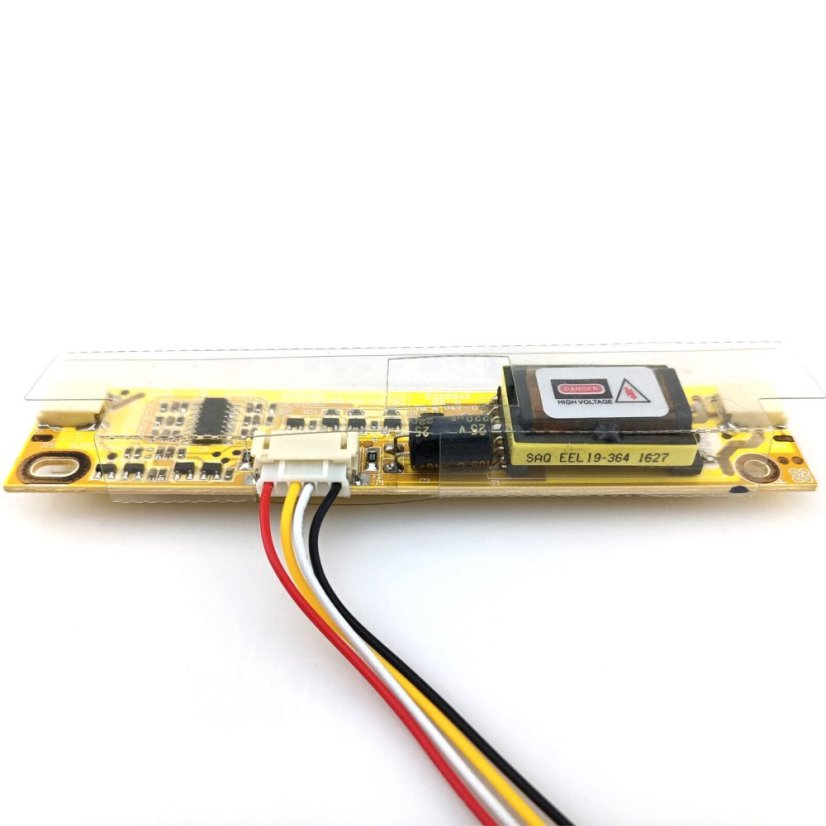

D1 Inverter for CCFL Tubes 10-27" 12V

Inverter for CCFL Tube Display 10-27" 12V

The inverter is a part of the display that functions as a DC/AC voltage converter, generating an alternating voltage of approximately 60V from the supplied direct current. This voltage is essential for igniting and lighting gas in CCFL tubes, which are used to backlight LCD displays in laptops.

Specifications:

• Model: D1 / SQB-249 v1.2
• Input Voltage: 10-28V
• Output Voltage: up to 60V
• Output Current: 120 mA, 180 mA, 200 mA, 260 mA, 320 mA, 400 mA
• Suitable for: Tubes for 10-27" displays
• Over Voltage Protection (OVP)
• Open and Short Circuit Protection
• Over Current Protection (OCP)

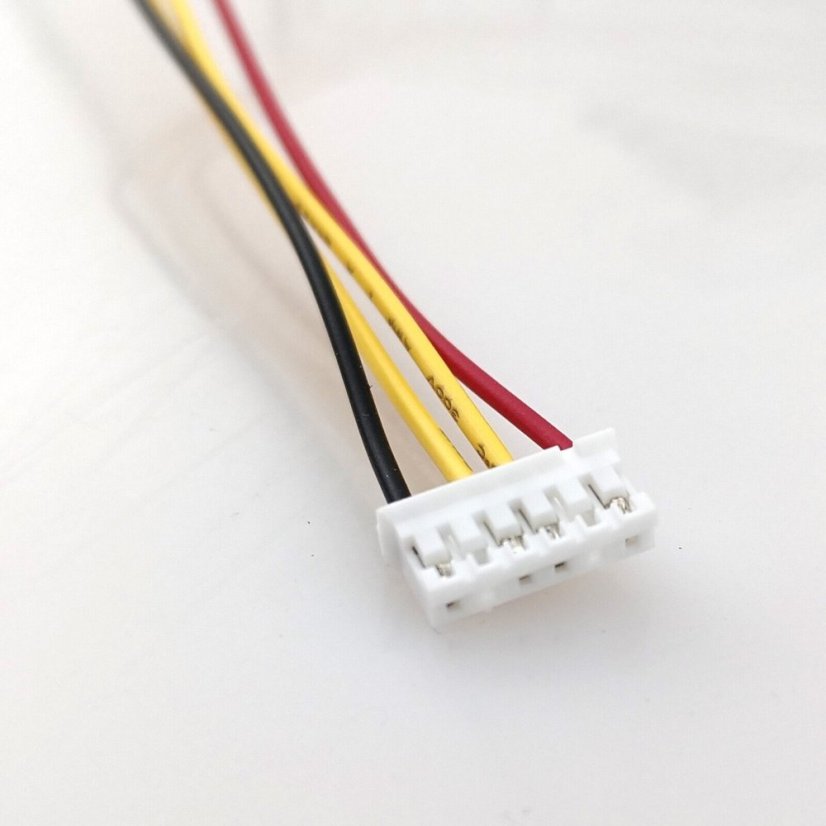

• Connector: 6 Pin
• +12V: Power Supply Voltage 10.0---14V
• Ena: On/Off Voltage 2-5V On / 0-1V Off
• BRI: Brightness Voltage 0-5V (0V = brightest)
• Gnd: Ground 0V
• Dimensions: 12.5x2.5 cm

Package Contents:

1x Inverter

1x DC Cable
