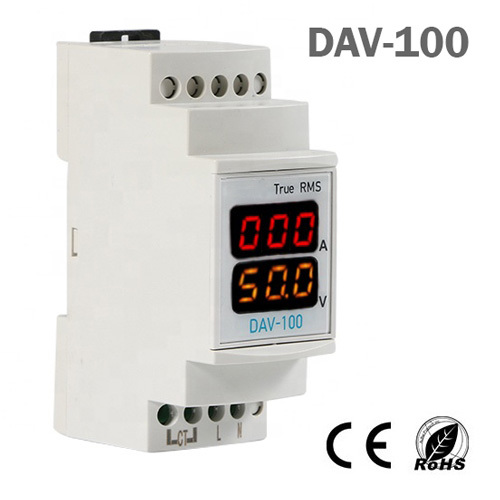

DAV-100 Single-Phase LED Ampere and Voltmeter DIN

DAV-100 Single-Phase LED Ampere and Voltmeter DIN

The DAV-100 voltmeter and ammeter with DIN rail is designed to monitor the values of alternating current and alternating voltage for relevant phase lengths.

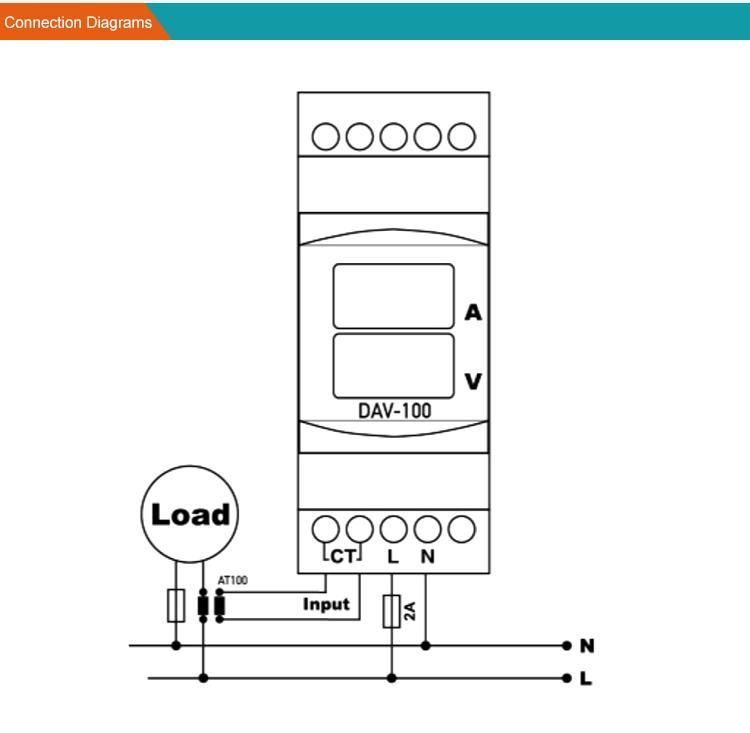

When charging the device, you must use the AT100 current transformer. Connect the current transformer to the input terminals on the device using wires. The values on the device are set with regard to the use of the current transformer. Therefore, do not use current transformers from other brands or models. When charging the device, the current and phase-neutral voltage sources are connected to terminals A1 and A2, displayed on the screen. The device shows a voltage value in the range of 150V-260V and a current value in the range of 0.2A-200A AC.

Specifications:

• Power supply: 150-250V AC
• Operating frequency: 50/60HZ
• Operating temperature: -5°C~55°C
• Current measurement range: 0.2-200A
• Current transformer: AT100
• Voltage measurement range: 150-250V AC
• Protection class: IP44
• Display: 8mm 3-digit display
• Connection type: Instant connection
• Weight: 169g

Package Contents:

1x DAV-100 LED Ampere and Voltmeter
1x AT100 current transformer

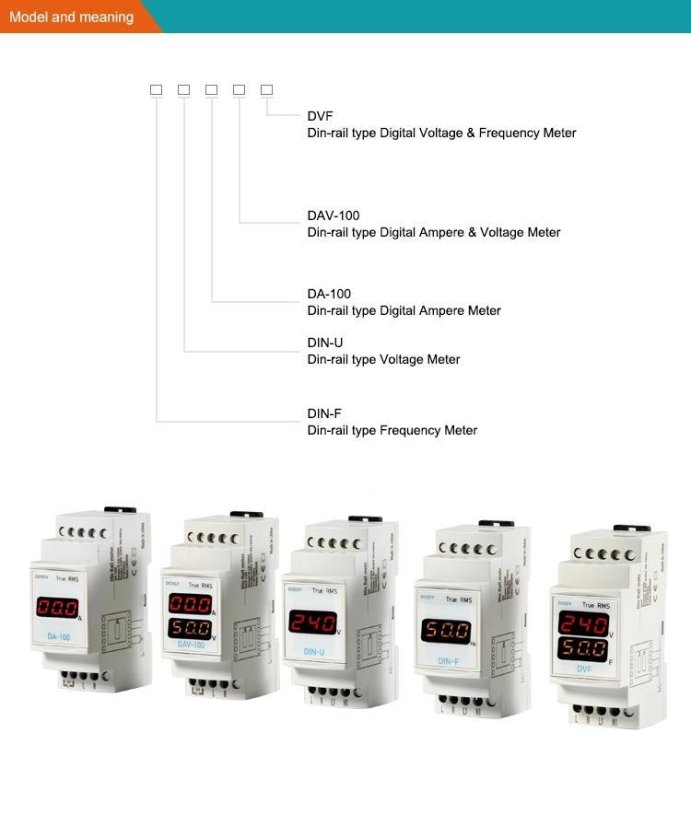

Model Selection:
