DE-SW0xx 1A Voltage Switching Regulator - 3.3/5V

The DE-SW0xx family of voltage switching regulators is designed to easily add the benefits of switched power to both new and existing projects. It efficiently steps down higher voltage to an output value of 3.3/5V in a compact manner. The DE-SW0xx is compatible with common linear voltage regulators (78XX) and includes integrated decoupling capacitors, making external capacitors typically unnecessary.

For orders over 50 units, we can customize the regulators to provide nearly any output voltage. Please contact us for more information. We also offer quantity discounts.

Need a different voltage? Check out DE-SWADJ.

If you have never soldered before, our breakout boards may be helpful.

Features:

• Model:

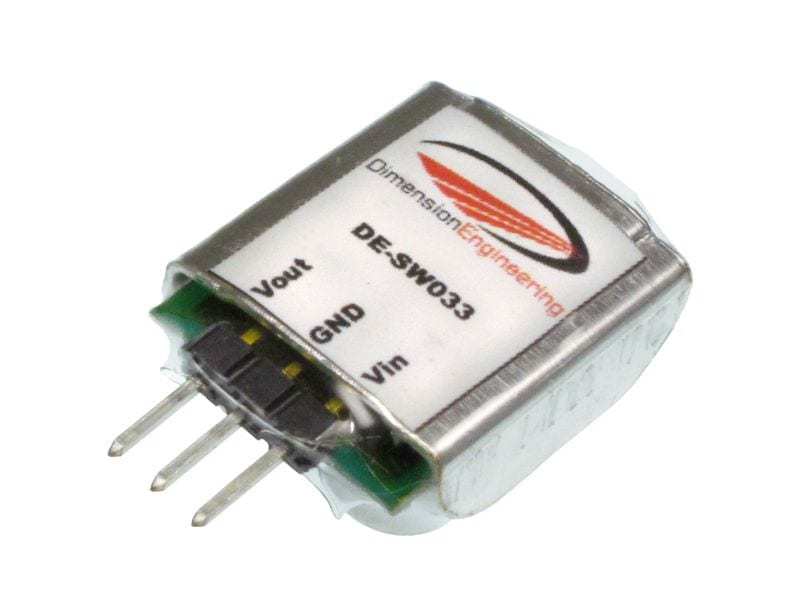

• DE-SW033 - 3.3V

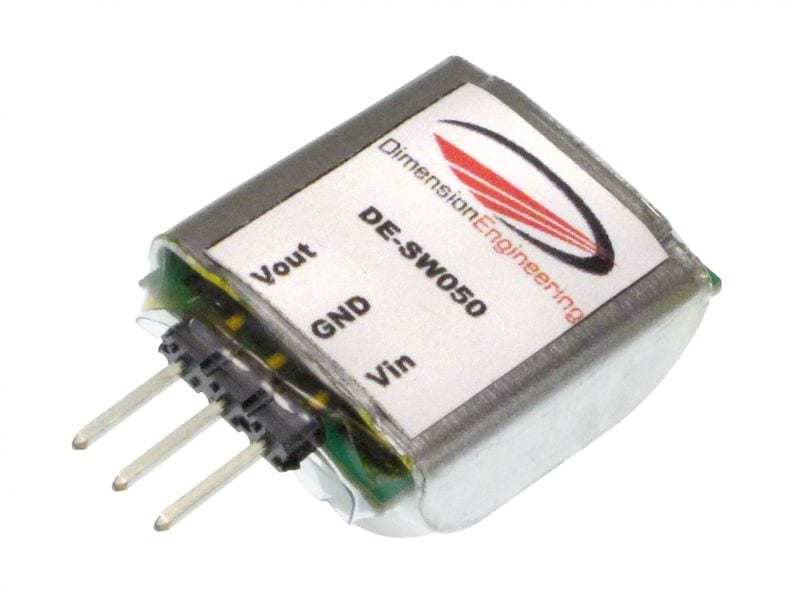

• DE-SW050 - 5V
• Input voltage range up to 30 V
• Typical efficiency: 83%, maximum efficiency: 87%
• Ripple: < 2%
• Output current: 1 A (continuous)
• Peak output current: 1.25 A (1 min)
• Typical dropout voltage at full load: 1.3 V
• Can be connected in parallel

Applications:

• Battery-powered devices
• Robots
• Load point voltage regulation
• Any application where a linear regulator or LDO dissipates too much heat or a heatsink is too large

Datasheet:

DE-SW0XX.doc (627kb)
DE-SW0XX.pdf (877kb)

Manufacturer: Dimension Engineering USA
