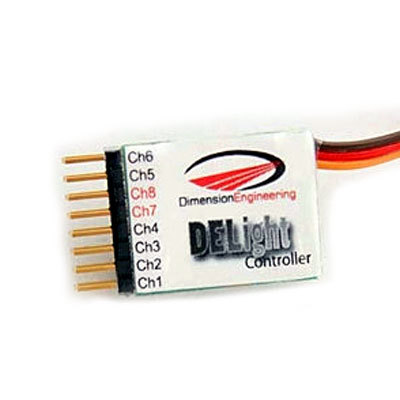

DELight R/C Lighting Controller

The DELight controller is the most advanced R/C lighting controller ever made. It features high-output performance and unparalleled customization options, all packed into a lightweight and user-friendly design.

The controller has six adjustable channels, with each channel using a designated sequence. With the transmitter, you can switch between sequences. For example, you can set LED lights to function as tracking lights at over 60%, stay illuminated between 60% and 20%, and turn off below 20% input. You can also set brake lights to turn on brightly when braking. You can even set Morse code sequences to blink from the signaling lamp on the boat. Each channel's cut-off point is independent, allowing you to have different lights active at different points. A good example is exhaust lighting, where the engine lights may turn on at 30%, but afterburner effects only at 80%.

Four channels are adjustable for both current and sequence, making it easier to achieve effects like strobing, fading, and shimmering. These channels are true analog current sources controlled by feedback, meaning there’s no need to use resistive thresholds when using channels 1-4.

Two of these channels are high-output on/off channels, each with an output of up to 2A. These channels are used to turn large light arrays on and off during night flying. They can also be used to control auxiliary systems, such as smoke pumps, drop bombs, or neon leads.

If a radio signal is not available, the DELight controller will automatically launch a user-defined sequence. This way, it can function as a standalone lighting controller for effects, even without a radio signal.

The DELink software used for creating lighting programs includes a simulator that makes it easy to view and modify programs without constantly switching between the desktop and the computer. The software is available for download, allowing you to prepare programs even before you have the hardware, or you can share your light creations with friends.

The DELight controller and LED diodes operate on BEC power, so it is strongly recommended to use a BEC or RX switching set if you are using a larger number of lights at full brightness.

Product Specifications:

Instructions:

• Manual and Installation Guide
• Programming Guide
• Programming Tutorials

Software:

• Download DELight Software
• Default Program
