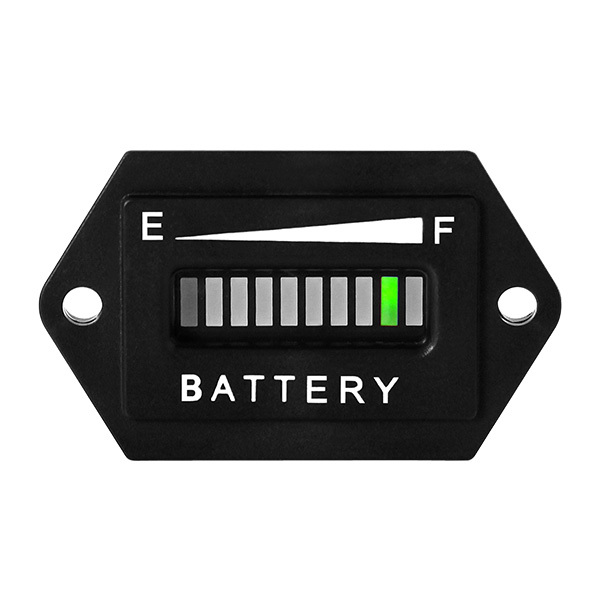

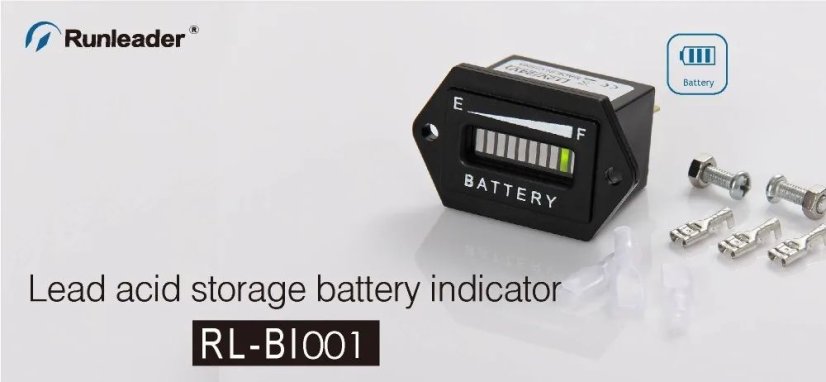

Digital Battery Status Indicator RL-BI001

Digital Battery Status Indicator RL-BI001, Car Battery Capacity Tester

The RL-BI001 battery indicator displays the remaining energy in the battery based on voltage changes and is compatible with most lead-acid batteries.

Specifications:

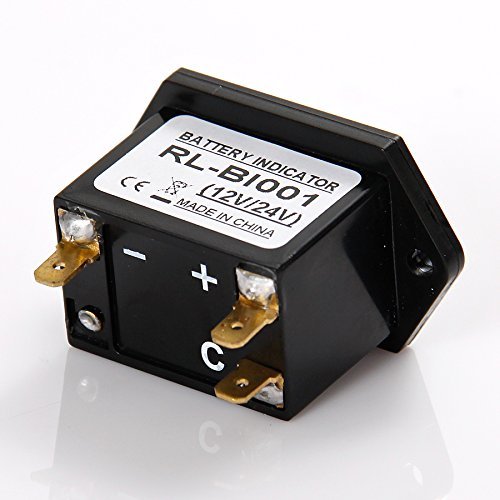

• Model: RL-BI001 / RL-BI001-1
• Product Code: XBI001AC600A
• Product Name: Battery Indicator
• Battery Type: Lead-acid battery
• Voltage Range: DC 12/24V, 36V, 48V, 72V

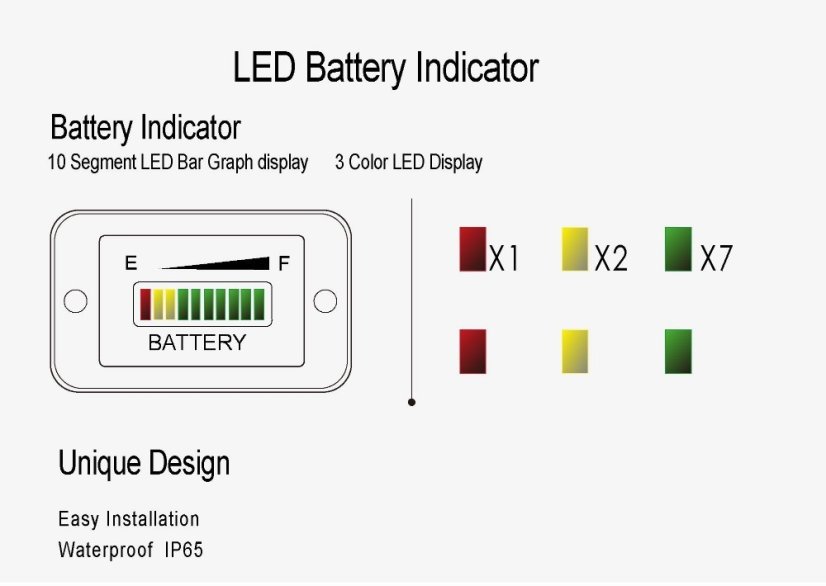

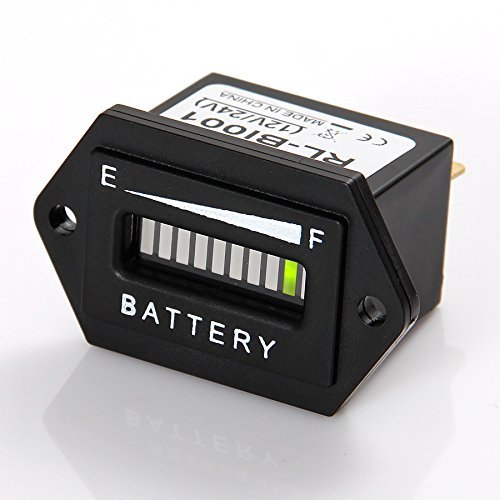

• Display Mode: 10-segment LED display

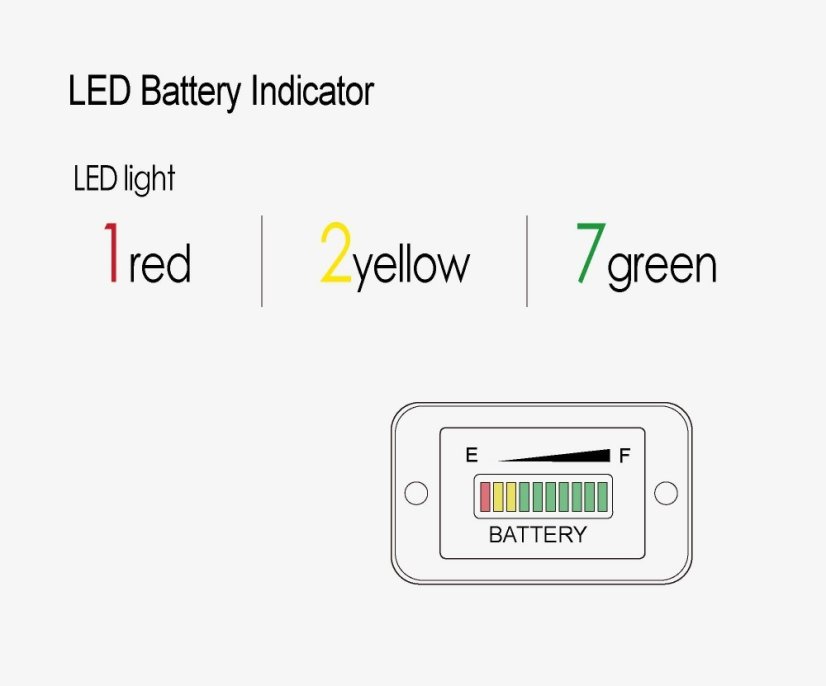

• LED Colors: 1 red, 2 yellow, 7 green
• Display Mode: Single display
• Parameter Settings: No
• Discharging Mode: Gear down, default: 155 s
• Charging Mode: Gear up, default: 200 s
• Voltage Display Accuracy: ±0.5 %
• Operating Voltage: DC 9-85V
• Operating Current: ≤100mA
• Operating Temperature: -20 ℃ to +65 ℃
• Display Window Size (visible): 25.5 mm × 7.6 mm

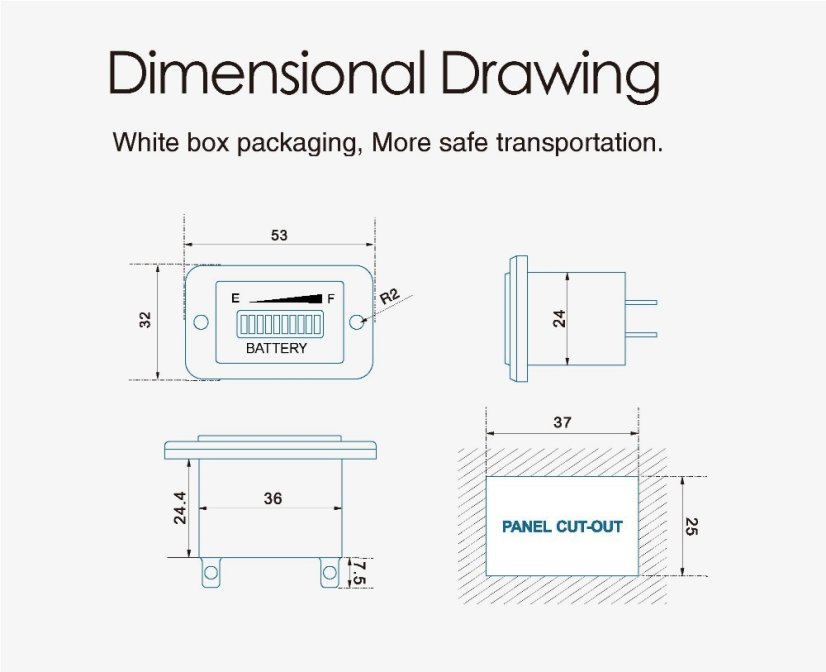

• Product Dimensions: 53 mm × 32 mm × 38.1 mm
• Mounting Dimensions: 36.5 mm × 24.5 mm
• Housing Material: ABS
• Waterproof Rating: IP65 / IP68
• Product Weight: approx. 36 g
