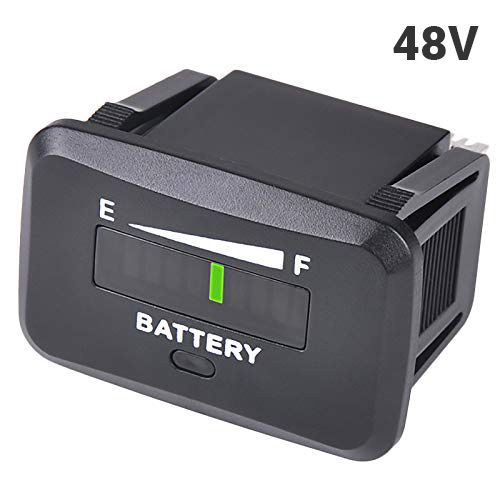

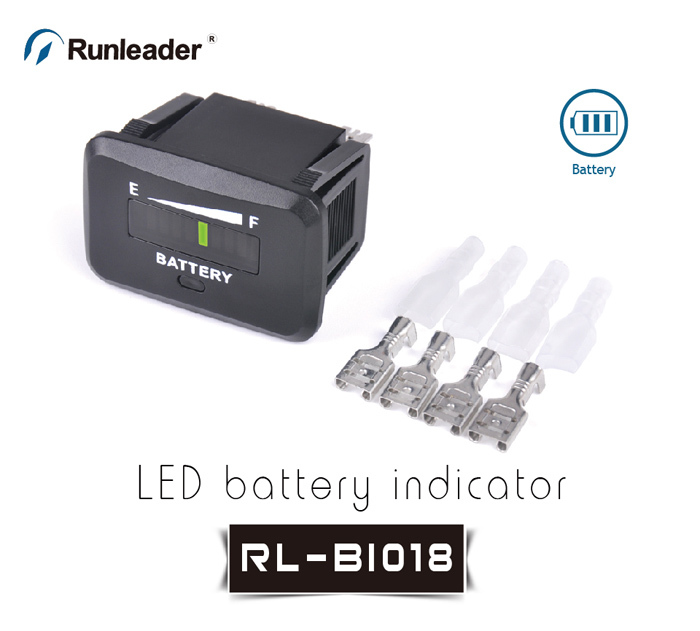

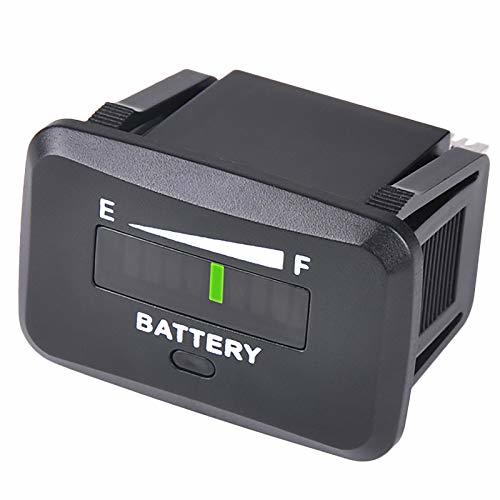

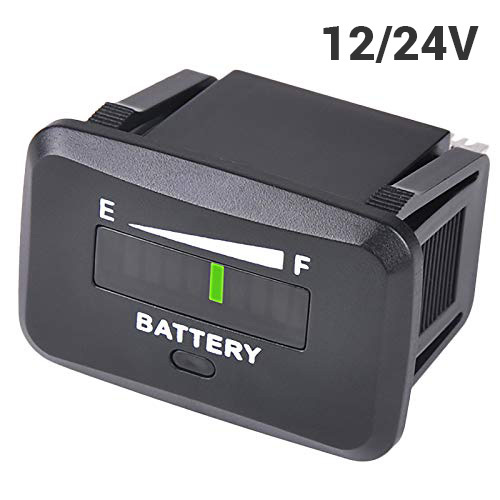

Digital Battery Status Indicator RL-BI018

Battery Indicator RL-BI018, Battery Capacity Meter

Automatic battery recognition, display delay function, false charging signal recognition, option to choose from three different voltages, tri-color LED display, ten-segment LED indicator, etc.

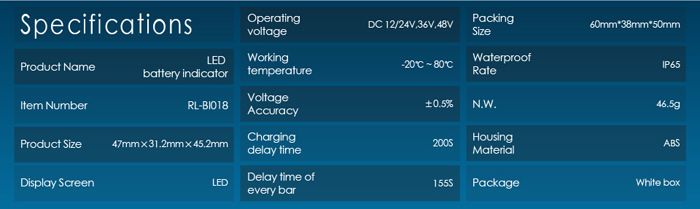

Specifications:

• Model: RL-BI018
• 3 selectable voltages: 12/24V, 36V, 48V
• 10-segment LED display
• LED battery status indicator
• Automatic sleep mode

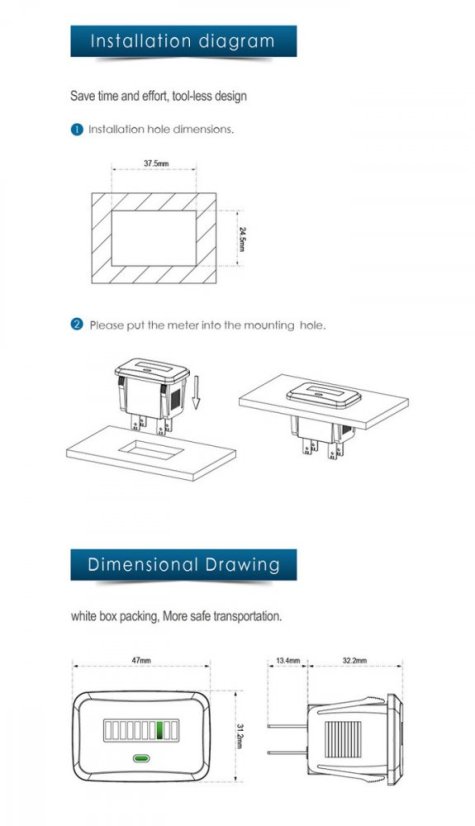

• Easy installation using screws or zip ties

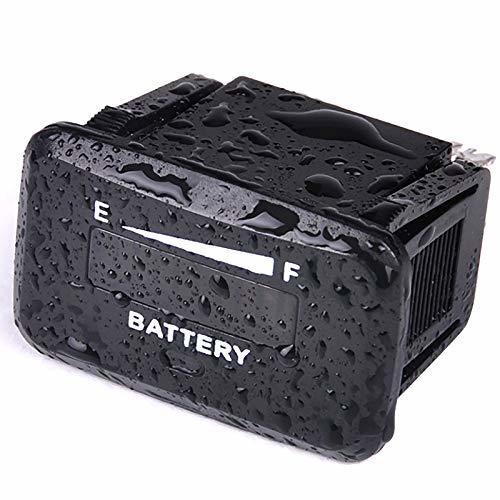

• Waterproof IP65
• Certified CE and ROHS.

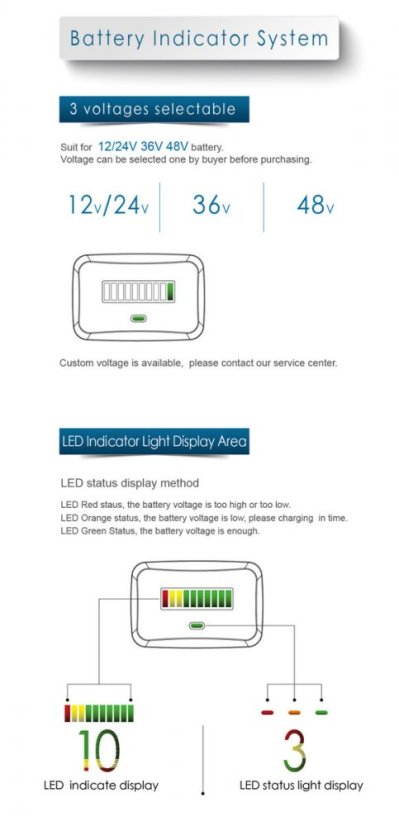

LED Display Methods Indicating Battery Status

LED glows red – battery voltage is too high or too low

LED glows orange – battery voltage is low, battery should be charged

LED glows green – battery is sufficiently charged

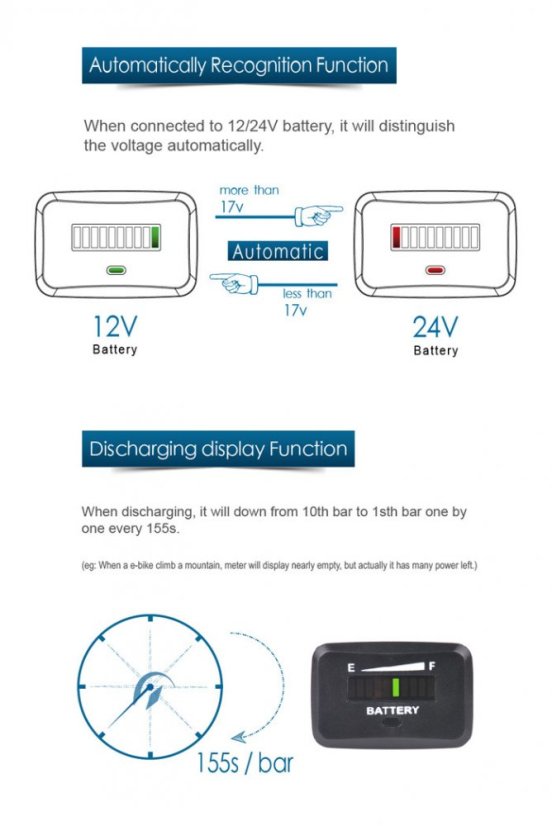

Display Function Indicating Discharge

When discharging, the indicator will move from the tenth line down to the first line every 155 seconds.

(This means when the e-bike goes uphill, the indicator may falsely show a low battery status while it is still adequately charged)

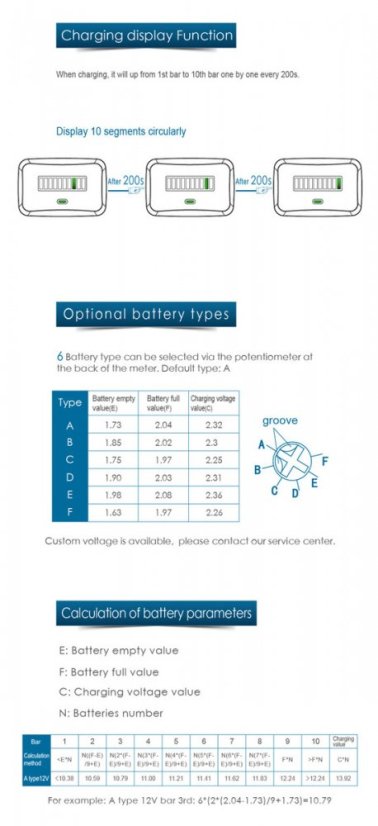

Display Function Indicating Charge

When charging, the indicator will move from the first line up to the tenth line every 200 seconds.

Selectable Battery Types

Using the rotary switch on the back of the meter, 6 types of batteries can be selected. The default type is labeled A.

Calculations Regarding Battery Parameters

Empty battery value (E), full battery value (F), charging voltage value (C), number of batteries (N)

Line

Calculation formula/method

Type A 12V

For example: Type A 12V third line:

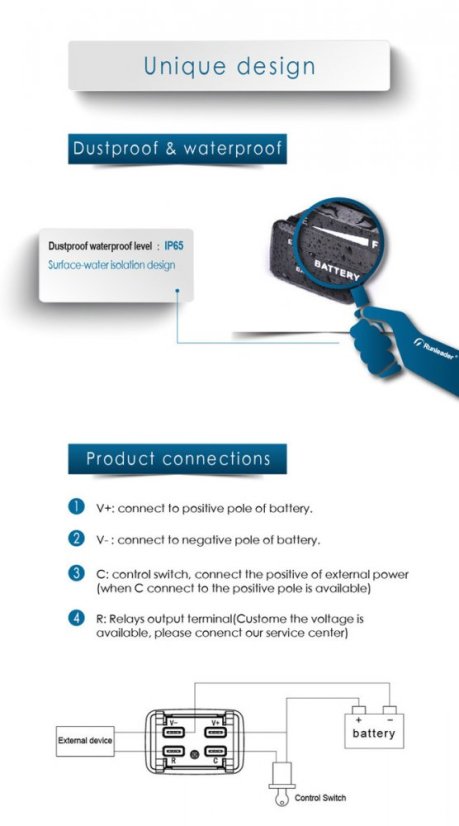

Wiring Diagram:

V+ to positive terminal of battery

V- to negative terminal of battery

C control switch, switches battery to positive terminal

R charging positive terminal
