Digitální regulátor otáček pro AC motory 220V 10000W 40A

Digital Speed Controller for AC Motors 220V 10000W 40A

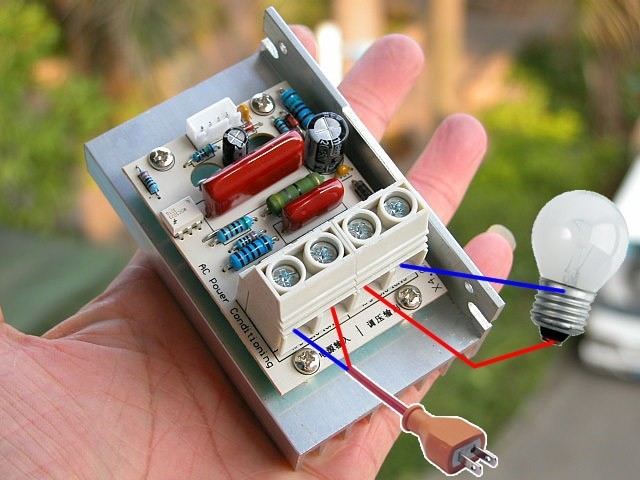

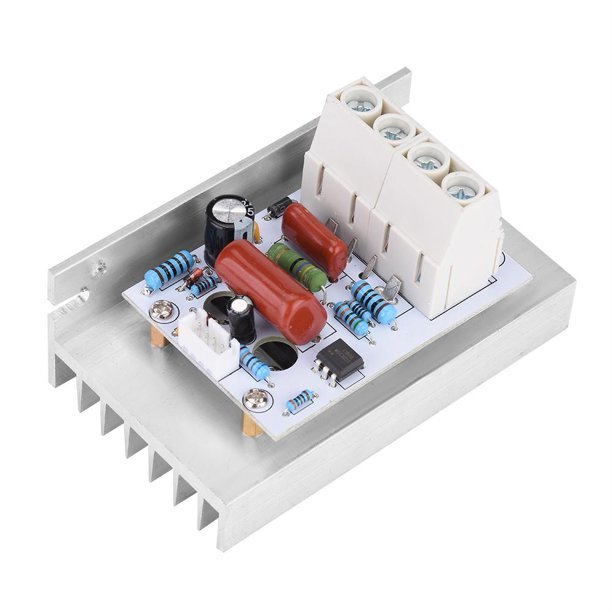

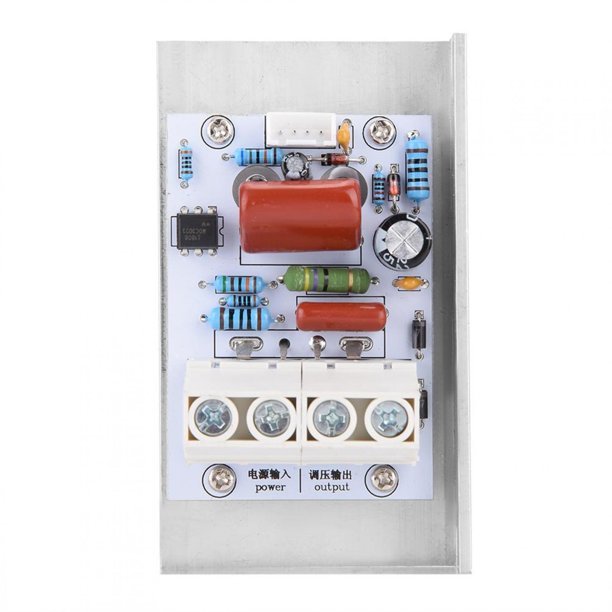

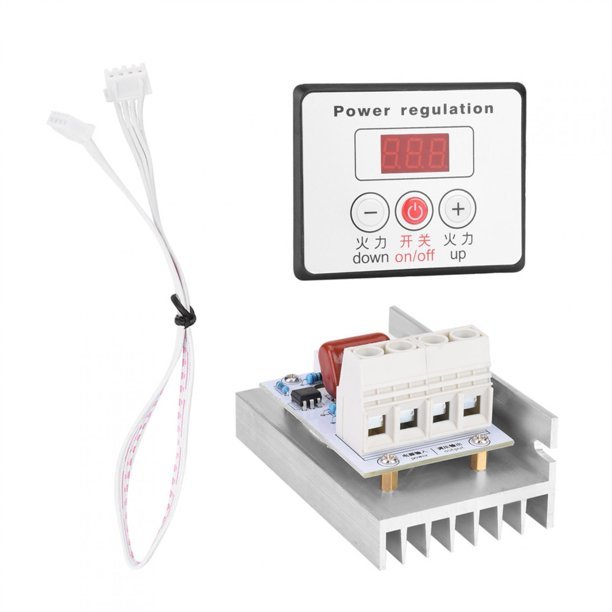

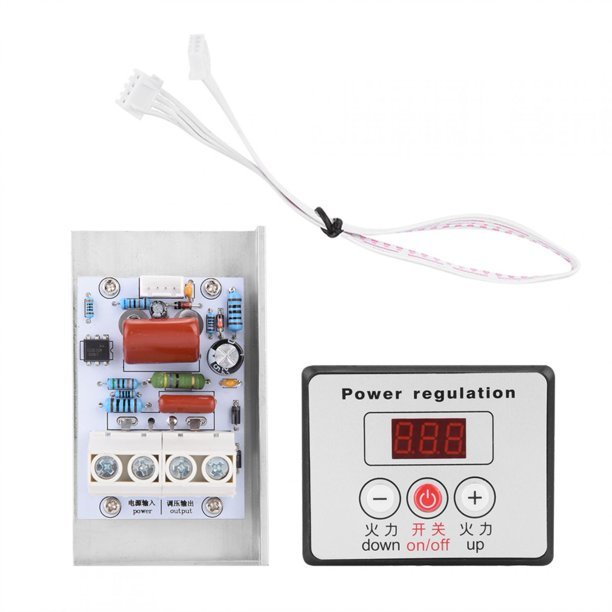

Our digital SCR speed controllers provide efficient, economical, and compact AC motor speed control!

These SCR voltage controllers are designed for devices such as fans, pumps, and lighting. Each model has a single-phase AC input and a fully variable AC output.

SCR controllers adjust the AC output voltage, allowing for easy speed control of motors. They are also compatible with durable loads such as lighting.

Note: These controllers DO NOT WORK with capacitive start motors!

Motors that can be used with these controllers include permanently connected motors and universal motors. It's important to note that the controller has a limited speed regulation range, typically in the upper half of the setting. If higher power is needed, it may be necessary to increase the capacity of the controller.

Specifications:

• Power Supply: 110-230V AC
• Voltage Regulation: 0-220V
• Maximum Power: 10000 W
• Max. Current: 40A
• Material: FR-4 PCB
• Dimensions: 10 x 6 x 5 cm (3.94 x 2.36 x 1.97 in)
• Weight: 227g (0.5 lbs)
• Not a kit!

Warnings for electronic components:

• BTA100-1200B - 100A BI-DIRECTIONAL TRIODE THYRISTOR (TRIAC)
