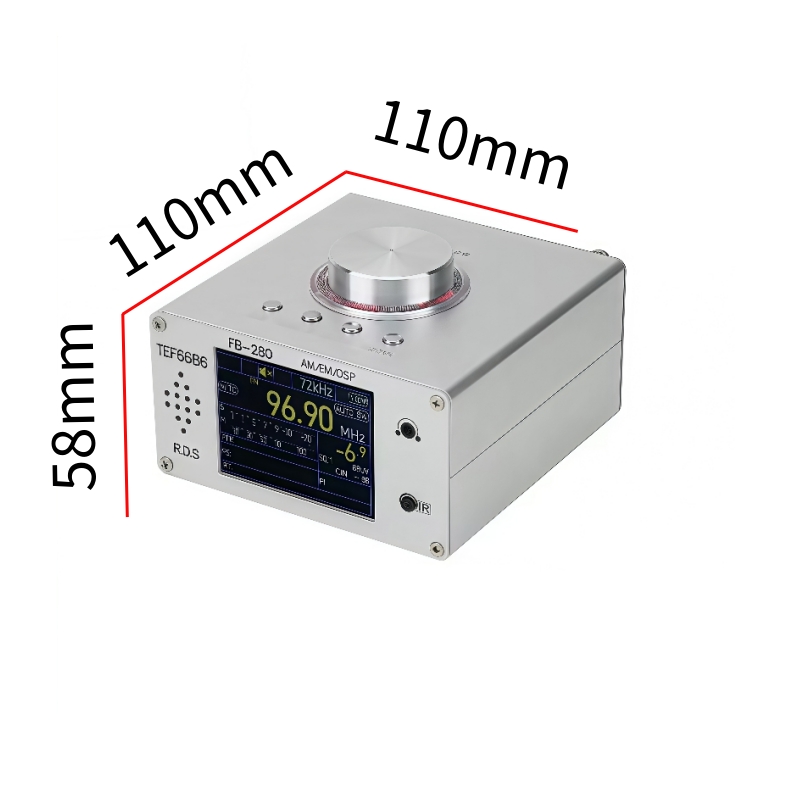

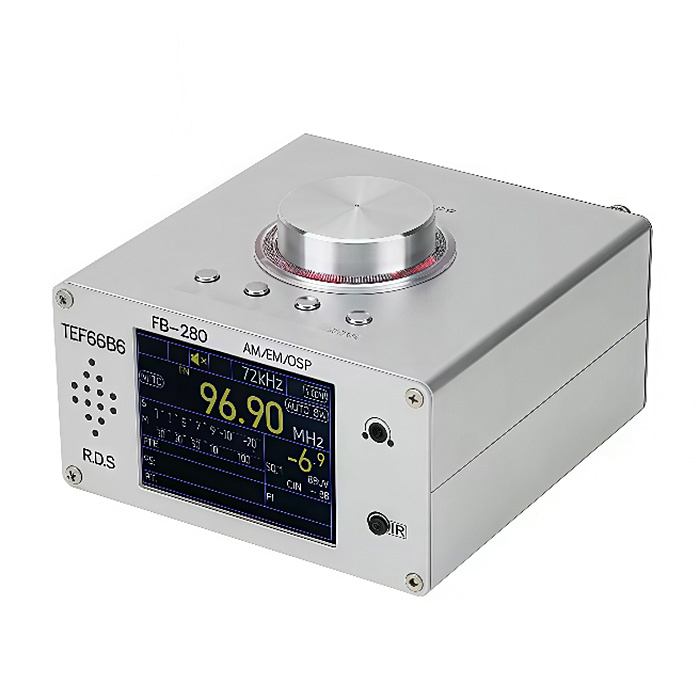

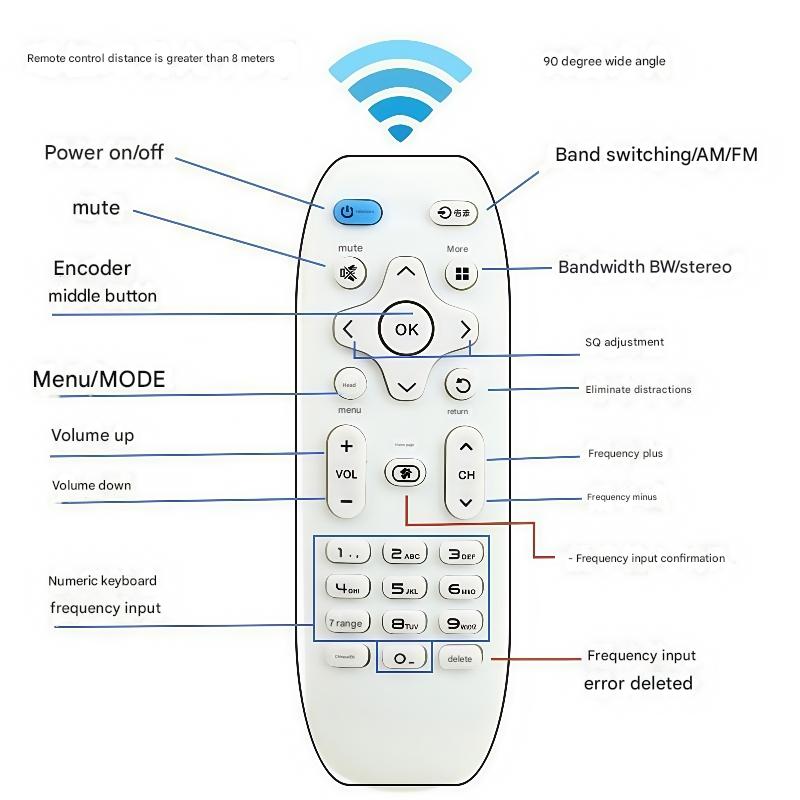

This DIY desktop radio features the powerful TEF6686 DSP chip, offering full-band support for AM and FM with high-quality digital signal processing (DSP). It supports RDS (Radio Data System) for FM channels and includes an infrared remote control for convenient operation. Designed with an elegant vintage-style enclosure, this radio combines modern electronics with a nostalgic look, making it ideal for radio enthusiasts, hobbyists, and collectors. The radio offers stable reception, clear sound, and excellent build quality for home or desktop use.

Basic Operations:

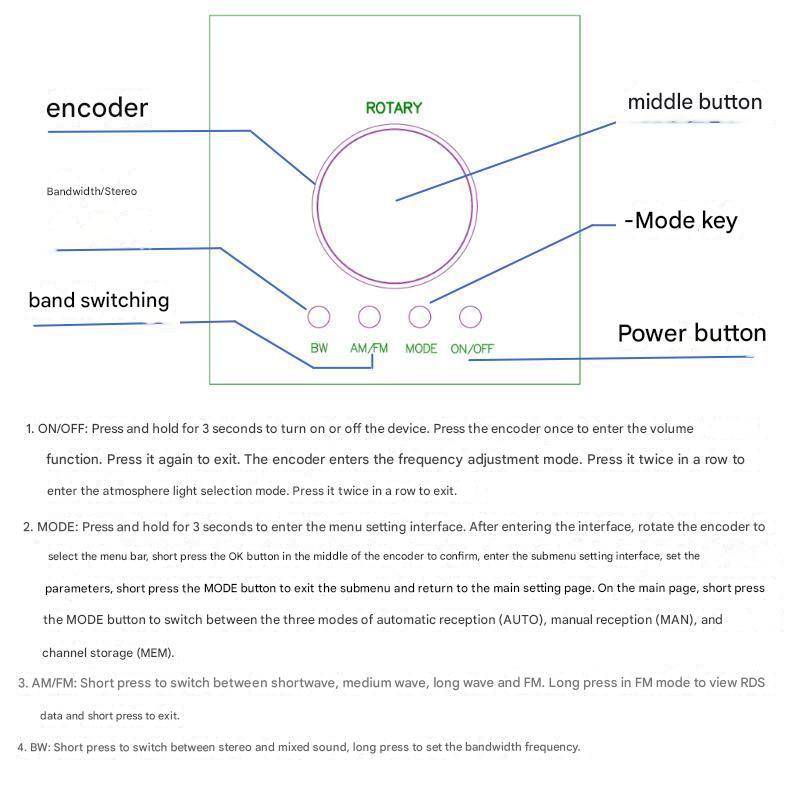

ON/OFF Button: Main power switch, encoder (ROTARY) mode switch. Long press ON/OFF for 3 seconds to turn on or off. After turning on, short press the encoder once for volume control, short press twice in a row to switch ambient light options, short press once more to exit.
Step switching: Long press enables iMS and EQ.
BW Button: Bandwidth selection

• In FM mode short press: stereo/mono switch

• In FM mode long press: demodulation bandwidth switch between 56/64/72/84/97/114/133/151/168/184/200/217/236/254/287/287/311kHz/AUTOBW
  Can also hold BW and turn TUNING knob to select

• In AM mode short press: demodulation bandwidth switch between 3/4/6/8kHz
  MODE Button: Tuning mode

• Short press: switch between MAN (manual)/AUTO (automatic)/MEM (memory store)

• Long press: opens menu page
  AM/MF Button: Band selection

• Short press: toggle between LW/MW/SW/OIRT/FM

• In FM mode long press: open advanced RDS view/Alternative Frequency view

Frequency Range:

• 65–108MHz: Russia/Eastern Europe

• 76–95MHz: Japan

• 76–108MHz: Campus broadcasting

• 87–108MHz: Europe/Oceania/Africa/Asia

• 87.5–108MHz: China/USA
  OIRT default step: 30kHz, FM steps: 50/100/200kHz (default 100kHz)
  Shortwave: 1700–27000kHz (default 5kHz step)
  MW: 522–1791kHz (9kHz step)
  MW: 520–1720kHz (10kHz step)
  LW: 144–513kHz (9kHz step)

Reception Specs:
Telescopic antenna sensitivity:

• FM (S/N=30dB) ≤ 0.5uV  Selectivity: FM ≥ 60dB (+150kHz)

• SW (S/N=20dB) ≤ 10uV  Selectivity: SW ≥ 60dB (BW=3kHz/+5kHz)

• MW (S/N=20dB) ≤ 10uV  Selectivity: MW ≥ 60dB (BW=3kHz/±9kHz)

• LW (S/N=20dB) ≤ 10uV  Selectivity: LW ≥ 60dB (BW=3kHz/+9kHz)

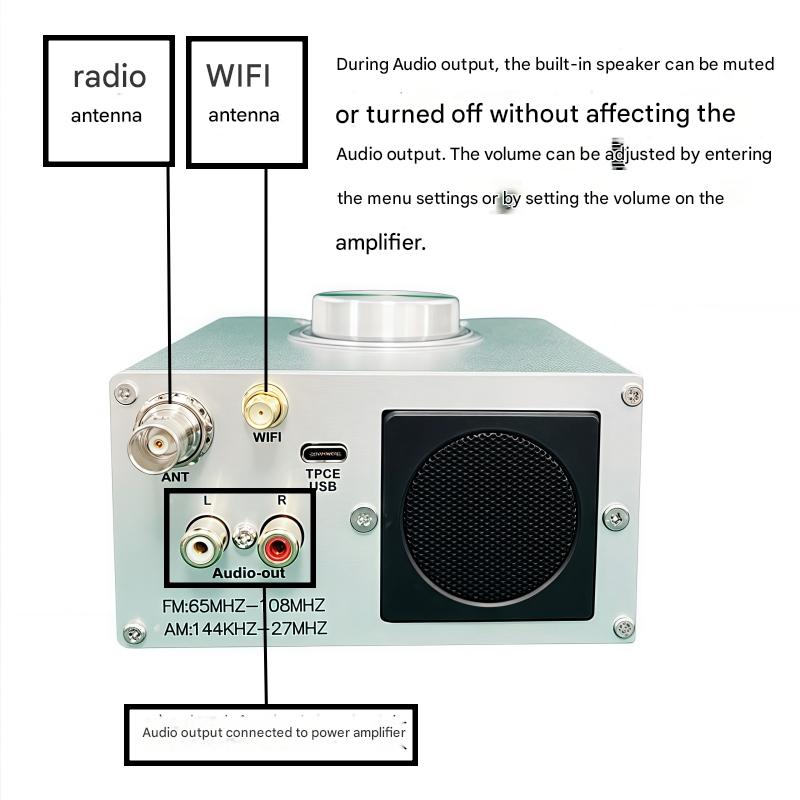

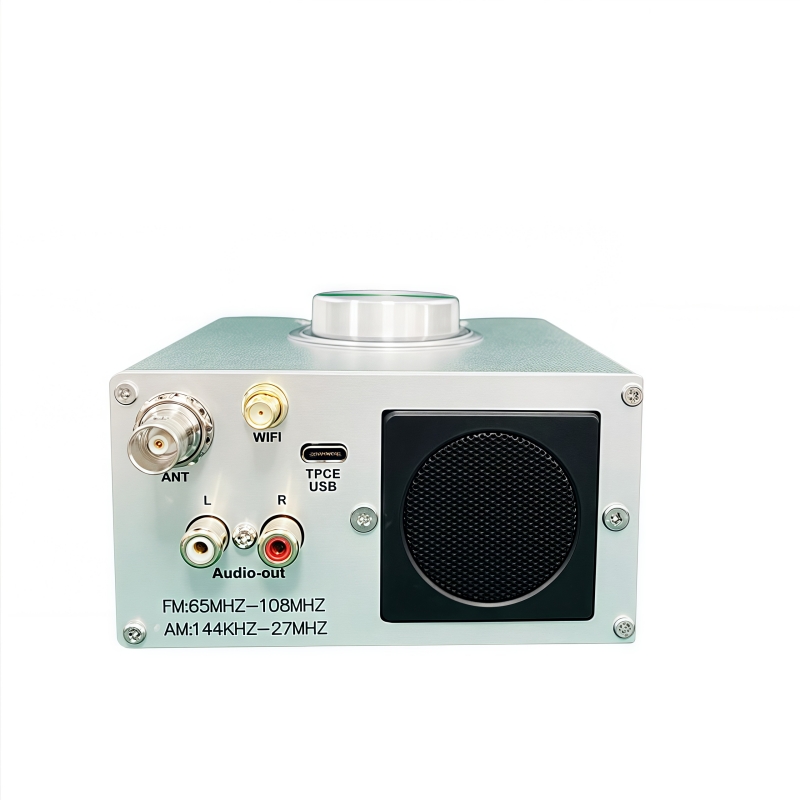

Antenna port: External antenna for full bands, standard BNC connector
Speaker output: Uses digital audio amp chip, drives 45x45mm wideband speaker, 4Ω/5W output, low noise, low distortion, loud volume without distortion. Built-in mono speaker, stereo circuit design – set to mono (mixed mode) for stereo channel use.
Headphone output: Uses imported op-amp chip, supports amp connection, standard 3.5mm jack, independent dual op-amp for speaker and headphone. When headphone is inserted, internal amp mutes and switches output to headphone.

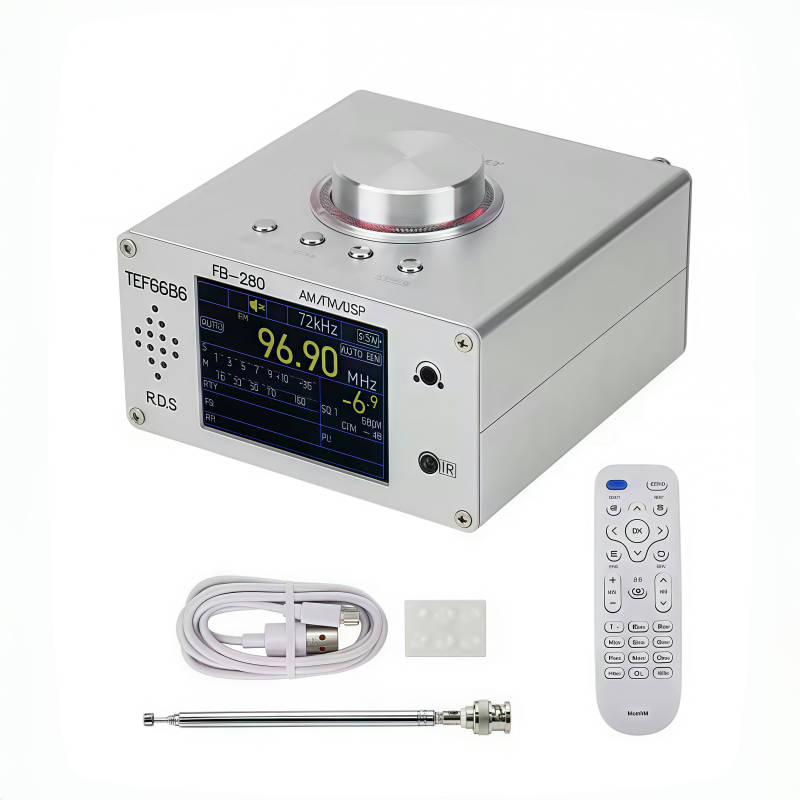

The package includes:
