DS213 4-Channel Mini Pocket Digital Oscilloscope

DSO213 4-Channel Mini Pocket Digital Oscilloscope

The DS213 is a digital oscilloscope for "5-band, 4-wave lines" designed for general electronic engineering tasks and is based on the ARM Cortex M3 core. The DS213 utilizes FPGA for managing external ADC control and data buffering mode. It offers 4 application partitions for loading and updating up to 4 different firmware applications. It also features a built-in 8 MB USB flash drive for storing waveforms and firmware updates. The oscilloscope's application code layer is open-source, allowing users to develop the oscilloscope's firmware as per their needs.

The DS213 is an improvement over the previous model DS203, which features four channels and a bandwidth of 15 MHz. This portable device is a great choice for people who are always on the go. Many students and enthusiasts prefer this model over heavier desktop variants.

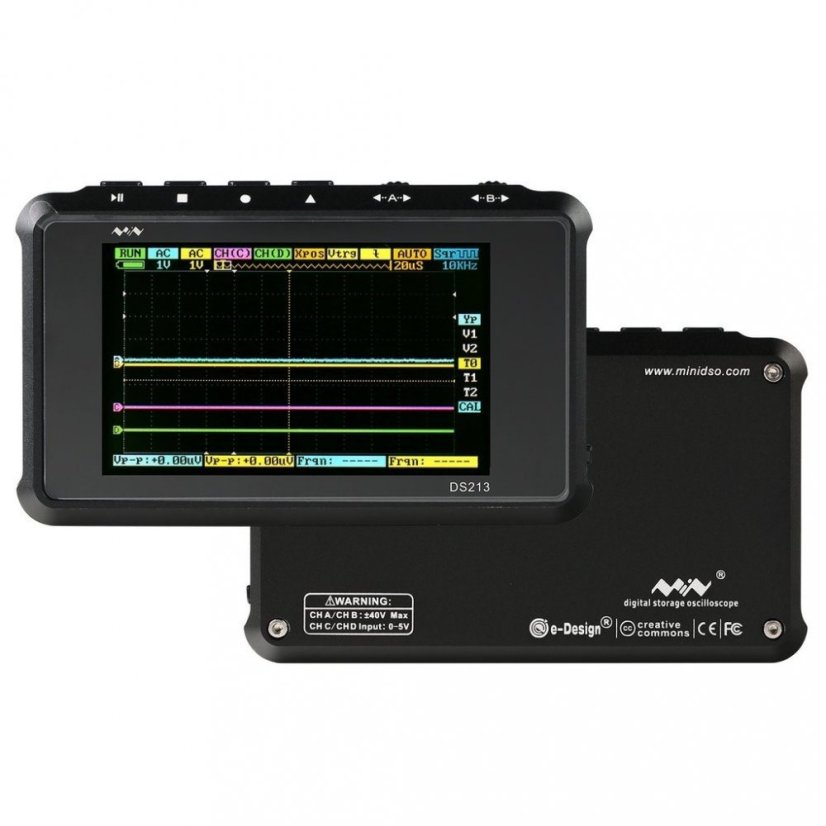

Offered with a 3-Inch Display

It is equipped with a 3-inch display for convenient viewing of information. The device has a clear display operated by a single touch, similar to a smartphone.

Various Waveforms

It offers a maximum sampling rate of 100 MSa/s and 4 digital channels. The DSO213 is perfect for enthusiasts who often travel. These features provide reliable results for sine, square, sawtooth, and triangular waveforms.

Usage

The DS213 can be used as a diagnostic tool for fault detection and is popular in amateur laboratories. It is lightweight and compact enough to easily fit in a pocket or backpack.

Specifications:

• CPU: ARM Cortex M3
• FIFO & Control: FPGA

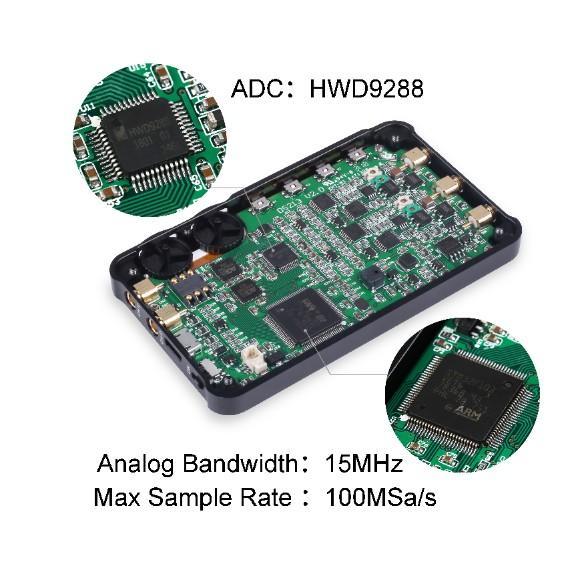

• ADC: HWD9288-100
• Analog Channels: 2 ([CH_A] [CH_B])
• Digital Channels: 2 ([CH_C] [CH_D])
• Trigger Types: Ascend/Descend Edge Trigger, Positive/Negative Pulse, Logic Trigger
• Battery: 1000mAh
• Weight: 129g (with battery)
• Certificate: CE, FCC

PACKAGE CONTENTS

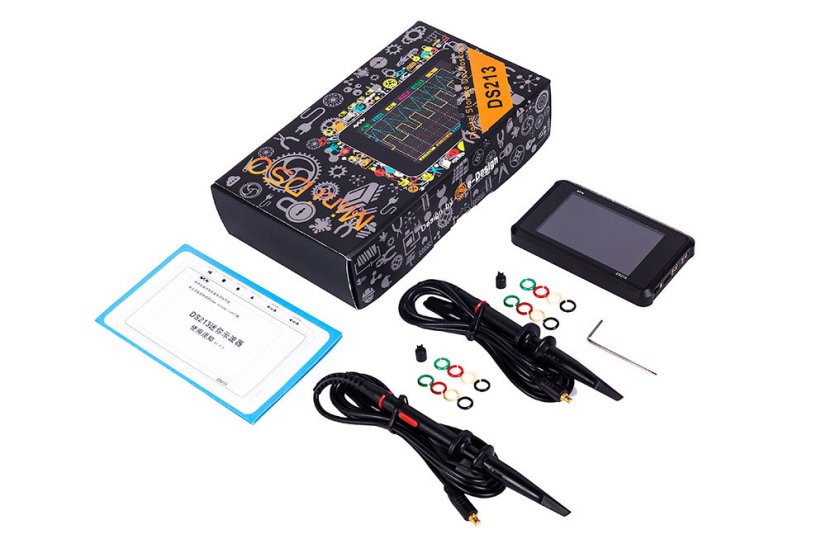

• SainSmart DSO213 Oscilloscope
• 1x X10 Probes
• 1x X1 Probes
• 1x Safety Instructions
• 1x Allen Key
