DS5230-3I 5A Digital Three-Phase Ampermeter 72x72mm
DS5230-3I 5A Digital Three-Phase Ampermeter 72x72mm
The multifunctional meter with LED display from the DS5230-UIF series can very accurately measure general power parameters within a three-phase system.
- Model: DS5230-3I
- 5A AC 3P
- True RMS measurement, high accuracy, can regularly measure distortion waveforms
- Adjustable values, voltage and current can be set as needed

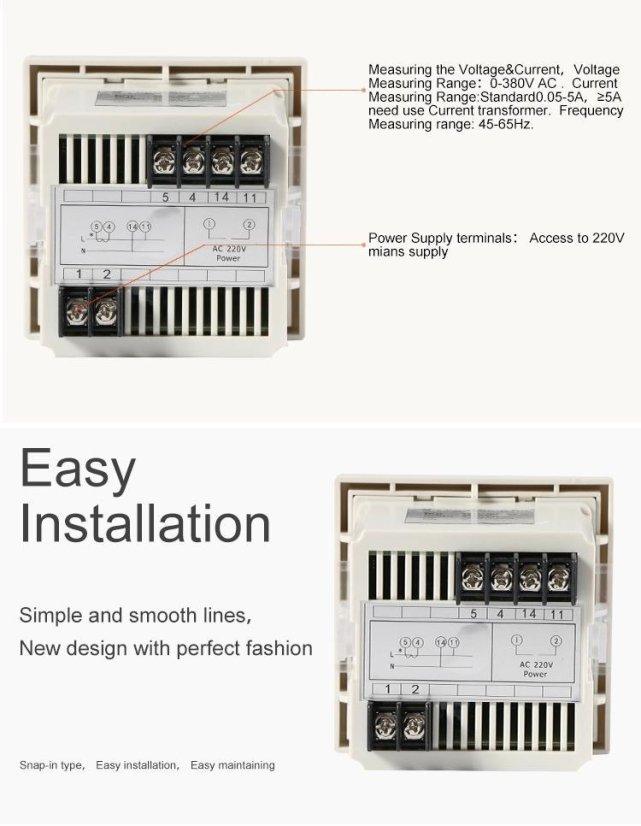

- Simple wiring diagram
- High input impedance of the input signal, input impedance > 2 MΩ
- Excellent input and output protection functions, high reliability.
- Modular structural design can facilitate the workflow of functional output configuration
- Product durability should exceed 7 years.
Specifications:
|
Model |
DS5230-3I, DS5230-3U, DS5230-UIP, DS5230-UIF |
Numeric input (range) |
AC Voltage |
ACS 7.7 V, 100 V, 220 V, 380 V, 500 V |
|
|
Display method |
4-digit digital LED display, automatic decimal point shifting |
AC Current |
AC 1A, 5A |
||
|
User environment |
Temperature |
Operating: 25-55 °C, storage: -25-50 °C |
Accuracy level |
Voltage, current, active power, power factor 0.5, frequency 0.1, reactive power level 1 |
|
|
Humidity |
≤ 93% RH, no condensation, no corrosion-causing gases |
Permissible overload |
Continuous: 1.2 times, instantaneous: voltage 2 times/5s, current 10 times/5s, when exceeding the set range by 1.2 times, "HHHH" will be displayed on the screen |
||
|
Altitude |
≤2500m |
Safety features |
Dielectric strength |
input, auxiliary power between AC 2.5kV • 1min |
|
|
Color |
The screen is dark brown, the case is all white |
Insulation resistance |
>100MΩ |
||
|
Installation method |
Built-in installation |
Fireproof and non-flammable |
Instantaneous block: 960°C, housing: 650°C, duration: 30s |
||
