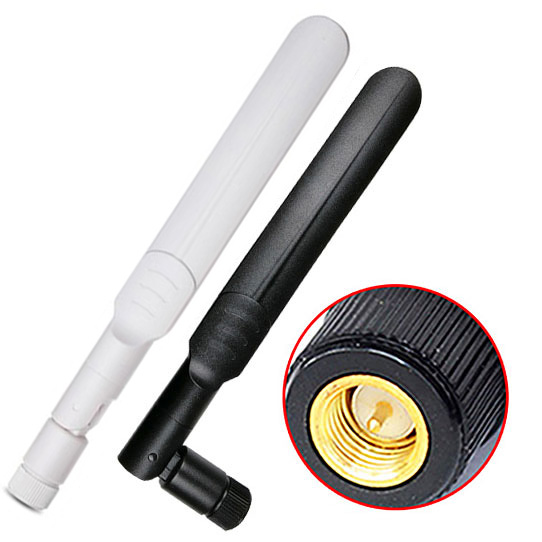

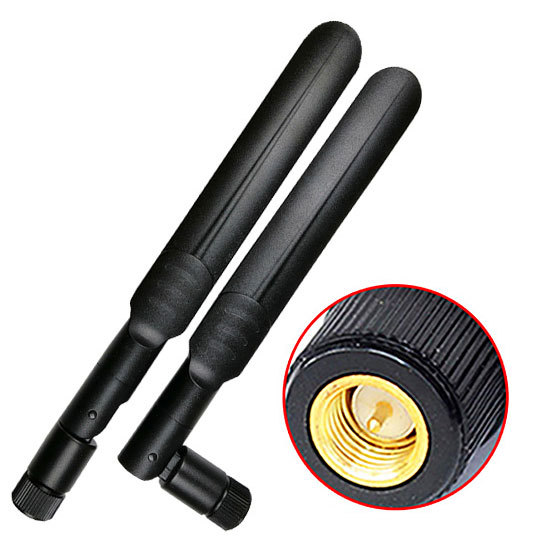

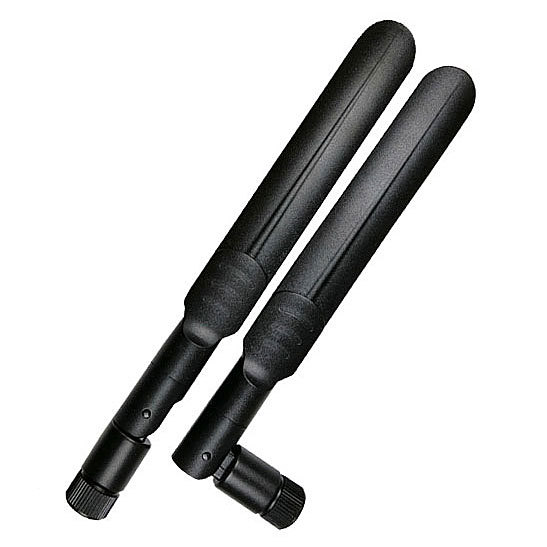

Dual-band Antenna 2.4GHz, 5GHz, 5.8GHz 8dB

Dual-band Antenna 2.4GHz, 5GHz, 5.8GHz 8dB

Omnidirectional 8dB antenna terminated with RP-SMA male or SMA male connector, suitable for expanding WiFi networks in homes and offices.

Technical Parameters

Wireless Properties

• VSWR: < 1.5
• Wireless Frequencies: 2.4 + 5 GHz (dual-band)
• Radiation Angle in Elevation Plane (-6dB) [°]: 13
• Radiation Angle in Azimuth Plane (-6dB) [°]: 360
• Type of Antenna: Omnidirectional
• Gain of Antenna [dBi]: 8

Connectors and Interfaces

• RF Connectors: (1) RP-SMA male / SMA male

Physical Characteristics:

• Usage: Indoor
• Material: UV stable plastic
• Weight [kg]: 0.1
• Depth [mm]: 13
• Width [mm]: 13
• Height [mm]: 159

Package Contents:

1x 8dB Antenna

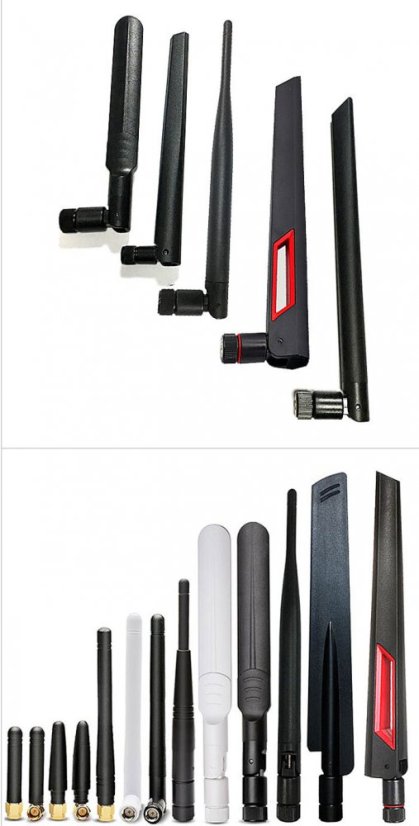

We can also offer these models upon request:
