E-Type Thermocouple Temperature Sensor with Metal Sheathing

High-quality E-type thermocouple temperature probes with sensors imported from Germany. More

Manufacturer: NEVEN Product code: P10527 Shipping and payment

from 9,10 EUR incl. VAT

High-quality E-type thermocouple temperature probes with sensors imported from Germany. More

Manufacturer: NEVEN Product code: P10527 Shipping and payment

Description
Inquiry Form

High-quality E-type thermocouple temperature probes with sensors imported from Germany.

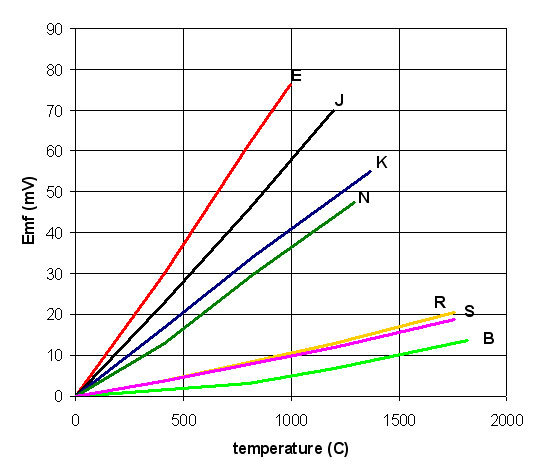

Thermocouples are available in several material variants. Each material pair has different temperature range characteristics and voltage outputs. The voltage generated by the thermocouple is always small, in the range of millivolts, and is non-linear. The table below lists some common thermocouples and their basic parameters.

Type	Materials	Min. Temperature	Max. Temperature	Min. °C	Max. °C
J	Iron Constantan (Cu-Ni)	0 °C	750 °C	0 mV	42.281 mV
T	Copper Constantan (Cu-Ni)	-250 °C	350 °C	-6.18 mV	17.819 mV
K	Chromel (Ni-Cr) Alumel (Ni-Al)	-200 °C	1250 °C	-5.891 mV	50.644 mV
E	Chromel (Ni-Cr) Constantan (Cu-Ni)	-200 °C	900 °C	-8.825 mV	68.787 mV
N	Nicrosil (Ni-Cr-Si) NiSil (Ni-Si-Mg)	-260 °C	1300 °C	-4.336 mV	47.513 mV
S	Platinum-13% Rhodium Platinum	-50 °C	1768 °C	-0.236 mV	18.693 mV
B	Platinum-30% Rhodium Platinum-6% Rhodium	0 °C	1820 °C	0 mV	13.82 mV
C	Tungsten-5% Rhenium Tungsten-26% Rhenium	0 °C	2320 °C	0 mV	37.107 mV

T, K, and E represent the most common thermocouples used in industry.

Thermocouples offer several advantages:

Wide temperature range
Affordable
Fast response time
Easy to use

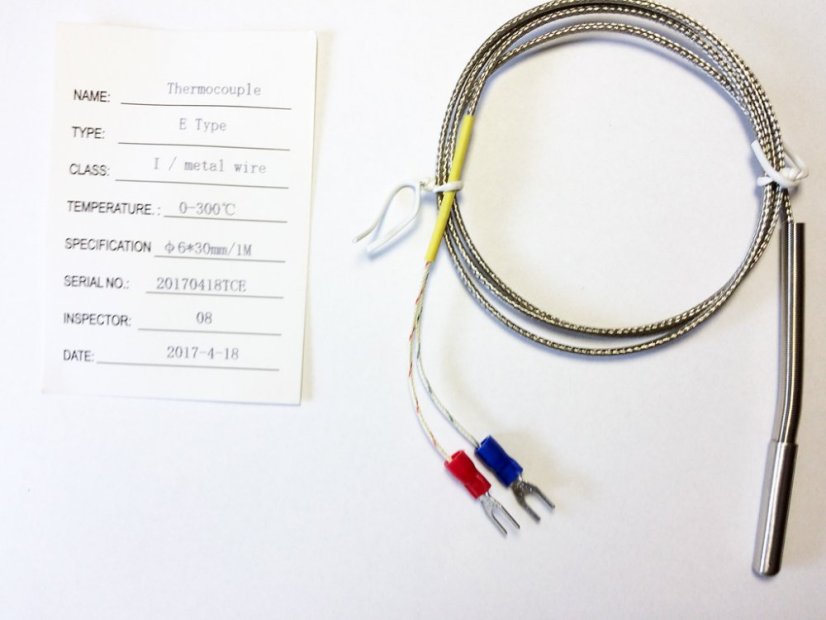

Technical Specifications:

Model: TC-TUM1-01
Type: thermocouple sensor (TC) - E-type
Class: A
Temperature Range: 0 to +300°C

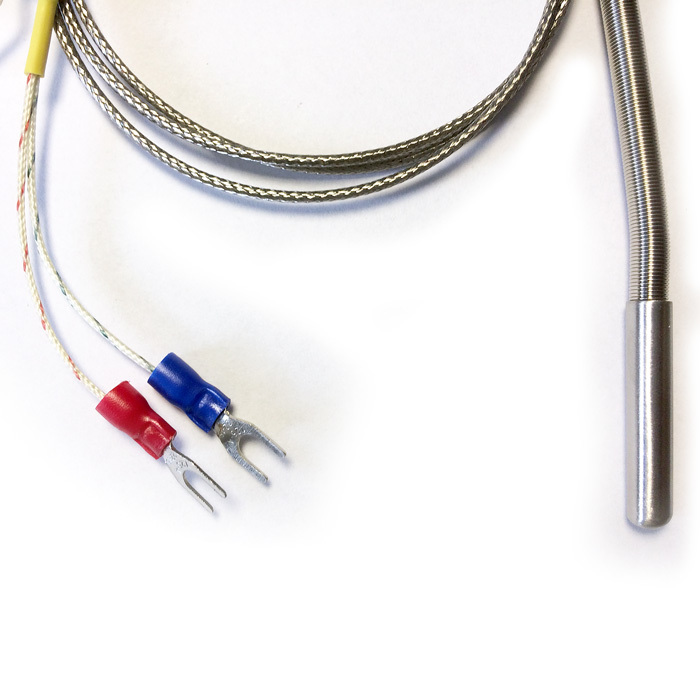

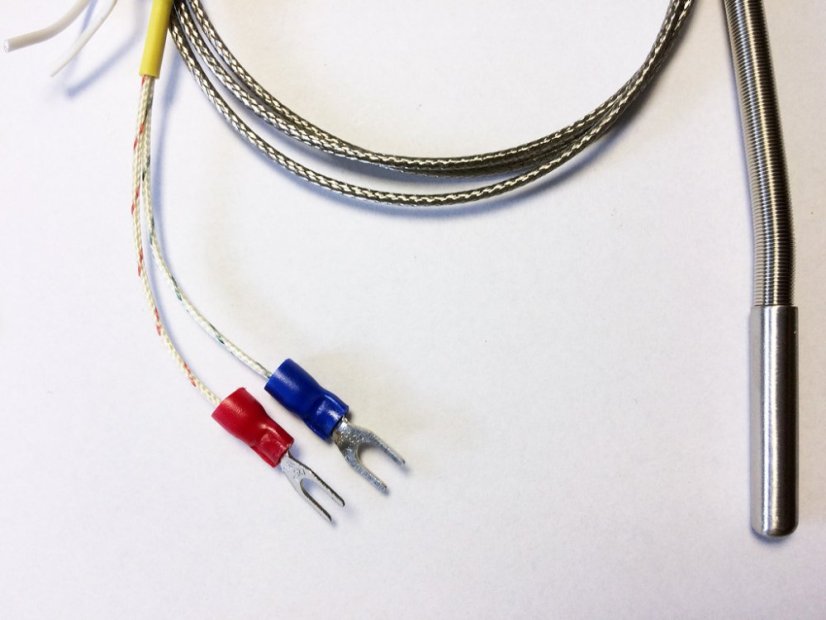

Housing: tube 6x30mm, 304SS
Cable Type: metal sheathing
Wire Type: 2 separate wires
Lead Length: 1/2/3/5m or as requested

NOTE: Ensure your device supports the selected sensors before ordering. After replacement, the thermocouples may require calibration using a temperature measurement device. The accuracy of thermocouple probes decreases over time and must be regularly calibrated and replaced after prolonged use.

For orders exceeding 100 pieces, the probes can be customized as per customer needs.
