High-quality E type thermocouple temperature probes with sensors imported from Germany.

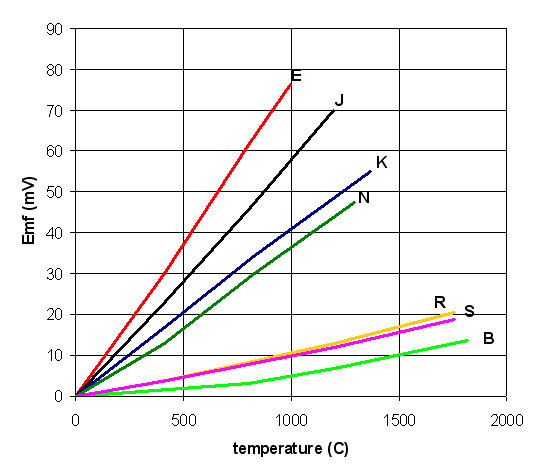

Thermocouples are available in several material variants. Each material pair has different characteristics concerning temperature range and voltage. The voltage generated by the thermocouple is always low, in the range of millivolts, and it is non-linear. The table below lists some common thermocouples and their basic parameters.

Type	Materials	Min. Temperature	Max. Temperature	Min. °C	Max. °C
J	Iron Constantan (Cu-Ni)	0 °C	750 °C	0 mV	42.281 mV
T	Copper Constantan (Cu-Ni)	-250 °C	350 °C	-6.18 mV	17.819 mV
K	Chromel (Ni-Cr) Alumel (Ni-Al)	-200 °C	1250 °C	-5.891 mV	50.644 mV
E	Chromel (Ni-Cr) Constantan (Cu-Ni)	-200 °C	900 °C	-8.825 mV	68.787 mV
N	Nicrosil (Ni-Cr-Si) NiSil (Ni-Si-Mg)	-260 °C	1300 °C	-4.336 mV	47.513 mV
S	Platinum-13% Rhodium Platinum	-50 °C	1768 °C	-0.236 mV	18.693 mV
B	Platinum-30% Rhodium Platinum-6% Rhodium	0 °C	1820 °C	0 mV	13.82 mV
C	Tungsten-5% Rhenium Tungsten -26% Rhenium	0 °C	2320 °C	0 mV	37.107 mV

T, K, and E represent the most common thermocouples used in industry.

Thermocouples offer several advantages:

Wide temperature range
Cost-effective
Quick response
Easy to use

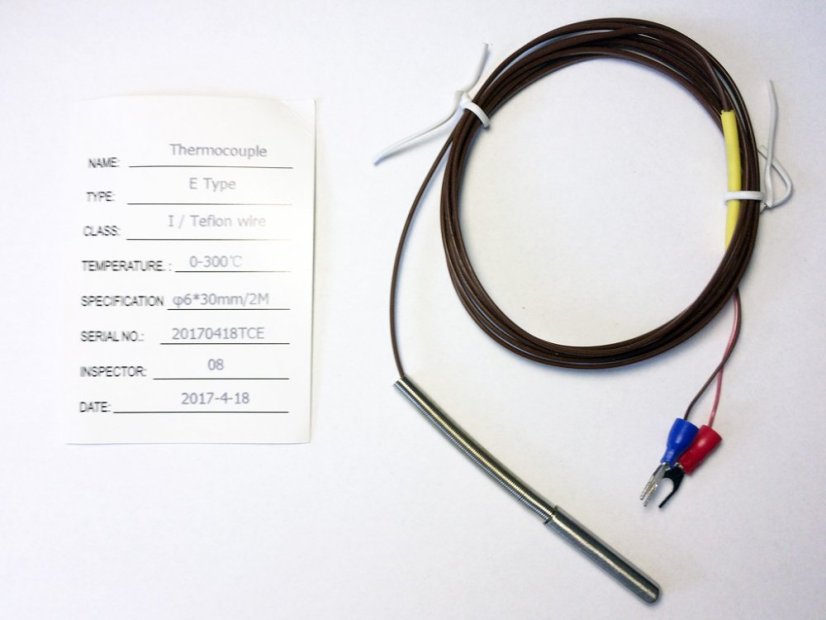

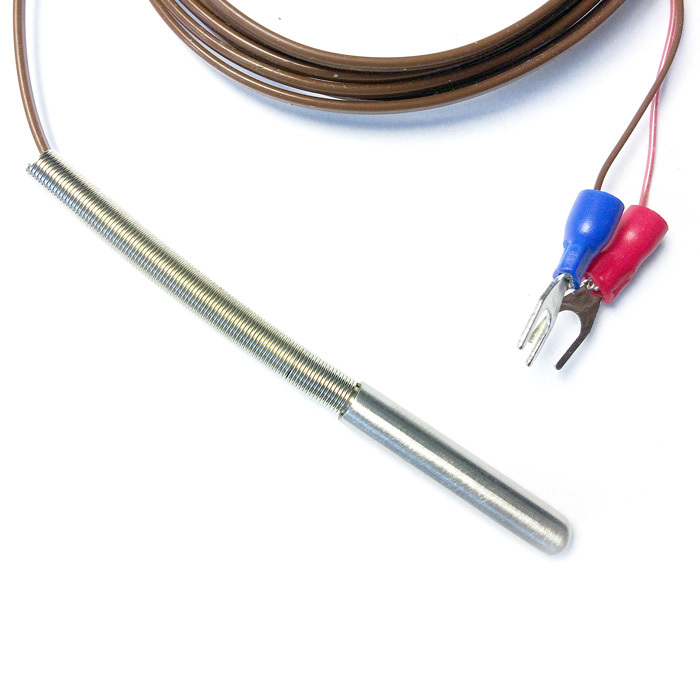

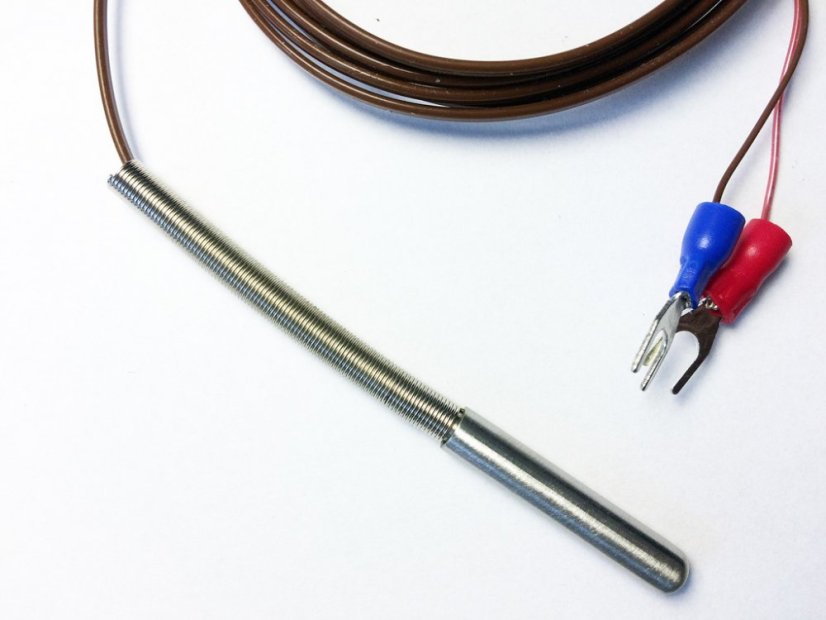

Technical parameters:

Model: TC-T6S1-01
Type: thermocouple sensor (TC) - E type
Class: A
Temperature Range: 0 to +300 °C
Housing: tube 6x30 mm, 304SS
Cable Type: teflon cable
Wire Type: 2 separate wires
Lead Length: 1/2/3/5 m or as per request

NOTE: Before ordering, ensure that your device supports the selected sensors. After replacement, the elements may require calibration using a temperature measuring device. The accuracy of thermocouple probes decreases over time and should be regularly calibrated and replaced after prolonged use.

For orders of more than 100 pieces, probes can be customized according to customer needs.
