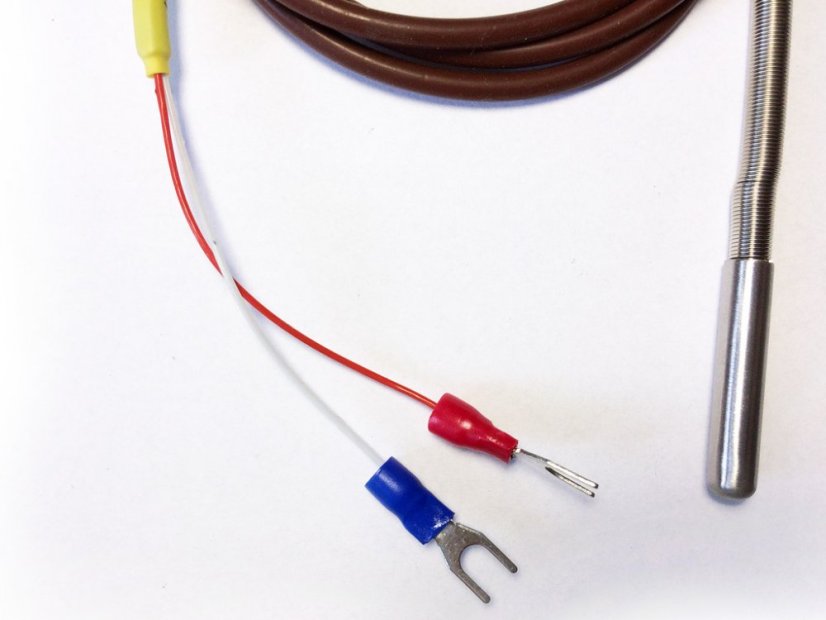

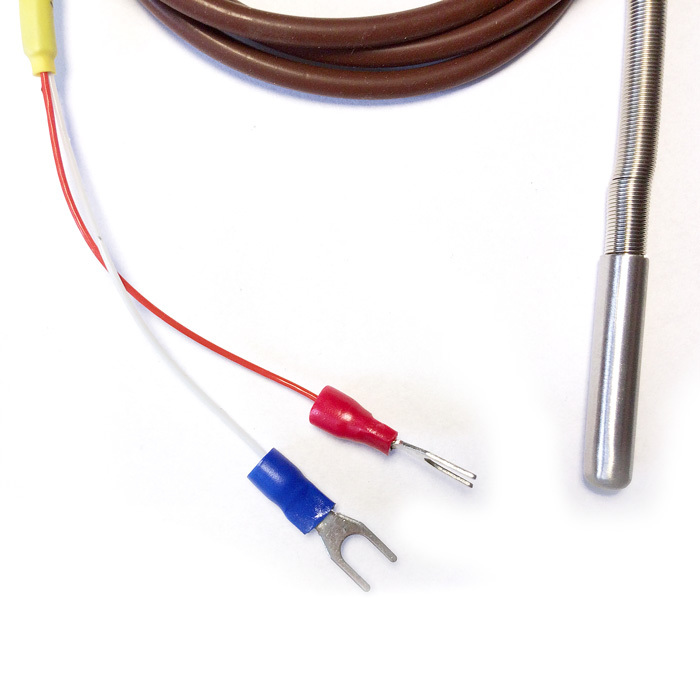

E-Type Thermocouple Temperature Sensor with Silicone Cable

High-quality E-type thermocouple temperature probes with sensors imported from Germany.

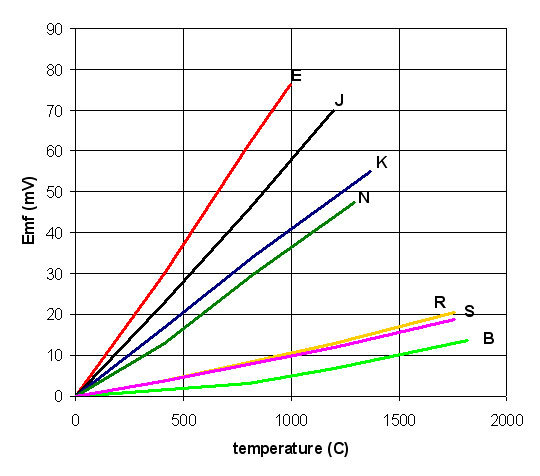

Thermocouples are available in several material variations. Each material pair has different characteristics in terms of temperature range and voltage. The voltage generated by the thermocouple is always small, in the millivolt range, and is nonlinear. The table below lists some common thermocouples and their basic parameters.

T, K, and E represent the most common thermocouples used in industry.

Thermocouples offer several advantages:

• Wide temperature range
• Cost-effective
• Fast response
• Easy to use

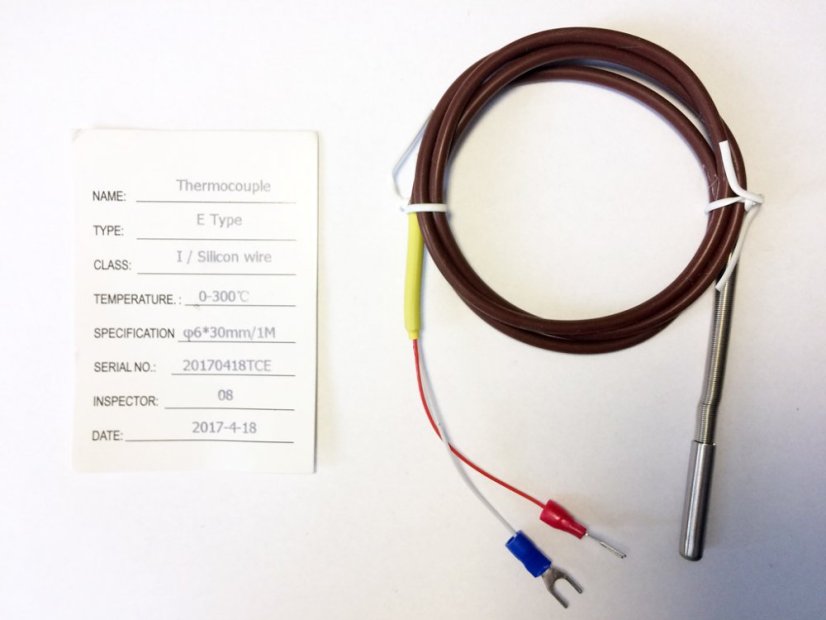

Technical Specifications:

• Model: TC-TUS1-01
• Type: Thermocouple Sensor (TC) - E Type
• Class: A
• Temperature Range: 0 to +300°C
• Housing: 6x30mm tube, 304SS
• Type of Cable: Silicone cable
• Wiring Type: 2 separate wires
• Lead Length: 1/2/3/5m or as requested

NOTE: Before ordering, please ensure that your device supports the selected sensors. After replacement, thermocouples may require calibration using a temperature measuring device. The accuracy of thermocouple probes decreases over time and must be regularly calibrated and replaced after long-term use.

For orders of more than 100 pieces, probes can be customized to customer requirements.
