E31 Modbus Gateway with RJ45 Port
Variants9
| Connector | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|
 |
RJ45 ME31-XAXA0404 4AI 4AO | < 5 pieces in Stock | 65,80 EUR | |||
|
RJ45 ME31-XAXX0600 6AI | Out of Stock Watch availability | 54,40 EUR | Demand | ||
|
RJ45 ME31-XXAX0060 6DO | Out of Stock Watch availability | 51,40 EUR | Demand | ||
|
RJ45 ME31-AXXX8000 8DI | Out of Stock Watch availability | 51,40 EUR | Demand | ||
|
RJ45 ME31-AAAX4220 4DI 2AI 2DO | Out of Stock Watch availability | 54,40 EUR | Demand | ||
|
RJ45 ME31-XXXA0006 6AO | Out of Stock Watch availability | 72,10 EUR | Demand | ||
|
RJ45 ME31-XAAX0440 4AI 4DO | < 5 pieces in Stock | 56,90 EUR | |||
| Next | ||||||

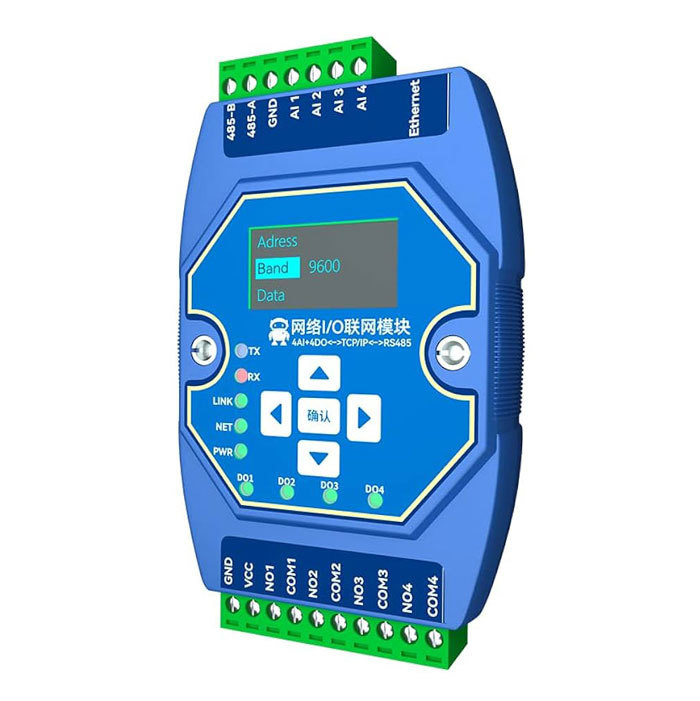

E31 Modbus Gateway with RJ45 Port

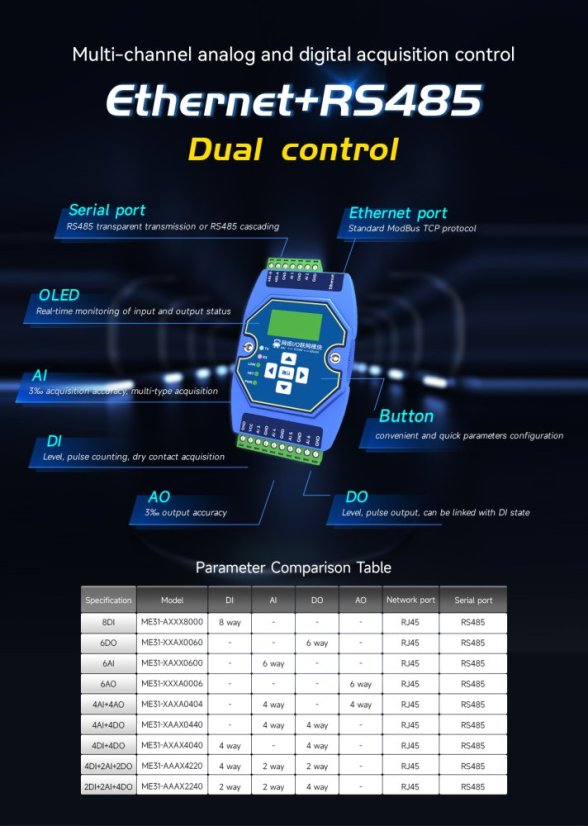

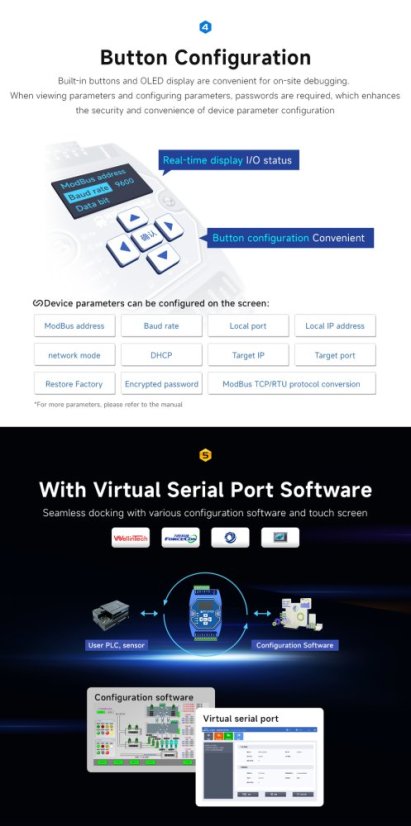

The Ebyte E31 Modbus gateways provide various models with different combinations of digital/analog inputs (DI/AI) and digital/analog outputs (DO/AO). They are compact, robust, and equipped with a bright OLED display (except for model ME31-AXAX4040) and an RJ45 Ethernet port.

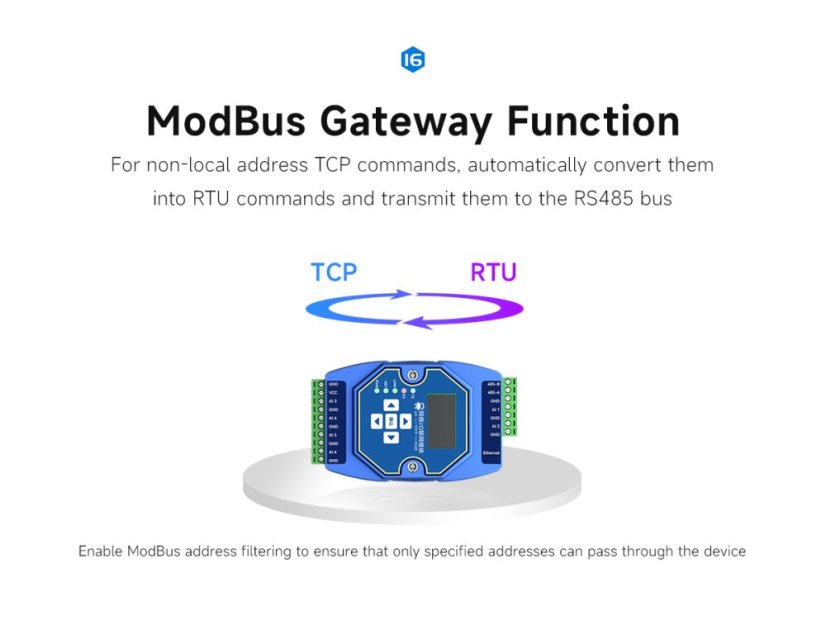

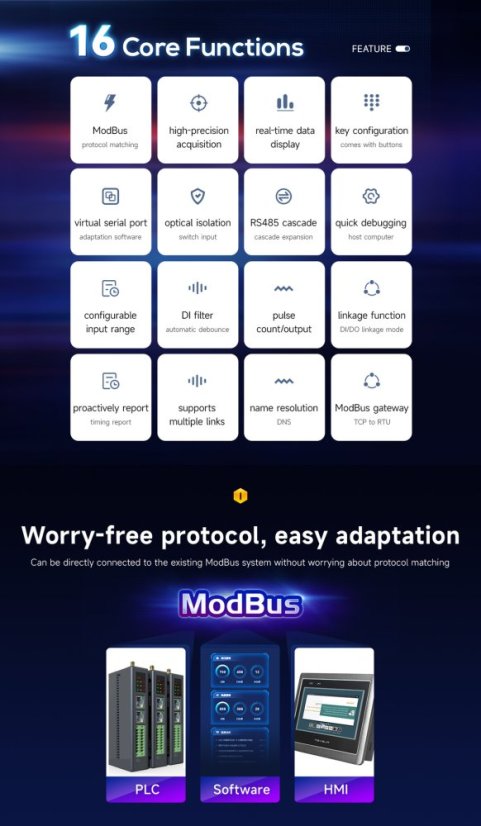

They support both Modbus TCP and Modbus RTU protocols for control and data transmission. They can also be used as a simple Modbus gateway (automatically sending commands to non-local Modbus addresses via the serial port/network port) and as a network I/O module.
Specifications:
| Rated Voltage | DC 8～28V |
| Power Indicator | Blue LED indication |
| Communication Interface | RJ45, RS485 |
| Baud Rate | 9600bps (modifiable) |
| Protocol | Modbus TCP, Modbus RTU |
| Device Address | Default is 1 and can be changed |
| AI Channels | 4 |
| Acquisition Characteristics | Simple Input |

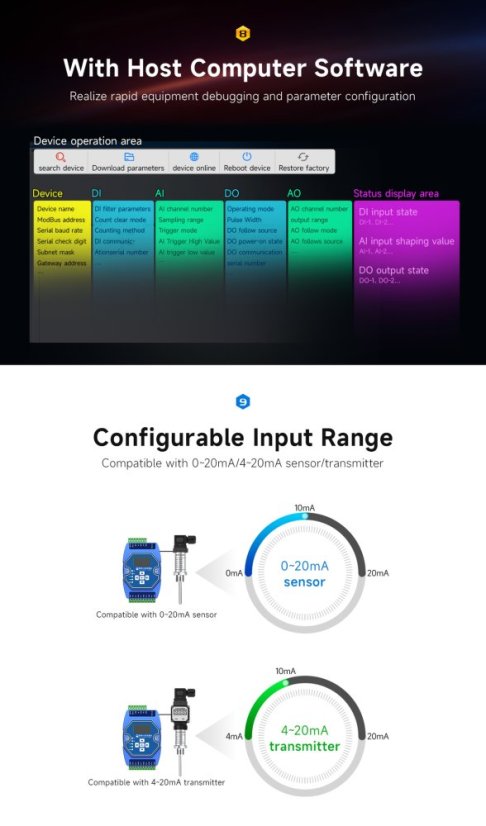

| Input Type | 0-20mA, 4-20mA |
| AI Resolution | 12 bits |
| Accuracy | 3‰ |
| Acquisition Frequency | 10Hz |
| Input Indication | LED Display (except ME31-AXAX4040) |
| DO Channels | 4 |
| DO Output Type | Relay Type A |

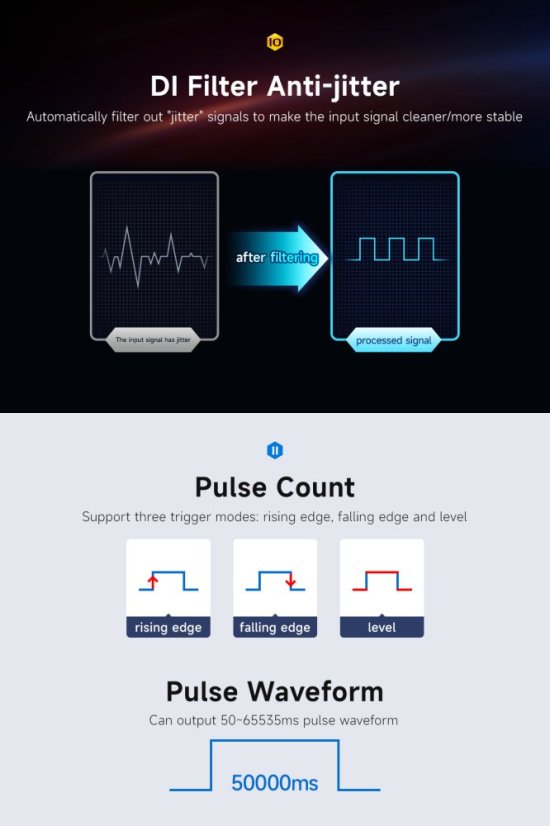

| DO Output Mode | Level output, pulse output |
| Relay Contact Capacity | DC30V/7A, AC250V/7A |
| Output Indication | Red LED indication |

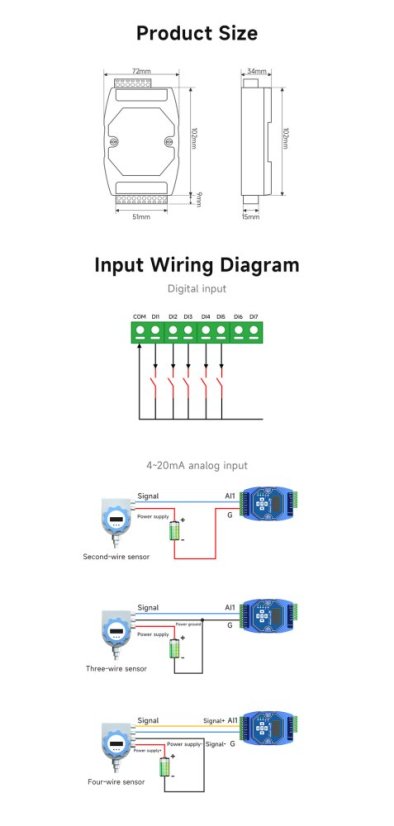

| Product Size | 121mm * 72mm * 34mm (Length * Width * Height) |
| Product Weight | 148 ± 5 g |
| Operating Temperature and Humidity | -40 ～ +85℃, 5% ～ 95%RH (non-condensing) |
| Storage Temperature and Humidity | -40 ～ +105℃, 5% ～ 95%RH (non-condensing) |
| Installation Method | Din rail mount |
Specifications: https://www.cdebyte.com/products/ME31-XAAX0440/1#Parameters
Files: https://www.cdebyte.com/products/ME31-XAAX0440/4#Downloads
