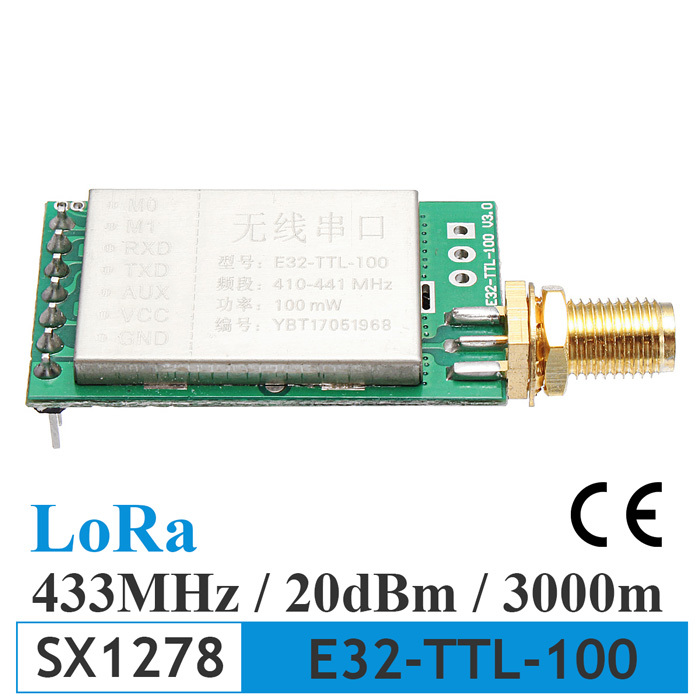

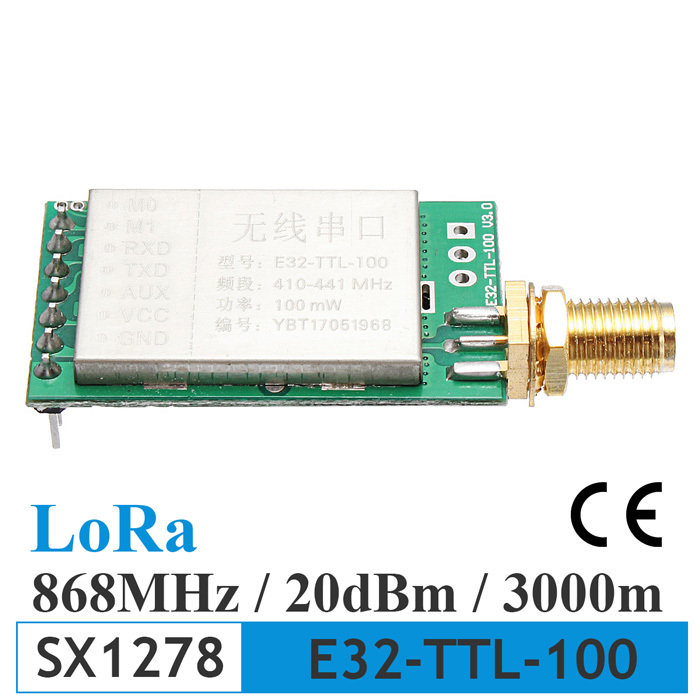

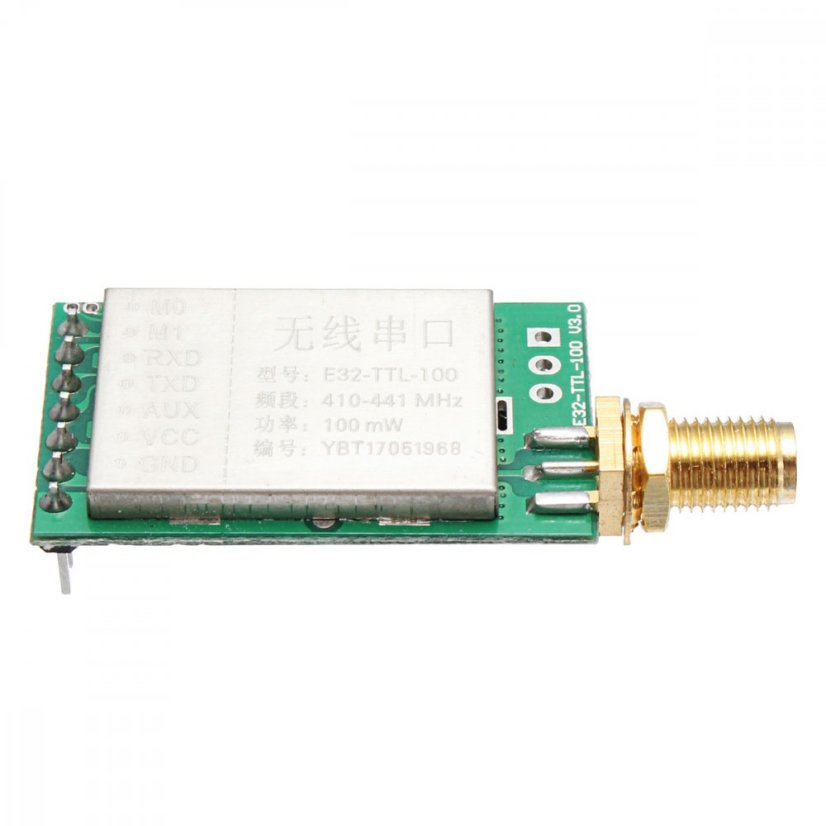

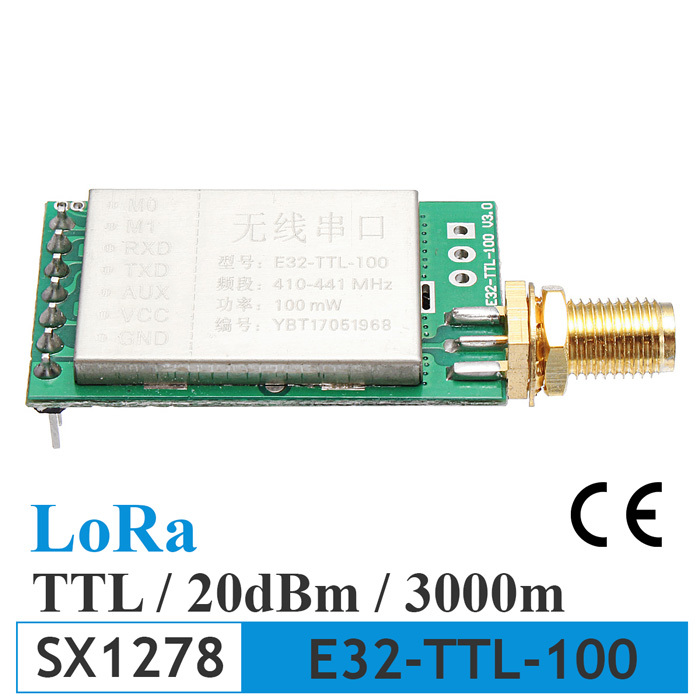

E32-TTL-100 SX1278 20dBm TTL 3km LoRa

Features:

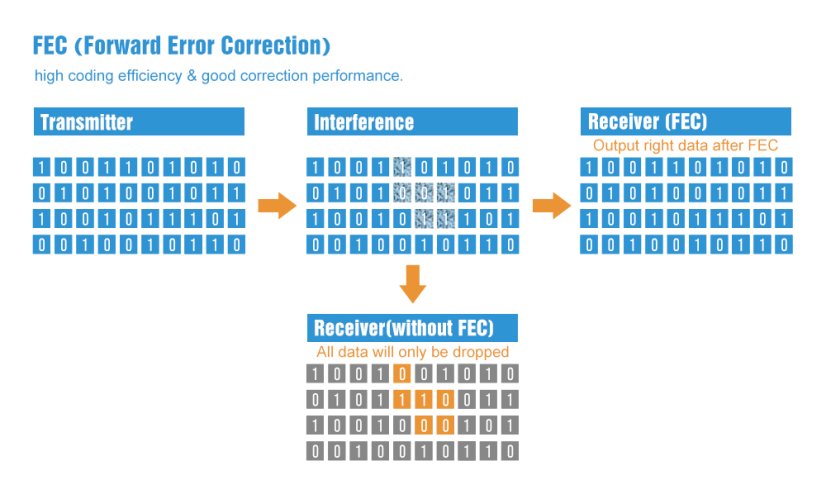

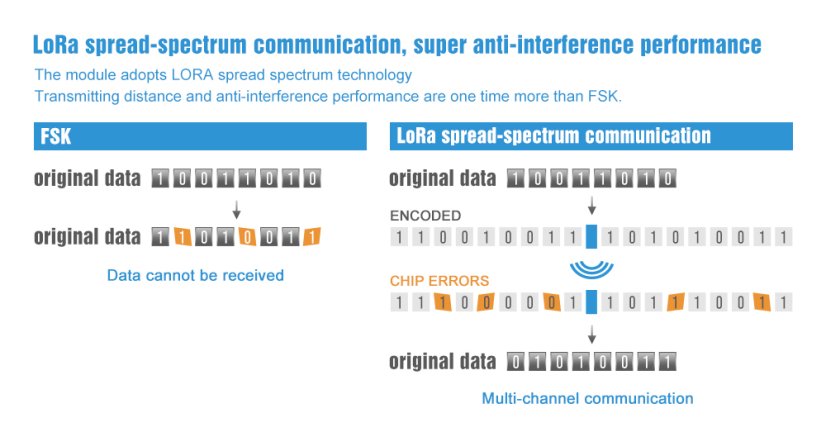

The E32-TTL-100 is a wireless receiver module based on the SX1278 from SEMTECH (can operate as a receiver and transmitter). It utilizes LoRa technology, which provides greater range and signal throughput compared to traditional FSK. The module operates with an FEC algorithm that ensures protection against interference.

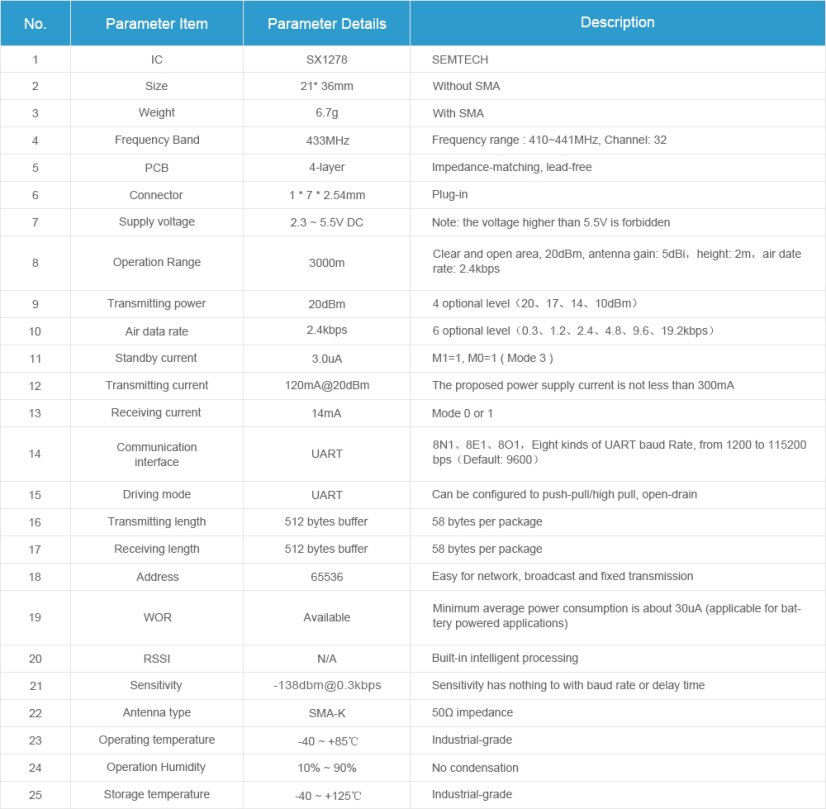

Parameters: E32-TTL-100

• Model: E32-TTL-100

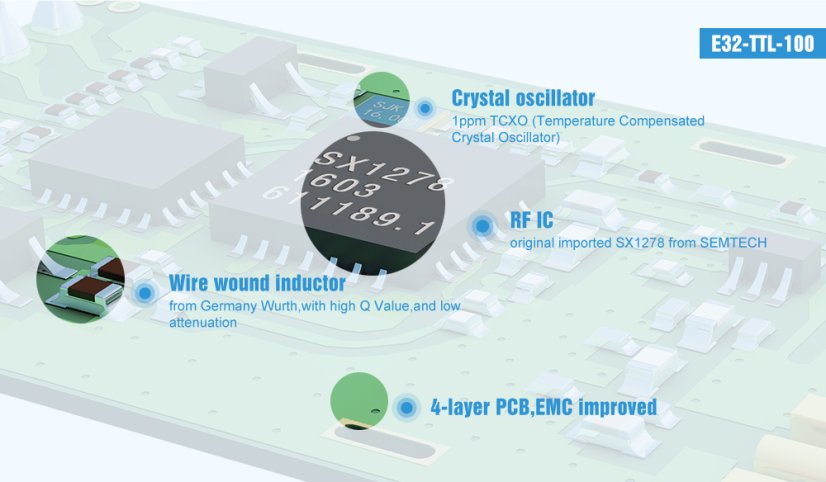

• Chip: SEMTECH SX1278
• Transmission distance: 3,000m (max)
• Maximum output power: 2dB (100mW)
• Transmission rate: 2.4Kbps
• Operating frequency: 433MHz / 868MHz / 915T20D
• Communication interface: UART/TTL
• Power supply: 2.3V-5.5V DC
• Communication level: 5.2V (max)

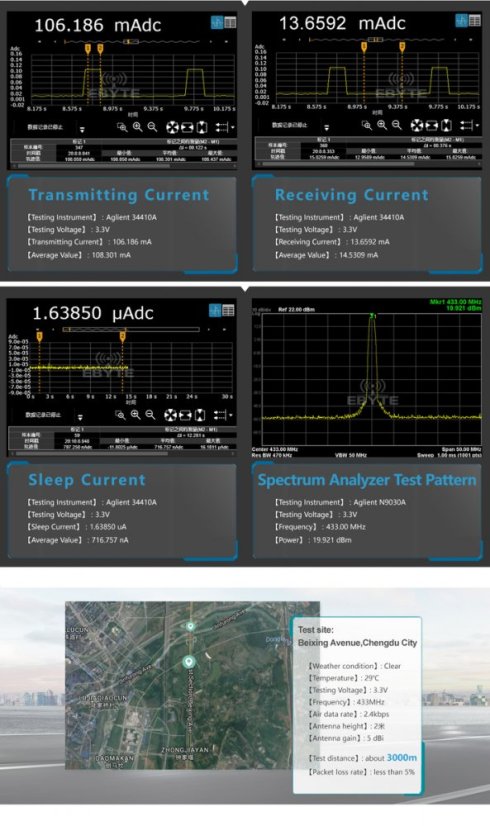

• Transmitting current: 130mA @ 100m
• Receiving current: 13.5mA @ Mode 0, Mode 1
• Standby current: 2.0uA(M1=1,M1=0)
• Payload length: 256Byte
• Receiving length: 256Byte
• RSSI support: Yes
• Operating temperature: -30 ~ +85 Celsius
• Receiver sensitivity: -130dBm @ 1.2Kbps

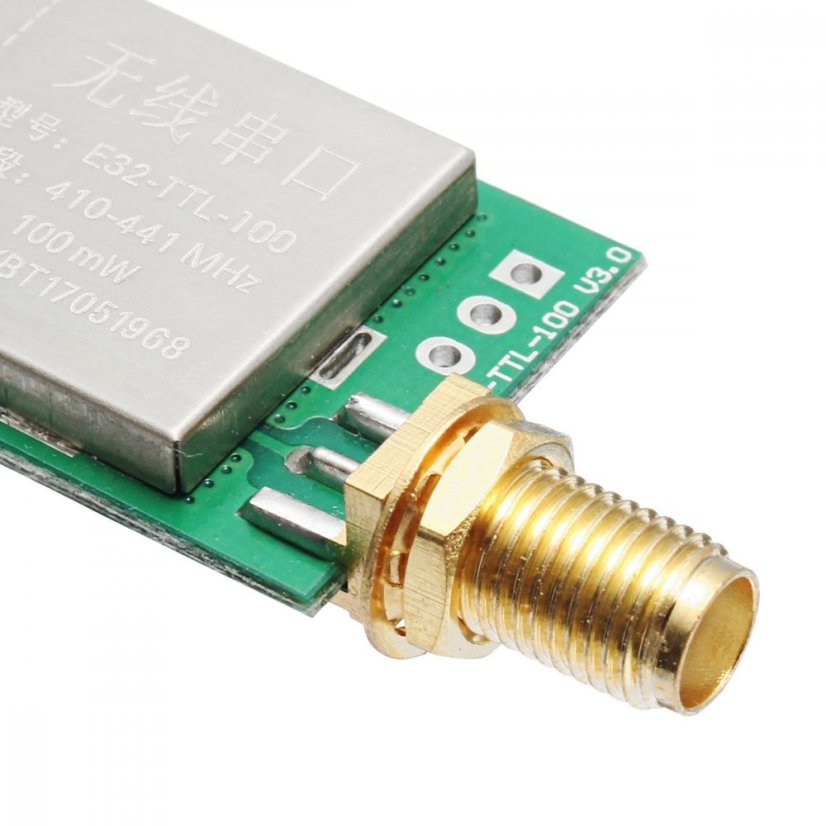

• Type of antenna: standard SMA antenna connector, external thread (NOT included).

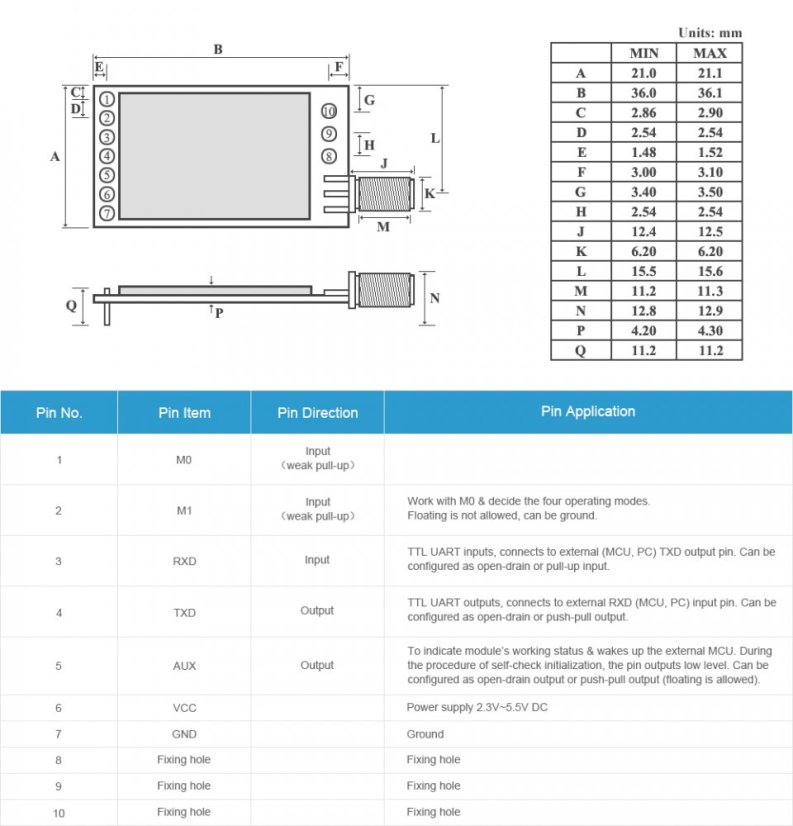

• Module size: 21x36mm

Note:

• The package does not include an antenna. We offer: 433MHz and 868MHz antennas
• TTL/UART to USB module for LoRa: here

Datasheet: http://www.cdebyte.com/en/pdf-down.aspx?id=266

RF setting: http://www.cdebyte.com/en/pdf-down.aspx?id=199
