ED66 Electronic Thermostat 220V/10A with a Range of 550°C
ED66 Electronic Thermostat 220V/10A with a Range of 550°C
The ED66 Electronic Thermostat is designed for cooling and heating applications with a temperature range of -150 to 550°C. More
55,80 EUR
incl. VAT
The ED66 Electronic Thermostat is designed for cooling and heating applications with a temperature range of -150 to 550°C. More
Electronic thermostats are ideal for heating with a temperature range of -150 to 550℃.
(replacement for PCR-100, PCR-110, PCR-300, PCR-310, PCR-410, PCR-300RC, and STC1000/STC-1000)
Technical Specification:
- Measuring Temperature Range: -150 to 550℃.
- Temperature Setting Range: -150 to 550℃.
- Accuracy: ±1℃

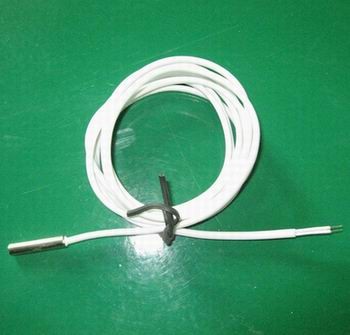

- Temperature Sensor: PT100 (included)
- Compressor: N.O. 10A/250VAC
- Dimensions: 77×35×60mm
- Mounting Hole Dimensions (W, H): 71×29mm
Parameters:
|
Parameter
|
Function
|
Set Range
|
Default
|
|
E1
|
Lower limit of settings
|
－150℃～Set Temperature.
|
－100℃
|
|
E2
|
Upper limit of settings
|
Set Temperature～550℃
|
400℃
|
|
E3
|
Temperature Hysteresis
|
1～99℃
|
10℃
|
|
E4
|
Delay before compressor starts
|
0～10Min
|
0Min
|
|
E5
|
Ambient Temperature Offset
|
－5～5℃
|
0
|
|
C1
|
Temperature Control Mode
|
0=cooling 1=heating
|
1
|
